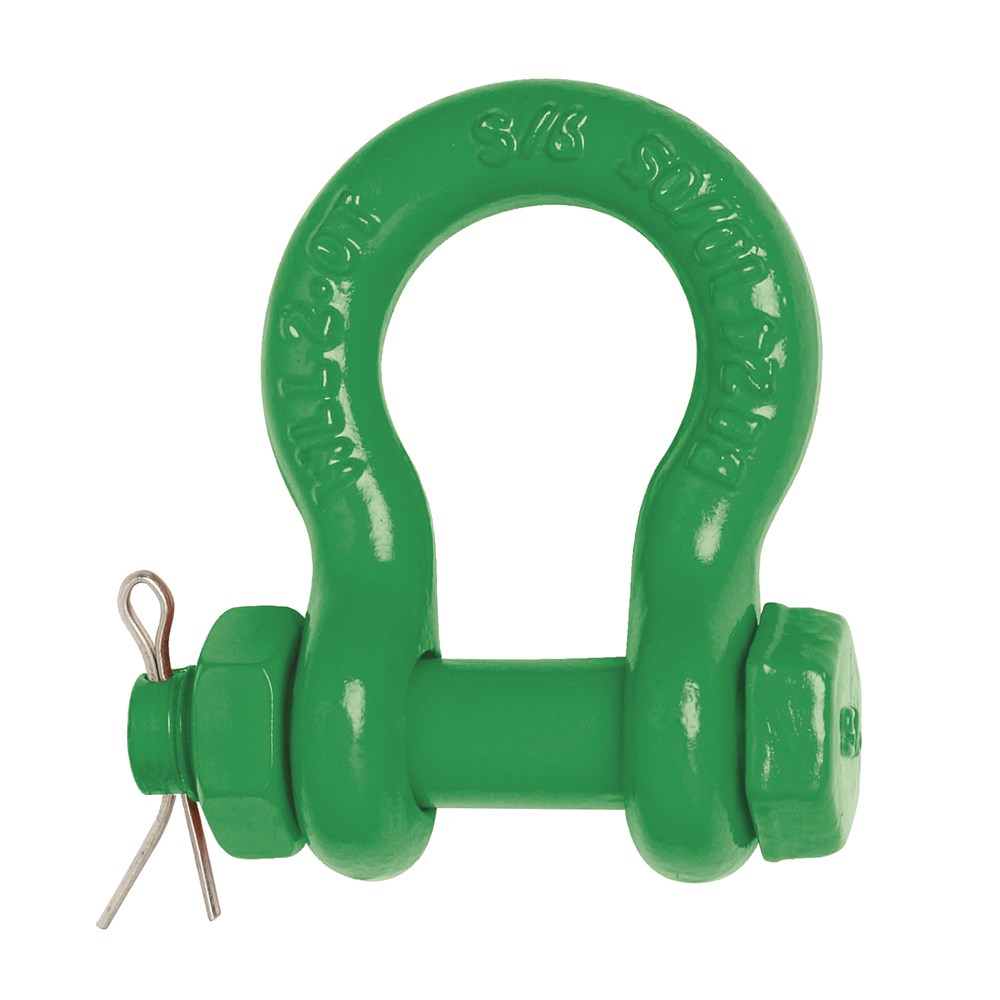

Beaver Colour Coded Safety Pin Bow Shackles 3.2t
244316Mper Each
$11.23 inc GSTTrade $10.11, save $1.12Trade accounts save 10%. Apply with your ABN
| WLL | 3.2t |
| Size | 16mm x 19mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 0.79kg |
| Diameter | 16mm |
| Closing Method | Safety Pin |
| Shackle Colour | Yellow |
| Inside Width (W) | 27mm |
| Pin Diameter (D) | 19mm |
| Width of Bow (B) | 43mm |
| Diameter Boss (F) | 40mm |
| Inside Length (L) | 61mm |
| Working Load Limit | 3.2t |
About this product
The Beaver Colour Coded Safety Pin Bow Shackle 3.2t is a Grade S bow shackle built for lifting jobs where the shackle stays in place for the long haul. This is the 16mm x 19mm size, with a 16mm body, a 19mm safety pin and a 3.2t working load limit. The bolt, nut and cotter arrangement stops the pin backing out if the load slides and rotates it, which is where a screw pin can quietly undo itself.
Inside length is 61mm with 27mm of inside width and a 43mm bow, so you get room for slings, eyes and hooks without crowding. It weighs 0.79kg. The yellow colour coding matches the 3.2t rating, so crews can pick the right size out of the bin at a glance. Each shackle is marked with WLL, grade, size and batch ID, and complies to AS 2741.
Common questions
- what colour is a 3.2t beaver shackle
- Yellow. Beaver colour codes the range by working load limit, so the yellow body tells you it is the 3.2t shackle before you read the stamp.
- beaver 3.2t bow shackle dimensions
- It is the 16mm x 19mm size: 16mm body diameter, 19mm pin, 27mm inside width, 61mm inside length, 43mm bow width and 40mm boss diameter.
- safety pin vs screw pin shackle which one do i need
- Use the safety pin version for long-term or permanent set-ups, or anywhere the load can slide along the pin and rotate it. A screw pin suits work you are pulling apart the same day.
Full specifications
| Product Code | Size | WLL | Shackle Colour | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 244313M | 13mm x 16mm | 2t | Green | Grade S | Bow | Safety Pin | 0.44kg |
| 244316M | 16mm x 19mm | 3.2t | Yellow | Grade S | Bow | Safety Pin | 0.79kg |
| 244319M | 19mm x 22mm | 4.7t | Grey | Grade S | Bow | Safety Pin | 1.26kg |
| 244322M | 22mm x 25mm | 6.5t | Brown | Grade S | Bow | Safety Pin | 1.88kg |
| 244325M | 25mm x 29mm | 8.5t | Blue | Grade S | Bow | Safety Pin | 2.78kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 244313M | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 244316M | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 244319M | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 244322M | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 554mm |
| 244325M | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
