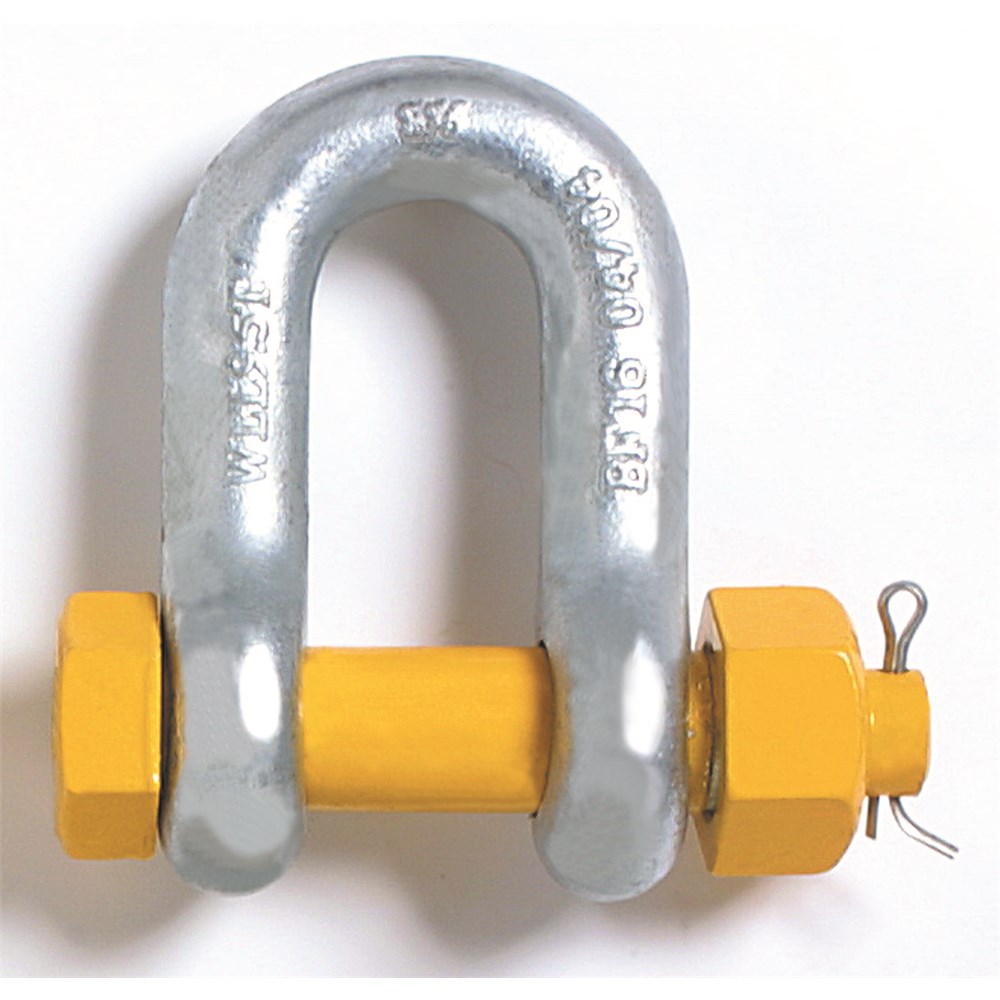

Beaver Yellow Pin Grade S Safety Pin Dee Shackle 12t
243332per Each
$94.15 inc GSTTrade $84.74, save $9.41Trade accounts save 10%. Apply with your ABN
| WLL | 12t |
| Size | 32mm x 35mm |
| Type | Grade S |
| Shape | Dee |
| Weight | 5.26kg |
| Diameter | 32mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 52mm |
| Pin Diameter (D) | 35mm |
| Diameter Boss (F) | 76mm |
| Inside Length (L) | 100mm |
| Working Load Limit | 12t |
About this product
The Beaver Yellow Pin Grade S Safety Pin Dee Shackle 12t is the heavy end of this range, built for long-term and permanent lifting connections where you need the pin to stay put. It carries a 12t working load limit on a 32mm body with a 35mm pin, so it sits well above the smaller sizes in the range when the load gets serious. Inside width is 52mm and inside length 100mm, with a 76mm diameter boss. All up it weighs 5.26kg.
The safety pin arrangement, a nut and split pin setup, means the pin can rotate under load without backing out, which suits gear that vibrates or loads that slide on the pin. Body is hot dipped galvanised and the pin is painted yellow for quick identification in a sling set. Grade S gives the strength to size ratio you want in a dee this size. Complies to AS 2741.
Common questions
- what is the WLL of a 32mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 12t, with a 32mm body diameter and a 35mm pin diameter.
- why use a safety pin shackle instead of a screw pin
- The safety pin lets the pin rotate during loading without working loose, so it suits long-term or permanent applications, vibrating equipment, or loads that slide on the pin.
- is the Beaver yellow pin dee shackle galvanised
- Yes, the body is hot dipped galvanised and the pin is painted yellow so you can pick it out of a sling set quickly.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 2t | Grade S | Dee | Safety Pin | 0.44kg |
| 243316 | 16mm x 19mm | 3.2t | Grade S | Dee | Safety Pin | 0.79kg |
| 243319 | 19mm x 22mm | 4.7t | Grade S | Dee | Safety Pin | 1.26kg |
| 243322 | 22mm x 25mm | 6.5t | Grade S | Dee | Safety Pin | 1.88kg |
| 243325 | 25mm x 29mm | 8.5t | Grade S | Dee | Safety Pin | 2.78kg |
| 243332 | 32mm x 35mm | 12t | Grade S | Dee | Safety Pin | 5.26kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 243316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 243319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 243322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 243325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 243332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
