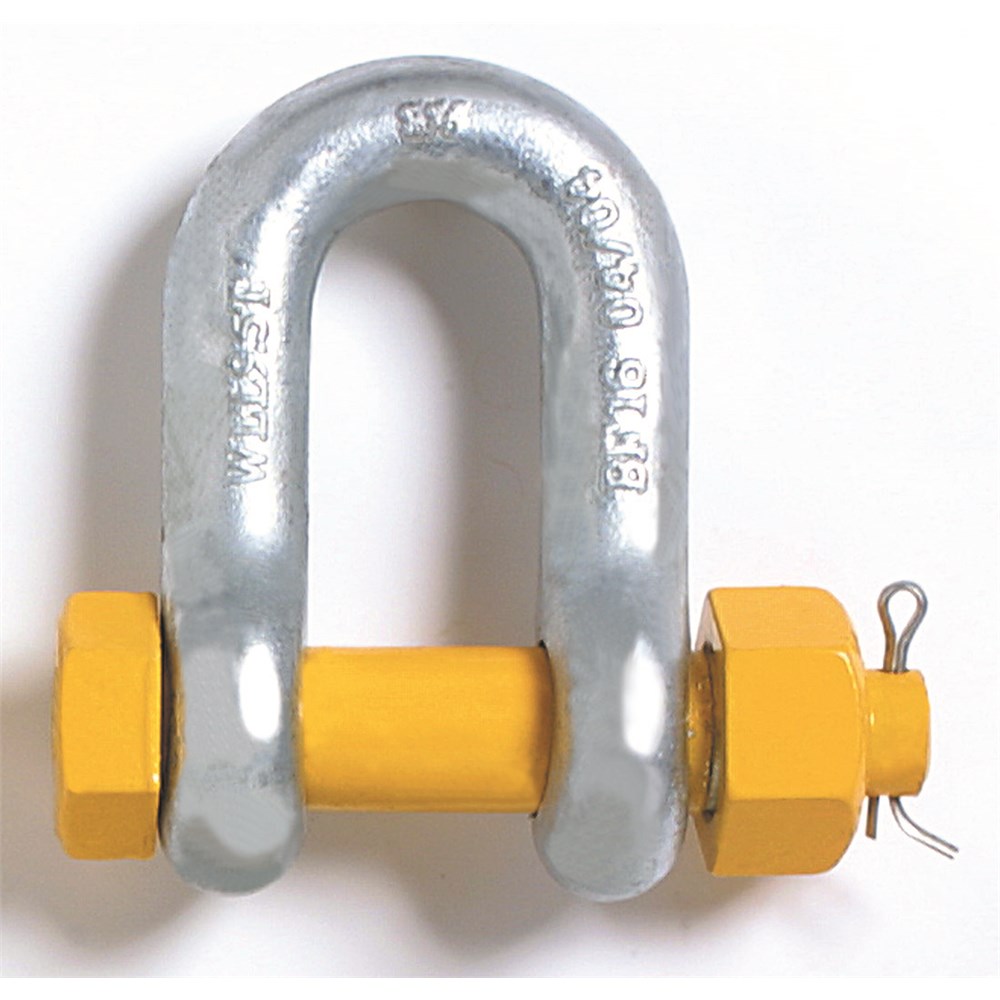

Beaver Yellow Pin Grade S Safety Pin Dee Shackle 8.5t
243325per Each
$33.44 inc GSTTrade $30.10, save $3.34Trade accounts save 10%. Apply with your ABN
| WLL | 8.5t |
| Size | 25mm x 29mm |
| Type | Grade S |
| Shape | Dee |
| Weight | 2.78kg |
| Diameter | 25mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 43mm |
| Pin Diameter (D) | 29mm |
| Diameter Boss (F) | 60mm |
| Inside Length (L) | 81mm |
| Working Load Limit | 8.5t |
About this product
The Beaver Yellow Pin Grade S Safety Pin Dee Shackle 8.5t is a bolt, nut and cotter type dee shackle for long term and permanent lifting connections. At 8.5t working load limit it sits in the upper end of the range, built on a 25mm body with a 29mm pin, 43mm inside width and 81mm inside length. Hot dipped galvanised with the yellow painted pin, and it complies to AS 2741.
The safety pin setup lets the pin rotate under load, so it suits jobs where the load can slide or where gear vibrates and a screw pin might work loose. Grade S steel keeps the 8.5t rating in a shackle that weighs 2.78kg, with a 60mm diameter boss. Check the pin, nut and cotter are all in place before every lift.
Common questions
- what is the WLL of a 25mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 8.5t on a 25mm body with a 29mm pin diameter.
- safety pin vs screw pin shackle which one do i need
- A safety pin shackle is the pick for long term or permanent connections, and for gear that vibrates, because the nut and cotter stop the pin dislodging. It also lets the pin rotate when the load slides.
- is the beaver yellow pin dee shackle galvanised
- Yes, it is hot dipped galvanised with a yellow painted pin.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 2t | Grade S | Dee | Safety Pin | 0.44kg |
| 243316 | 16mm x 19mm | 3.2t | Grade S | Dee | Safety Pin | 0.79kg |
| 243319 | 19mm x 22mm | 4.7t | Grade S | Dee | Safety Pin | 1.26kg |
| 243322 | 22mm x 25mm | 6.5t | Grade S | Dee | Safety Pin | 1.88kg |
| 243325 | 25mm x 29mm | 8.5t | Grade S | Dee | Safety Pin | 2.78kg |
| 243332 | 32mm x 35mm | 12t | Grade S | Dee | Safety Pin | 5.26kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 243316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 243319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 243322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 243325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 243332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
