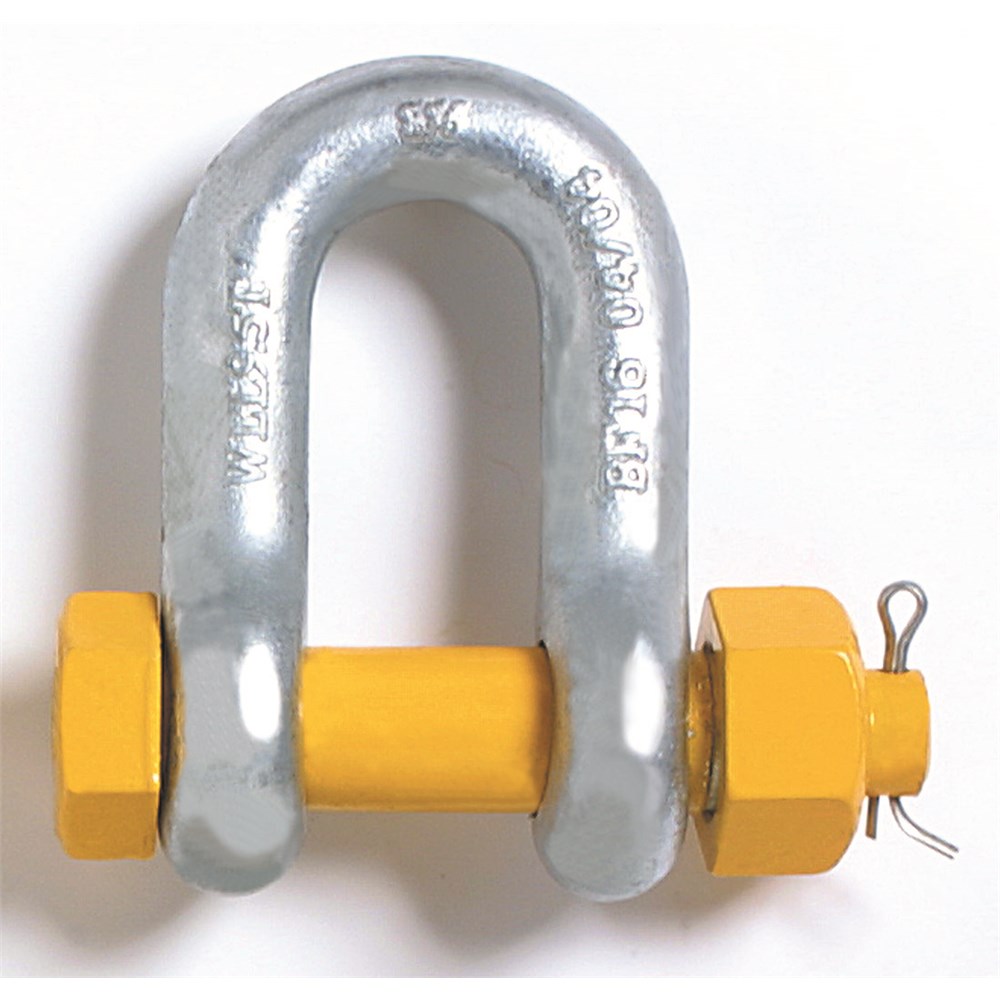

Beaver Yellow Pin Grade S Safety Pin Dee Shackle 6.5t
243322per Each
$24.50 inc GSTTrade $22.05, save $2.45Trade accounts save 10%. Apply with your ABN
| WLL | 6.5t |
| Size | 22mm x 25mm |
| Type | Grade S |
| Shape | Dee |
| Weight | 1.88kg |
| Diameter | 22mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Diameter Boss (F) | 54mm |
| Inside Length (L) | 71mm |
| Working Load Limit | 6.5t |
About this product
The Beaver Yellow Pin Grade S Safety Pin Dee Shackle 6.5t is a bolt, nut and cotter dee shackle for lifting connections you intend to leave in place. At 22mm x 25mm it sits in the middle of the range, carrying a 6.5t working load limit through a 22mm body and a 25mm pin, and weighing 1.88kg in the hand. Inside width is 37mm with an inside length of 71mm, and the diameter boss measures 54mm.
Hot dipped galvanised with the yellow painted pin, so it is easy to pick out of a box of gear on site. The safety pin suits long term or permanent rigging, gear that vibrates, and loads that may slide on the pin and cause rotation, because the pin cannot work loose the way a screw pin can. Grade S steel keeps the size down for the rating. Complies to AS 2741.
Common questions
- what is the WLL of a 22mm dee shackle
- This Beaver Grade S dee shackle is rated to a 6.5t working load limit, with a 22mm body diameter and a 25mm pin diameter.
- safety pin vs screw pin shackle which one do i need
- A safety pin shackle uses a bolt, nut and cotter, so it stays secure in long term or permanent installs, on gear that vibrates, and where the load may slide and rotate on the pin. A screw pin is better suited to connections you break down often.
- is the beaver yellow pin dee shackle galvanised
- Yes, it is hot dipped galvanised with a yellow painted pin for easy identification.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 2t | Grade S | Dee | Safety Pin | 0.44kg |
| 243316 | 16mm x 19mm | 3.2t | Grade S | Dee | Safety Pin | 0.79kg |
| 243319 | 19mm x 22mm | 4.7t | Grade S | Dee | Safety Pin | 1.26kg |
| 243322 | 22mm x 25mm | 6.5t | Grade S | Dee | Safety Pin | 1.88kg |
| 243325 | 25mm x 29mm | 8.5t | Grade S | Dee | Safety Pin | 2.78kg |
| 243332 | 32mm x 35mm | 12t | Grade S | Dee | Safety Pin | 5.26kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 243316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 243319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 243322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 243325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 243332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
