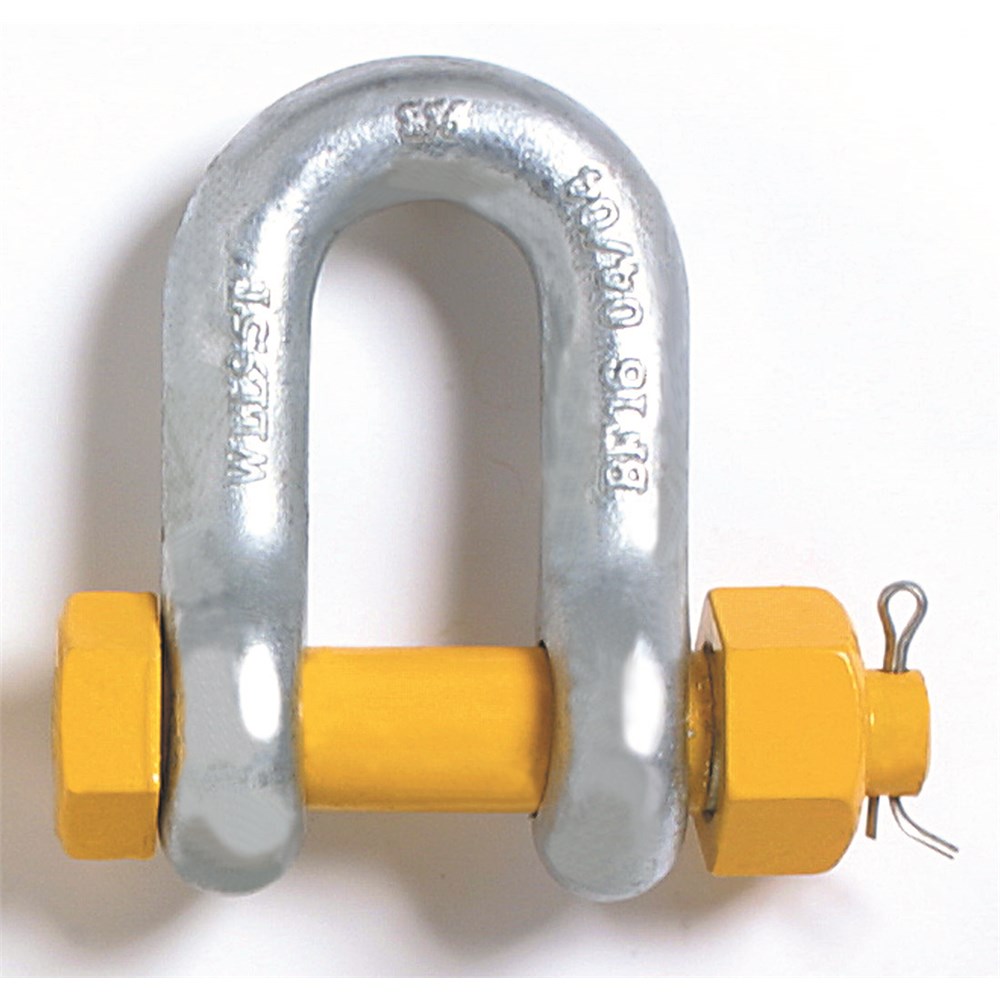

Beaver Yellow Pin Grade S Safety Pin Dee Shackle 4.7t
243319per Each
$16.19 inc GSTTrade $14.57, save $1.62Trade accounts save 10%. Apply with your ABN
| WLL | 4.7t |
| Size | 19mm x 22mm |
| Type | Grade S |
| Shape | Dee |
| Weight | 1.26kg |
| Diameter | 19mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 32mm |
| Pin Diameter (D) | 22mm |
| Diameter Boss (F) | 48mm |
| Inside Length (L) | 60mm |
| Working Load Limit | 4.7t |
About this product
The Beaver Yellow Pin Grade S Safety Pin Dee Shackle 4.7t is a bolt, nut and cotter style dee shackle for long-term and permanent lifting connections. This size runs a 19mm body with a 22mm pin diameter, giving a 4.7t working load limit at 1.26kg, which puts it in the middle of the range for general rigging and static load points. Inside width is 32mm and inside length is 60mm, with a 48mm diameter boss.
Grade S steel keeps the strength to size ratio high, and the hot dipped galvanised finish with its yellow painted pin makes it easy to pick out of a shackle bin. The safety pin lets the pin rotate under load, so it suits jobs where the load slides on the pin or where gear vibrates and a screw pin could work loose. Complies to AS 2741.
Common questions
- what is the WLL of a 19mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 4.7t, with a 19mm body diameter and a 22mm pin.
- beaver safety pin vs screw pin shackle
- The safety pin version uses a bolt, nut and cotter so the pin cannot dislodge under vibration, and it allows the pin to rotate under load. Screw pin types are better suited to short-term connections.
- are beaver yellow pin dee shackles galvanised
- Yes, they are hot dipped galvanised with a yellow painted pin for easy identification on site.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 2t | Grade S | Dee | Safety Pin | 0.44kg |
| 243316 | 16mm x 19mm | 3.2t | Grade S | Dee | Safety Pin | 0.79kg |
| 243319 | 19mm x 22mm | 4.7t | Grade S | Dee | Safety Pin | 1.26kg |
| 243322 | 22mm x 25mm | 6.5t | Grade S | Dee | Safety Pin | 1.88kg |
| 243325 | 25mm x 29mm | 8.5t | Grade S | Dee | Safety Pin | 2.78kg |
| 243332 | 32mm x 35mm | 12t | Grade S | Dee | Safety Pin | 5.26kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 243316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 243319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 243322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 243325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 243332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
