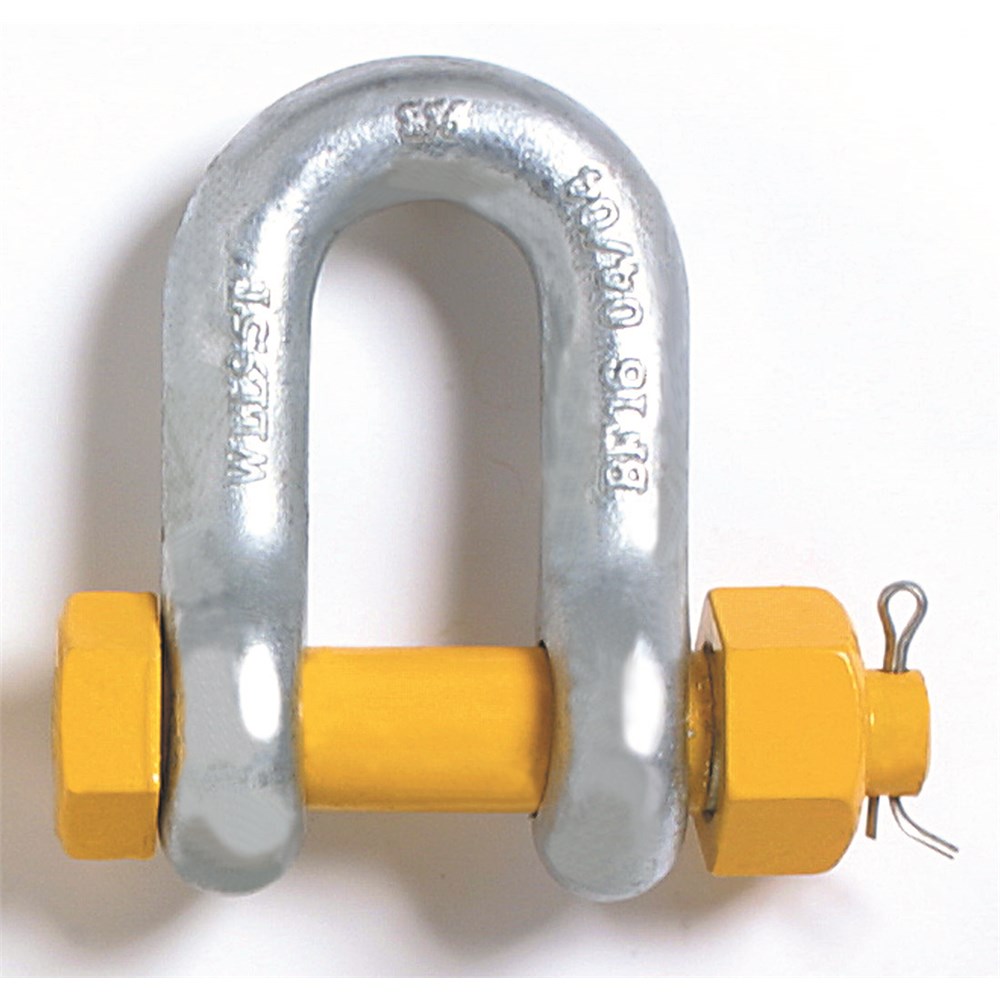

Beaver Yellow Pin Grade S Safety Pin Dee Shackle 2t
243313per Each
$6.30 inc GSTTrade $5.67, save $0.63Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| Size | 13mm x 16mm |
| Type | Grade S |
| Shape | Dee |
| Weight | 0.44kg |
| Diameter | 13mm |
| Closing Method | Safety Pin |
| Inside Width (W) | 21mm |
| Pin Diameter (D) | 16mm |
| Diameter Boss (F) | 33mm |
| Inside Length (L) | 41mm |
| Working Load Limit | 2t |
About this product
The Beaver Yellow Pin Grade S Safety Pin Dee Shackle 2t is a galvanised dee shackle with a bolt, nut and cotter pin, built for lifting connections you intend to leave in place. At 13mm body with a 16mm pin, it carries a 2t working load limit and weighs 0.44kg, so it is an easy size to handle on rigging gear that gets made up once and stays assembled. Inside width is 21mm, inside length 41mm, and the diameter boss measures 33mm. Complies to AS 2741.
The safety pin lets the pin rotate under load, which makes this one the pick where a load may slide on the pin or where gear vibrates in service. Hot dipped galvanised body with the yellow painted pin for quick identification on site. Grade S gives good strength for the size, and the dee shape keeps the load in line rather than spread across the bow. Check the pin threads and cotter before each lift.
Common questions
- what is the WLL of a 13mm dee shackle
- This Beaver Grade S dee shackle is rated to a 2t working load limit, with a 13mm body and a 16mm pin diameter.
- safety pin vs screw pin dee shackle which one do I need
- Go with the safety pin version for long-term or permanent lifting applications, or where vibration could work a screw pin loose. The safety pin also allows the pin to rotate during loading.
- are beaver yellow pin dee shackles galvanised
- Yes, the body is hot dipped galvanised and the pin is painted yellow so it is easy to pick out in a rigging kit.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 2t | Grade S | Dee | Safety Pin | 0.44kg |
| 243316 | 16mm x 19mm | 3.2t | Grade S | Dee | Safety Pin | 0.79kg |
| 243319 | 19mm x 22mm | 4.7t | Grade S | Dee | Safety Pin | 1.26kg |
| 243322 | 22mm x 25mm | 6.5t | Grade S | Dee | Safety Pin | 1.88kg |
| 243325 | 25mm x 29mm | 8.5t | Grade S | Dee | Safety Pin | 2.78kg |
| 243332 | 32mm x 35mm | 12t | Grade S | Dee | Safety Pin | 5.26kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 243313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 243316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 243319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 243322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 243325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 243332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
