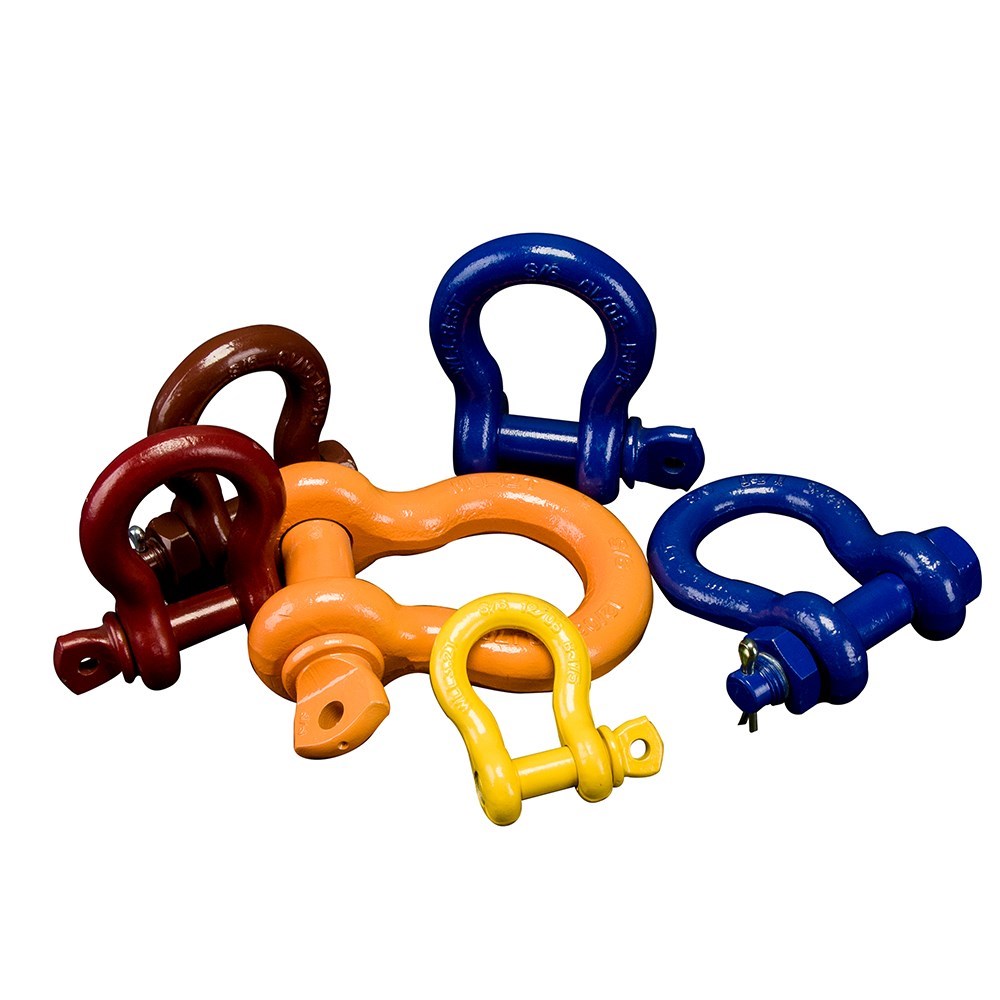

Beaver Colour Coded Screw Pin Bow Shackles 6.5t
242322Mper Each
$21.11 Trade inc GST$23.45 without a trade accountTrade accounts save 10% — apply with your ABN
| WLL | 6.5t |
| Size | 22mm x 25mm |
| Diameter | 22mm |
| Shackle Colour | Brown |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Width of Bow (B) | 58mm |
| Diameter Boss (e) | 54mm |
| Inside Length (L) | 84mm |
| Working Load Limit | 6.5t |
Full specifications
| Product Code | Size | WLL | Shackle Colour |
|---|---|---|---|
| 242310M | 10mm x 11mm | 1t | Violet |
| 242313M | 13mm x 16mm | 2t | Green |
| 242316M | 16mm x 19mm | 3.2t | Yellow |
| 242319M | 19mm x 22mm | 4.7t | Grey |
| 242322M | 22mm x 25mm | 6.5t | Brown |
| 242325M | 25mm x 29mm | 8.5t | Blue |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) | Width of Bow (B) |
|---|---|---|---|---|---|---|---|
| 242310M | 10mm x 11mm | 10mm | 11mm | 17mm | 37mm | 25mm | 26mm |
| 242313M | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 242316M | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 40mm | 43mm |
| 242319M | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 48mm | 51mm |
| 242322M | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 54mm | 58mm |
| 242325M | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 60mm | 68mm |
