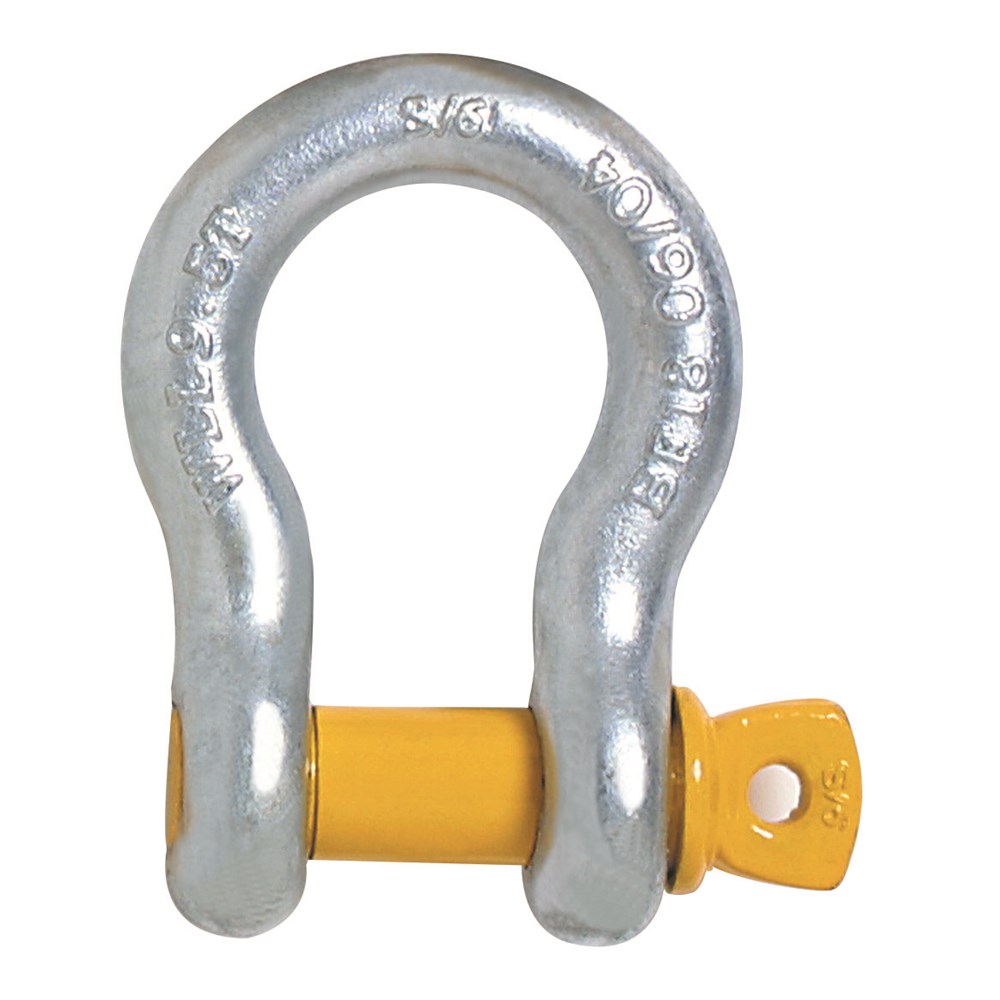

Beaver Screw Pin Anchor Bow Shackle 6.5t
242322per Each
$22.61 inc GSTTrade $20.35, save $2.26Trade accounts save 10%. Apply with your ABN
| WLL | 6.50t |
| Size | 22mm x 25mm |
| Type | Grade S |
| Shape | Bow |
| Weight | 1.65kg |
| Diameter | 22mm |
| Carton QTY | 15 |
| Closing Method | Screw |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Width of Bow (B) | 58mm |
| Diameter Boss (F) | 54mm |
| Inside Length (L) | 84mm |
| Working Load Limit | 6.5t |
About this product
The Beaver Screw Pin Anchor Bow Shackle 6.5t is a rated bow shackle for lifting and towing jobs where the connection comes apart again at the end of the shift. This size runs a 22mm body with a 25mm screw pin, giving 6.5t working load limit through a 37mm inside width and 84mm inside length. The wide 58mm bow suits multi-leg slings and round slings that need room to sit without pinching.
Grade S steel keeps the weight down at 1.65kg for the strength on offer, which matters when you are carrying a few of them up a ladder. Hot dip galvanised finish handles outdoor and coastal work. Each shackle is marked with WLL, quality grade, size and batch ID or date of manufacture, proof tested to the Australian Standard and complies to AS 2741. Test certificates available on request.
Common questions
- what is the WLL of a 22mm bow shackle
- This Beaver screw pin bow shackle is rated at 6.5t working load limit, with a 22mm body diameter and 25mm pin.
- are screw pin shackles ok for permanent lifting
- Screw pin shackles are mainly for non-permanent applications, so use them where the connection is made and broken regularly rather than left in place.
- is the beaver 6.5t shackle galvanised
- Yes, it is hot dip galvanised for corrosion protection, which suits outdoor and marine-influenced sites.
- what does grade S mean on a shackle
- Grade S indicates a high strength to weight ratio, which is why this 6.5t shackle weighs only 1.65kg and suits lifting, towing and 4WD work.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight | Carton QTY |
|---|---|---|---|---|---|---|---|
| 242305 | 5mm x 6mm | 0.33t | Grade S | Bow | Screw | 0.03kg | 500 |
| 242306 | 6mm x 8mm | 0.50t | Grade S | Bow | Screw | 0.05kg | 400 |
| 242308 | 8mm x 10mm | 0.75t | Grade S | Bow | Screw | 0.09kg | 250 |
| 242310 | 10mm x 11mm | 1.0t | Grade S | Bow | Screw | 0.14kg | 150 |
| 242311 | 11mm x 13mm | 1.50t | Grade S | Bow | Screw | 0.17kg | 100 |
| 242313 | 13mm x 16mm | 2.00t | Grade S | Bow | Screw | 0.33kg | 60 |
| 242316 | 16mm x 19mm | 3.20t | Grade S | Bow | Screw | 0.63kg | 30 |
| 242319 | 19mm x 22mm | 4.70t | Grade S | Bow | Screw | 1.07kg | 20 |
| 242322 | 22mm x 25mm | 6.50t | Grade S | Bow | Screw | 1.65kg | 15 |
| 242325 | 25mm x 29mm | 8.50t | Grade S | Bow | Screw | 2.30kg | 10 |
| 242329 | 29mm x 32mm | 9.5t | Grade S | Bow | Screw | 3.28kg | 6 |
| 242332 | 32mm x 35mm | 12t | Grade S | Bow | Screw | 4.51kg | 4 |
| 242335 | 35mm x 38mm | 13.5t | Grade S | Bow | Screw | 5.43kg | 3 |
| 242338 | 38mm x 41mm | 17t | Grade S | Bow | Screw | 7.89kg | 3 |
| 242344 | 44mm x 51mm | 25t | Grade S | Bow | Screw | 13.40kg | 2 |
| 242351 | 51mm x 57mm | 35t | Grade S | Bow | Screw | 18.85kg | 1 |
| 242363 | 63mm x 70mm | 55t | Grade S | Bow | Screw | 37.86kg | 1 |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Width of Bow (B) | Diameter Boss (F) |
|---|---|---|---|---|---|---|---|
| 242305 | 5mm x 6mm | 5mm | 6mm | 10mm | 22 mm | 15mm | 14mm |
| 242306 | 6mm x 8mm | 6mm | 8mm | 12mm | 29mm | 20mm | 17mm |
| 242308 | 8mm x 10mm | 8mm | 10mm | 13mm | 31mm | 21mm | 21mm |
| 242310 | 10mm x 11mm | 10mm | 11mm | 17mm | 37mm | 26mm | 25mm |
| 242311 | 11mm x 13mm | 11mm | 13mm | 18mm | 43mm | 29mm | 27mm |
| 242313 | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 242316 | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 43mm | 40mm |
| 242319 | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 51mm | 48mm |
| 242322 | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 58mm | 54mm |
| 242325 | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 68mm | 60mm |
| 242329 | 29mm x 32mm | 29mm | 32mm | 46mm | 74mm | 108mm | 67mm |
| 242332 | 32mm x 35mm | 32mm | 35mm | 52mm | 83mm | 119mm | 76mm |
| 242335 | 35mm x 38mm | 35mm | 38mm | 57mm | 92mm | 133mm | 84mm |
| 242338 | 38mm x 41mm | 38mm | 41mm | 60mm | 98mm | 146mm | 92mm |
| 242344 | 44mm x 51mm | 44mm | 51mm | 73mm | 127mm | 178mm | 110mm |
| 242351 | 51mm x 57mm | 51mm | 57mm | 83mm | 146mm | 197mm | 127mm |
| 242363 | 63mm x 70mm | 63mm | 70mm | 105mm | 1184mm | 267mm | 152mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
