what is the WLL of a 10mm bow shackle

This size carries a working load limit of 1t. The body is 10mm with an 11mm diameter pin.

are screw pin shackles ok for lifting

Yes, these are rated shackles suited to lifting and towing, but they are mainly for non-permanent applications where the pin is done up and undone regularly.

beaver grade s shackle what does grade s mean

Grade S indicates a high strength to weight ratio, which is why these shackles suit lifting, towing and 4WD work. This shackle complies to AS 2741 and is proof tested to the Australian Standard.

do screw pin shackles rust outdoors

This shackle is hot dip galvanised for corrosion protection, so it holds up in outdoor and exposed conditions.

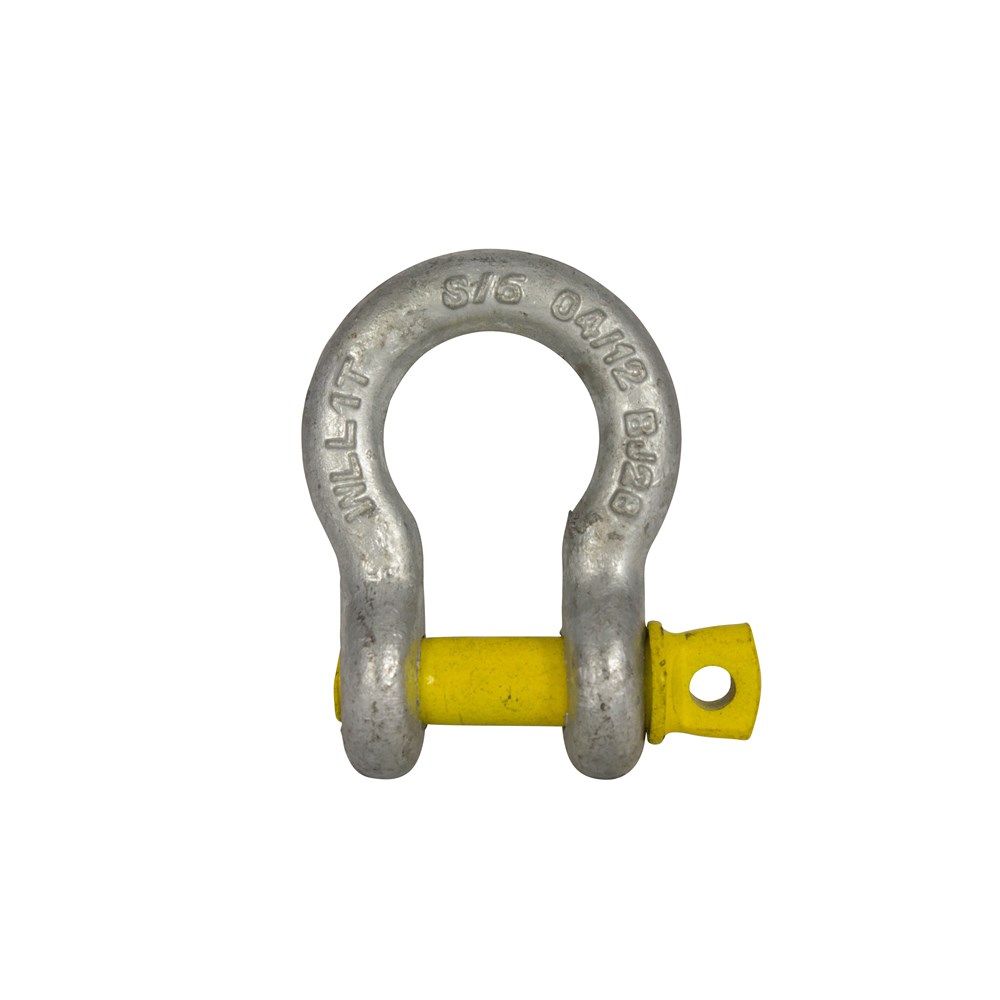

Beaver Screw Pin Anchor Bow Shackle 1t

Name: Beaver Screw Pin Anchor Bow Shackle 1t
Brand: Beaver
SKU: 242310
Price: 3.93 AUD
Availability: InStock

242310per Each

Working Load Limit

$3.93 inc GSTTrade $3.54, save $0.39Trade accounts save 10%. Apply with your ABN

WLL	1.0t
Size	10mm x 11mm
Type	Grade S
Shape	Bow
Weight	0.14kg
Diameter	10mm
Carton QTY	150
Closing Method	Screw
Inside Width (W)	17mm
Pin Diameter (D)	11mm
Width of Bow (B)	26mm
Diameter Boss (F)	25mm
Inside Length (L)	37mm
Working Load Limit	1t

About this product

The Beaver Screw Pin Anchor Bow Shackle 1t is a rated bow shackle for lifting and towing jobs where you need to make and break the connection quickly. It sits at the lighter end of the range, with a 10mm body, an 11mm screw pin and a total weight of 0.14kg, so it is easy to carry a few on the belt without adding bulk to the rig.

Grade S gives a high strength to weight ratio at a 1t working load limit. The bow measures 26mm across with 17mm inside width and 37mm inside length, leaving room for multi-leg slings or thicker soft sling eyes. Hot dip galvanised finish handles outdoor and coastal work. Each shackle is marked with WLL, quality grade, size and batch ID or date of manufacture, proof tested to the Australian Standard and complies to AS 2741. Test certificates are available on request.

Common questions

what is the WLL of a 10mm bow shackle: This size carries a working load limit of 1t. The body is 10mm with an 11mm diameter pin.
are screw pin shackles ok for lifting: Yes, these are rated shackles suited to lifting and towing, but they are mainly for non-permanent applications where the pin is done up and undone regularly.
beaver grade s shackle what does grade s mean: Grade S indicates a high strength to weight ratio, which is why these shackles suit lifting, towing and 4WD work. This shackle complies to AS 2741 and is proof tested to the Australian Standard.
do screw pin shackles rust outdoors: This shackle is hot dip galvanised for corrosion protection, so it holds up in outdoor and exposed conditions.

Full specifications

Product Code	Size	WLL	Type	Shape	Closing Method	Weight	Carton QTY
242305	5mm x 6mm	0.33t	Grade S	Bow	Screw	0.03kg	500
242306	6mm x 8mm	0.50t	Grade S	Bow	Screw	0.05kg	400
242308	8mm x 10mm	0.75t	Grade S	Bow	Screw	0.09kg	250
242310	10mm x 11mm	1.0t	Grade S	Bow	Screw	0.14kg	150
242311	11mm x 13mm	1.50t	Grade S	Bow	Screw	0.17kg	100
242313	13mm x 16mm	2.00t	Grade S	Bow	Screw	0.33kg	60
242316	16mm x 19mm	3.20t	Grade S	Bow	Screw	0.63kg	30
242319	19mm x 22mm	4.70t	Grade S	Bow	Screw	1.07kg	20
242322	22mm x 25mm	6.50t	Grade S	Bow	Screw	1.65kg	15
242325	25mm x 29mm	8.50t	Grade S	Bow	Screw	2.30kg	10
242329	29mm x 32mm	9.5t	Grade S	Bow	Screw	3.28kg	6
242332	32mm x 35mm	12t	Grade S	Bow	Screw	4.51kg	4
242335	35mm x 38mm	13.5t	Grade S	Bow	Screw	5.43kg	3
242338	38mm x 41mm	17t	Grade S	Bow	Screw	7.89kg	3
242344	44mm x 51mm	25t	Grade S	Bow	Screw	13.40kg	2
242351	51mm x 57mm	35t	Grade S	Bow	Screw	18.85kg	1
242363	63mm x 70mm	55t	Grade S	Bow	Screw	37.86kg	1

Product Code	Size	Diameter	Pin Diameter (D)	Inside Width (W)	Inside Length (L)	Width of Bow (B)	Diameter Boss (F)
242305	5mm x 6mm	5mm	6mm	10mm	22 mm	15mm	14mm
242306	6mm x 8mm	6mm	8mm	12mm	29mm	20mm	17mm
242308	8mm x 10mm	8mm	10mm	13mm	31mm	21mm	21mm
242310	10mm x 11mm	10mm	11mm	17mm	37mm	26mm	25mm
242311	11mm x 13mm	11mm	13mm	18mm	43mm	29mm	27mm
242313	13mm x 16mm	13mm	16mm	21mm	48mm	33mm	33mm
242316	16mm x 19mm	16mm	19mm	27mm	61mm	43mm	40mm
242319	19mm x 22mm	19mm	22mm	32mm	72mm	51mm	48mm
242322	22mm x 25mm	22mm	25mm	37mm	84mm	58mm	54mm
242325	25mm x 29mm	25mm	29mm	43mm	95mm	68mm	60mm
242329	29mm x 32mm	29mm	32mm	46mm	74mm	108mm	67mm
242332	32mm x 35mm	32mm	35mm	52mm	83mm	119mm	76mm
242335	35mm x 38mm	35mm	38mm	57mm	92mm	133mm	84mm
242338	38mm x 41mm	38mm	41mm	60mm	98mm	146mm	92mm
242344	44mm x 51mm	44mm	51mm	73mm	127mm	178mm	110mm
242351	51mm x 57mm	51mm	57mm	83mm	146mm	197mm	127mm
242363	63mm x 70mm	63mm	70mm	105mm	1184mm	267mm	152mm

Questions about this equipment? Send us a message and we’ll check it against the job.
