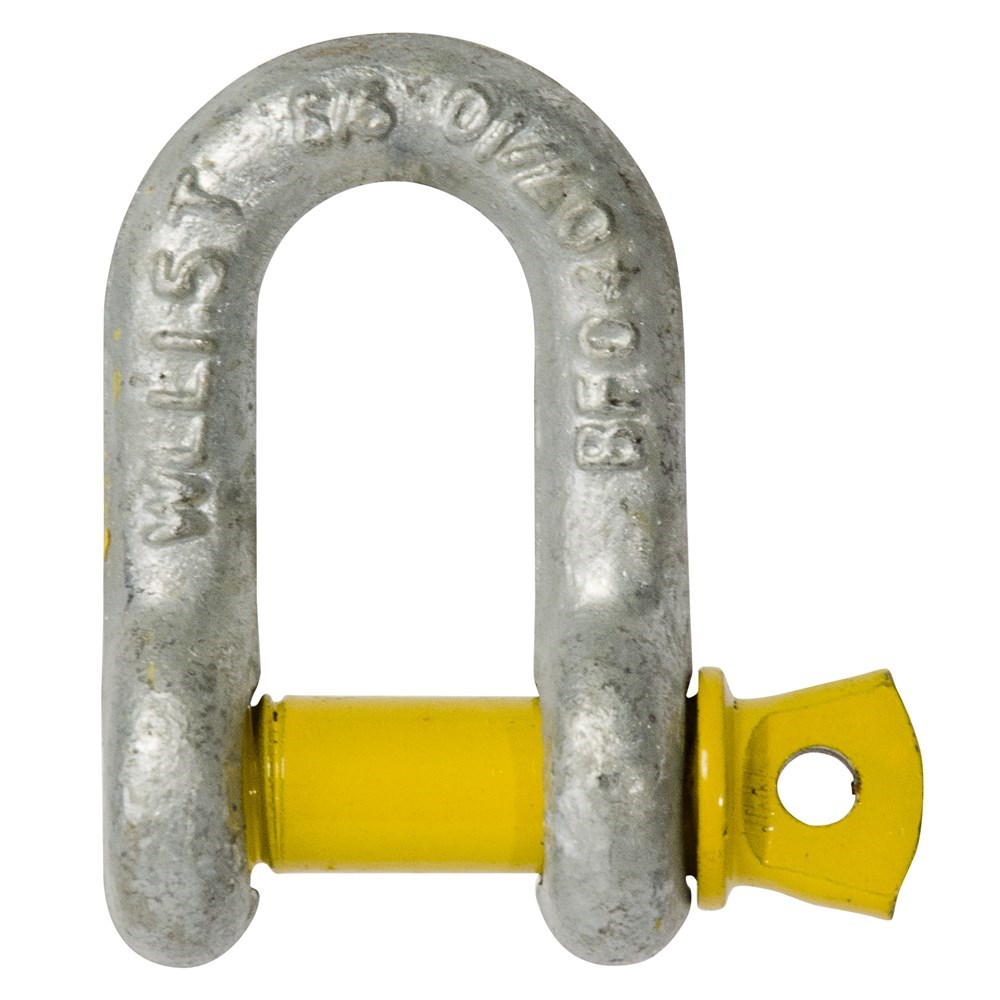

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 35t
241351per Each
$255.48 Trade inc GST$283.87 without a trade accountTrade accounts save 10% — apply with your ABN
| WLL | 35t |
| Size | 51mm x 57mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 51mm |
| Closing Method | Screw |
| Inside Width (W) | 83mm |
| Pin Diameter (D) | 57mm |
| Diameter Boss (e) | 127mm |
| Inside Length (L) | 171mm |
| Working Load Limit | 35t |
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
