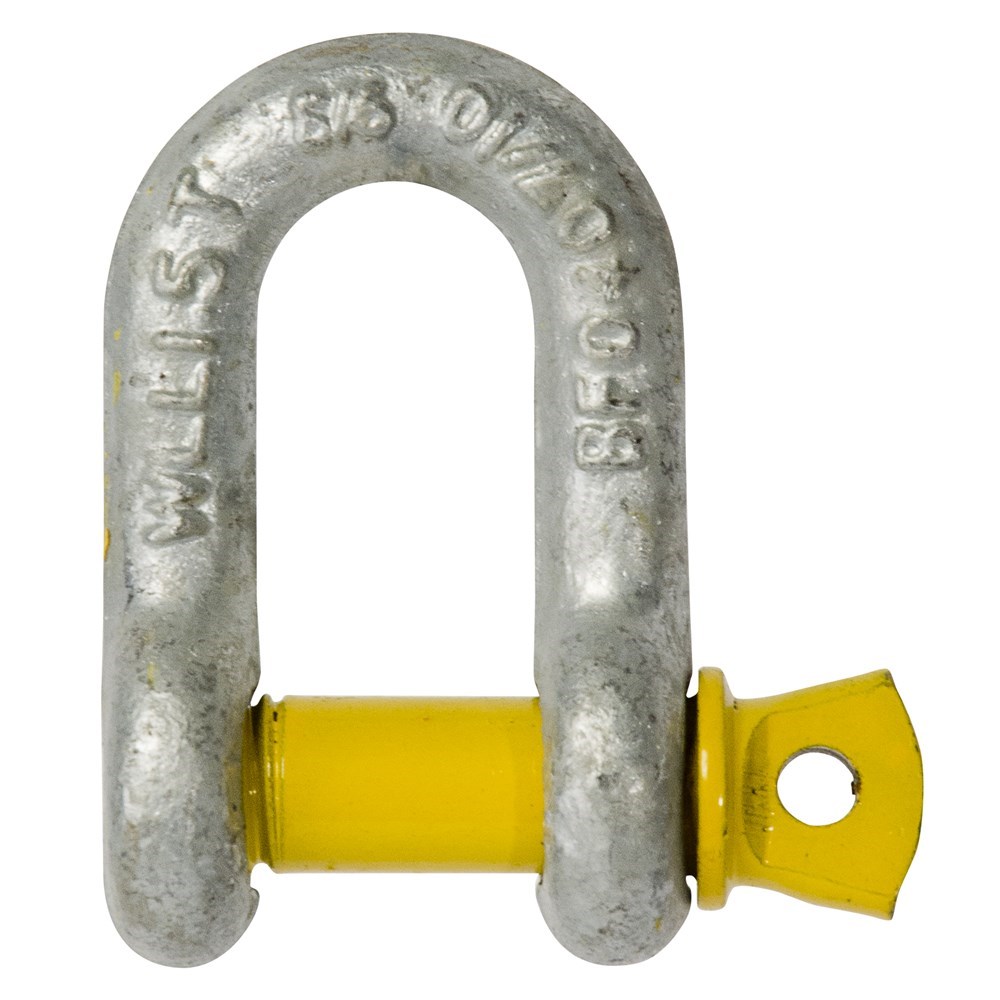

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 25t
241344per Each
$175.88 inc GSTTrade $158.29, save $17.59Trade accounts save 10%. Apply with your ABN
| WLL | 25t |
| Size | 44mm x 51mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 44mm |
| Closing Method | Screw |
| Inside Width (W) | 73mm |
| Pin Diameter (D) | 51mm |
| Diameter Boss (e) | 110mm |
| Inside Length (L) | 146mm |
| Working Load Limit | 25t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 25t is a heavy lift shackle for straight in-line pulls where you need serious capacity in a compact body. It sits at the upper end of the range, with a 25t working load limit, a 44mm body and a 51mm pin. Inside width is 73mm and inside length is 146mm, so it takes big thimbles, chain ends and heavy hooks.
Grade S gives you a high strength to size ratio, which is why these turn up on mine sites, in construction rigging, and on towing and 4WD recovery work. The body is hot dipped galvanised with the familiar yellow painted pin, and the 110mm boss spreads load at the eyes. Complies to AS 2741. Check the pin threads fully home before every lift.
Common questions
- what is the WLL of a 44mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 25t, with a 44mm body diameter and a 51mm pin diameter.
- beaver yellow pin shackle AS 2741
- Yes, the Beaver Yellow Pin Grade S Screw Pin Dee Shackle complies to AS 2741.
- dee shackle vs bow shackle for lifting
- A dee shackle like this one is built for straight in-line loading, so it suits single leg pulls. A bow shackle is the choice when you need to take load from more than one direction.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
