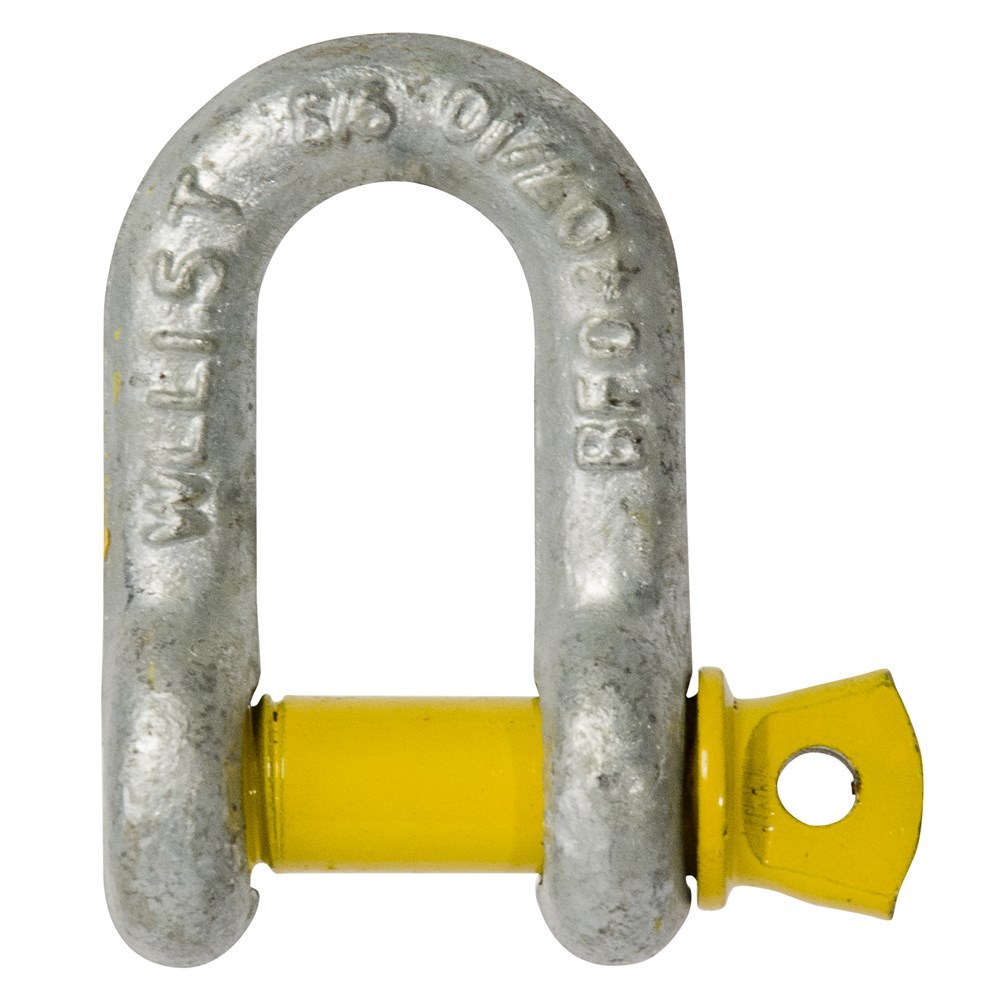

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 17t
241338per Each
$105.37 inc GSTTrade $94.83, save $10.54Trade accounts save 10%. Apply with your ABN
| WLL | 17t |
| Size | 38mm x 41mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 38mm |
| Closing Method | Screw |
| Inside Width (W) | 60mm |
| Pin Diameter (D) | 41mm |
| Diameter Boss (e) | 92mm |
| Inside Length (L) | 124mm |
| Working Load Limit | 17t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 17t is a heavy end-of-range dee shackle for straight-line lifting, towing and recovery work. At 38mm body diameter with a 41mm pin, it carries a 17t working load limit, which puts it well past the mid-size shackles most crews keep on the truck. Inside width is 60mm and inside length 124mm, so it takes thick eyes, big master links and heavy hook throats without pinching.
Grade S steel gives the strength in a body that stays manageable for the rating, with a 92mm boss across the eyes. The finish is hot dipped galvanised with the yellow painted pin, so it stands out in a bin and handles outdoor work on mine sites and construction jobs. The screw pin closes by hand and should be run up fully before any load goes on. Complies to AS 2741.
Common questions
- what is the WLL of a 38mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 17t, with a 38mm body diameter and a 41mm pin.
- beaver yellow pin shackle standard
- It complies to AS 2741. Check the body markings match what you expect before use.
- screw pin or bolt type shackle for lifting
- A screw pin like this one suits lifts where the shackle is fitted and removed often, since it closes by hand. For long-term or permanently installed connections, a bolt type is the usual pick.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
