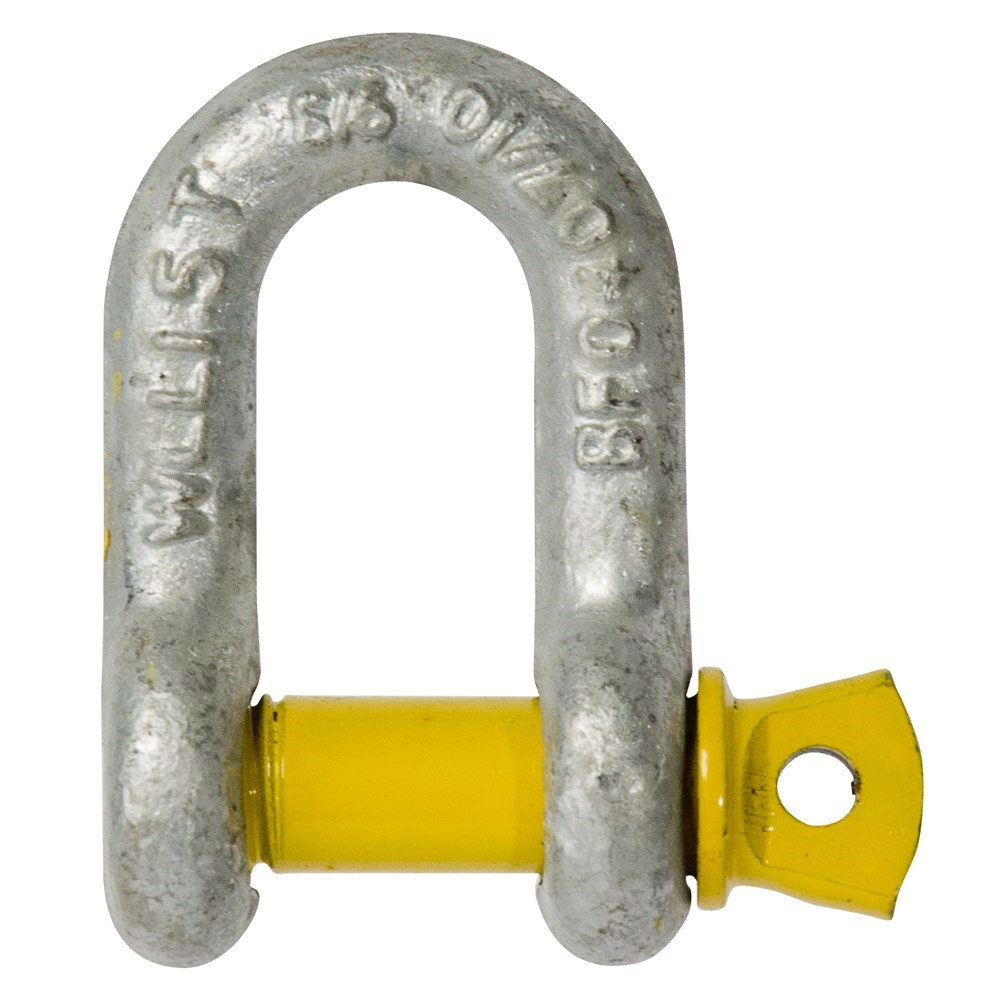

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 13.5t
241335per Each
$109.09 inc GSTTrade $98.18, save $10.91Trade accounts save 10%. Apply with your ABN
| WLL | 13.5t |
| Size | 35mm x 38mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 35mm |
| Closing Method | Screw |
| Inside Width (W) | 57mm |
| Pin Diameter (D) | 38mm |
| Diameter Boss (e) | 84mm |
| Inside Length (L) | 113mm |
| Working Load Limit | 13.5t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 13.5t is a straight-line lifting connector for the heavier end of the range, rated to a 13.5t working load limit on a 35mm body with a 38mm pin. Dee shape keeps the load in line with the pin, so it suits single-leg hook-ups, towing points and 4WD recovery gear where side loading is not in play. Complies to AS 2741.
Inside width is 57mm and inside length 113mm, with an 84mm diameter boss, giving you room for heavy thimbles and thick master links. The body is hot dipped galvanised and the pin is painted yellow, so it stays easy to pick out of a shackle bin and holds up on mine sites and construction jobs. Screw pin closing means quick changeovers by hand, just check the pin is seated fully before every lift.
Common questions
- what is the WLL of a 35mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 13.5t. The body diameter is 35mm with a 38mm pin.
- beaver yellow pin shackle standard
- It complies to AS 2741. The yellow painted pin and Grade S marking make it easy to identify on site.
- dee shackle or bow shackle for lifting
- A dee shackle like this one is for in-line loads on a single leg, since the narrower body keeps the load aligned with the pin. Pick a bow shackle if you need to take multi-leg or angled loads.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
