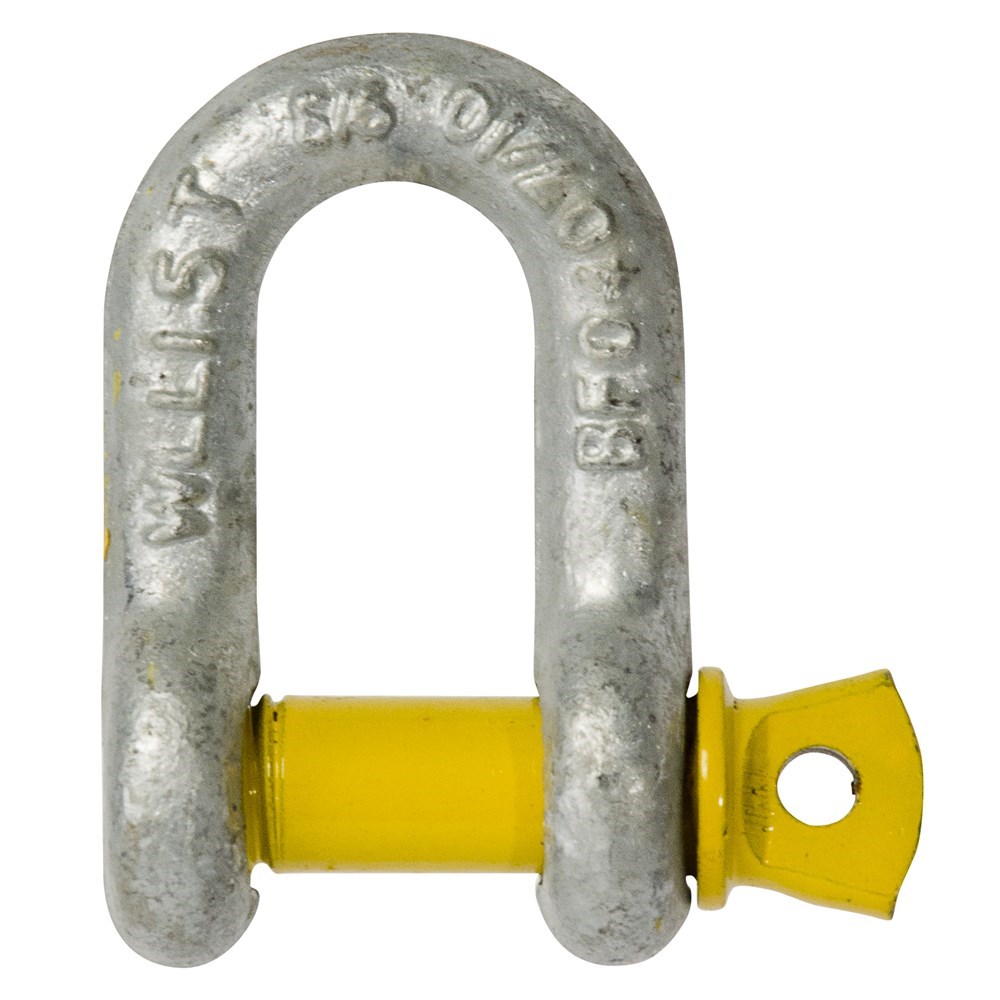

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 9.5t
241329per Each
$49.52 inc GSTTrade $44.57, save $4.95Trade accounts save 10%. Apply with your ABN
| WLL | 9.5t |
| Size | 29mm x 32mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 29mm |
| Closing Method | Screw |
| Inside Width (W) | 46mm |
| Pin Diameter (D) | 32mm |
| Diameter Boss (e) | 67mm |
| Inside Length (L) | 90mm |
| Working Load Limit | 9.5t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 9.5t is a straight-line lifting connector for hooking slings, chain and hardware together on cranes and load-shifting gear. This is the 29mm x 32mm size in the range, carrying a 9.5t working load limit, so it sits at the heavier end where the smaller dees run out of capacity. Inside width is 46mm and inside length 90mm, with a 32mm pin diameter and a 67mm boss.
Being a dee, it keeps the load in line and is not meant for multi-leg pulls the way a bow shackle is. Grade S gives you the strength for lifting and towing work, including 4WD recovery. The body is hot dipped galvanised with the yellow painted pin for quick identification on site. Complies to AS 2741. Check the pin seats fully by hand before every lift, and look over the body for wear, spread or damage.
Common questions
- what is the WLL of a 29mm grade S dee shackle
- This size has a working load limit of 9.5t. It is the 29mm x 32mm shackle in the Beaver Yellow Pin Grade S range.
- beaver yellow pin dee shackle dimensions 9.5t
- Body diameter is 29mm with a 32mm pin, 46mm inside width, 90mm inside length and a 67mm diameter boss.
- dee shackle or bow shackle for lifting
- A dee shackle like this one suits straight-line, single-leg loads. If you need to take multi-leg or angled pulls, a bow shackle is the right choice.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
