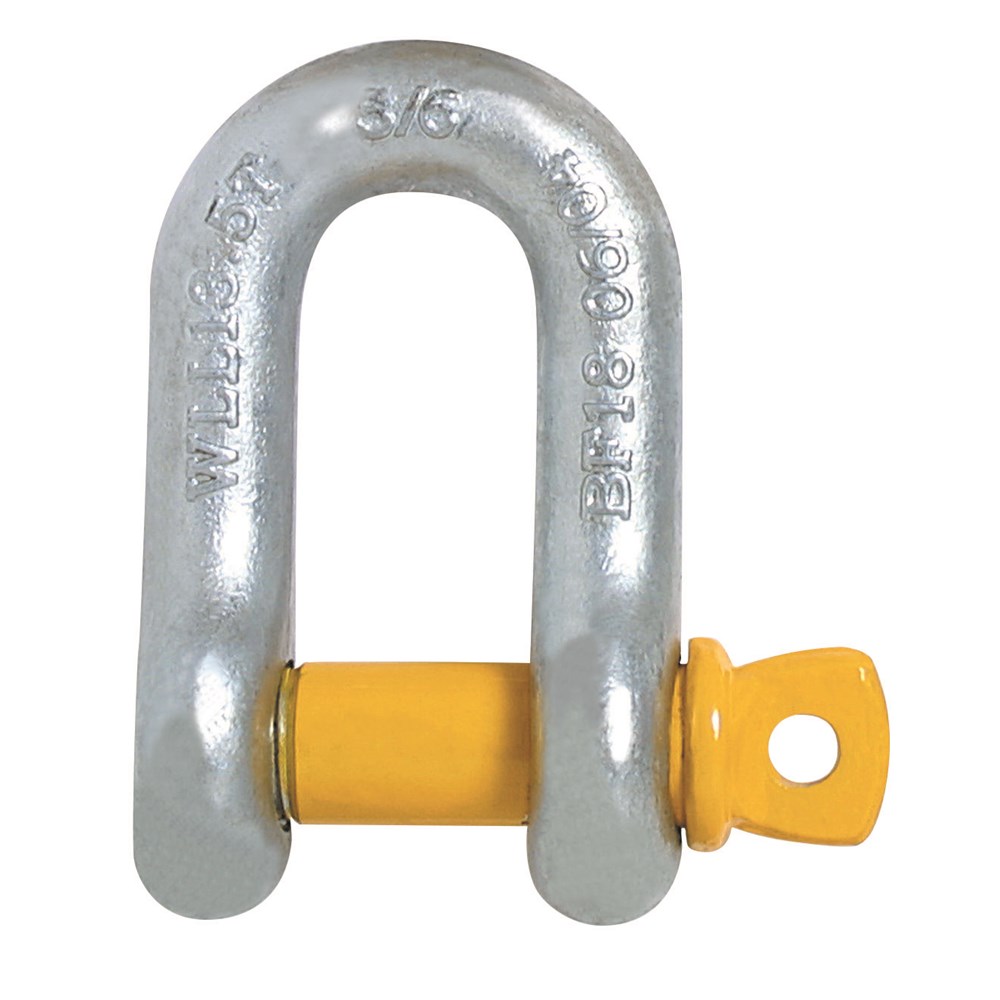

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 6.5t
241322per Each
$21.04 inc GSTTrade $18.94, save $2.10Trade accounts save 10%. Apply with your ABN
| WLL | 6.5t |
| Size | 22mm x 25mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 22mm |
| Closing Method | Screw |
| Inside Width (W) | 37mm |
| Pin Diameter (D) | 25mm |
| Diameter Boss (e) | 54mm |
| Inside Length (L) | 71mm |
| Working Load Limit | 6.5t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 6.5t is a straight-line lifting connector for slings, chains and hooks where the load pulls in one direction. This size runs a 22mm body with a 25mm pin, giving a 6.5t working load limit in a shackle that still fits the hand. Inside width is 37mm and inside length 71mm, so it takes a decent eye or thimble without crowding.
Grade S steel gives high strength for the size, which is why these turn up on mine sites, construction jobs, towing work and 4WD recovery. The body is hot dipped galvanised and the pin is painted yellow, making it easy to pick out of a shackle bin and easy to spot a swapped pin. Diameter boss measures 54mm. Complies to AS 2741. Check the pin seats fully and hand tight before every lift.
Common questions
- What is the WLL of a 22mm Beaver dee shackle?
- This size carries a working load limit of 6.5t. It uses a 22mm body diameter with a 25mm screw pin.
- Is the Beaver yellow pin shackle galvanised?
- Yes, the body is hot dipped galvanised and the pin is painted yellow so it stands out and is easy to identify.
- Dee shackle or bow shackle for lifting?
- A dee shackle like this one suits in-line loading where the pull stays in a single direction. A bow shape is the pick when you need to take multiple sling legs or side loading.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
