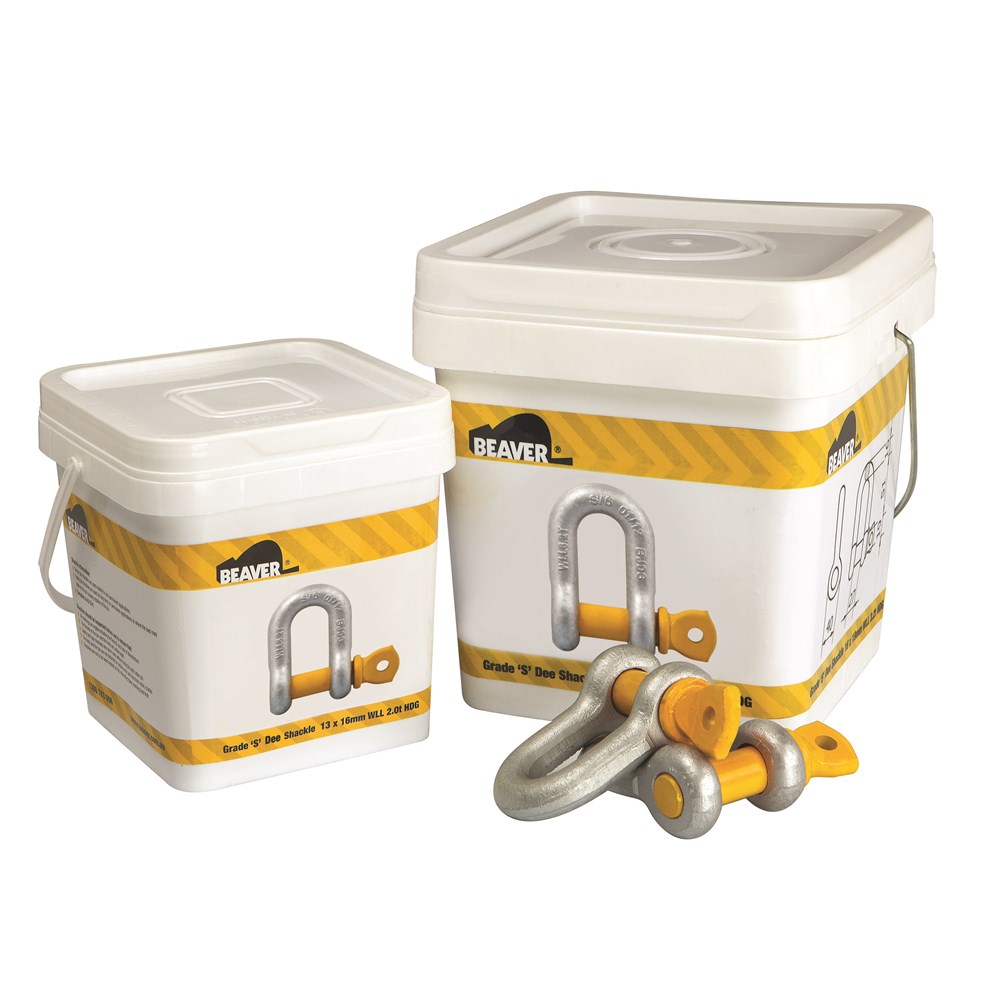

Beaver Hot Dipped Galvanised Screw Pin Dee Shackles (Pail) 2t
241313Pper Pail
$56.22 inc GSTTrade $50.60, save $5.62Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| Size | 13mm x 16mm |
| Diameter | 13mm |
| Bucket Weight | 4.2kg |
| QTY per Bucket | 14 |
| Shackle Colour | Hot Dipped Galvanised |
| Bucket Capacity | 2L |
| Inside Width (W) | 21mm |
| Pin Diameter (D) | 16mm |
| Diameter Boss (e) | 33mm |
| Inside Length (L) | 41mm |
| Working Load Limit | 2t |
About this product
The Beaver Hot Dipped Galvanised Screw Pin Dee Shackle in 2t is the mid-weight option in the range, sized 13mm x 16mm for straight-line lifting where you don't want side loading. Grade S steel gives a high strength to size ratio, so the 13mm body handles a 2t working load limit without the bulk of a bigger shackle. Inside width is 21mm and inside length 41mm, which suits chain, eye bolts and thimbles on smaller slings.
The hot dipped galvanised finish holds up outdoors on mine sites and construction jobs, and the yellow painted pin makes it easy to spot in a kit or on the ground. The 16mm screw pin threads in by hand, so no tools needed for a quick change between lifts. Diameter across the boss is 33mm. Complies to AS 2741.
Common questions
- what is the WLL of a 13mm dee shackle
- This Beaver 13mm screw pin dee shackle is rated to a 2t working load limit. It is Grade S, which gives a high strength to size ratio for its 13mm body.
- are screw pin dee shackles ok for lifting
- Yes, these Grade S dee shackles are suited to lifting work across industries like mining and construction, and they comply to AS 2741. Dee shackles are made for in-line loading, not side loading.
- what does hot dipped galvanised mean on a shackle
- It is a thick zinc coating that helps the shackle stand up to outdoor and wet conditions. On this one the pin is also painted yellow so it stands out in the gear.
Full specifications
| Product Code | Size | WLL | Shackle Colour | Bucket Capacity | QTY per Bucket | Bucket Weight |
|---|---|---|---|---|---|---|
| 241306P | 6mm x 8mm | 0.5t | Hot Dipped Galvanised | 2L | 100 | 2.8kg |
| 241308P | 8mm x 10mm | 0.75t | Hot Dipped Galvanised | 2L | 50 | 3.85kg |
| 241310P | 10mm x 11mm | 1t | Hot Dipped Galvanised | 2L | 30 | 3.9kg |
| 241311P | 11mm x 13mm | 1.5t | Hot Dipped Galvanised | 2L | 20 | 4kg |
| 241313P | 13mm x 16mm | 2t | Hot Dipped Galvanised | 2L | 14 | 4.2kg |
| 241316P | 16mm x 19mm | 3.2t | Hot Dipped Galvanised | 5L | 20 | 11.6kg |
| 241319P | 19mm x 22mm | 4.7t | Hot Dipped Galvanised | 5L | 10 | 10.2kg |
| 241322P | 22mm x 25mm | 6.5t | Hot Dipped Galvanised | 5L | 8 | 11.44kg |
| 241325P | 25mm x 29mm | 8.5t | Hot Dipped Galvanised | 5L | 4 | 8.62kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306P | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308P | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310P | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311P | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313P | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316P | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319P | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322P | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325P | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
