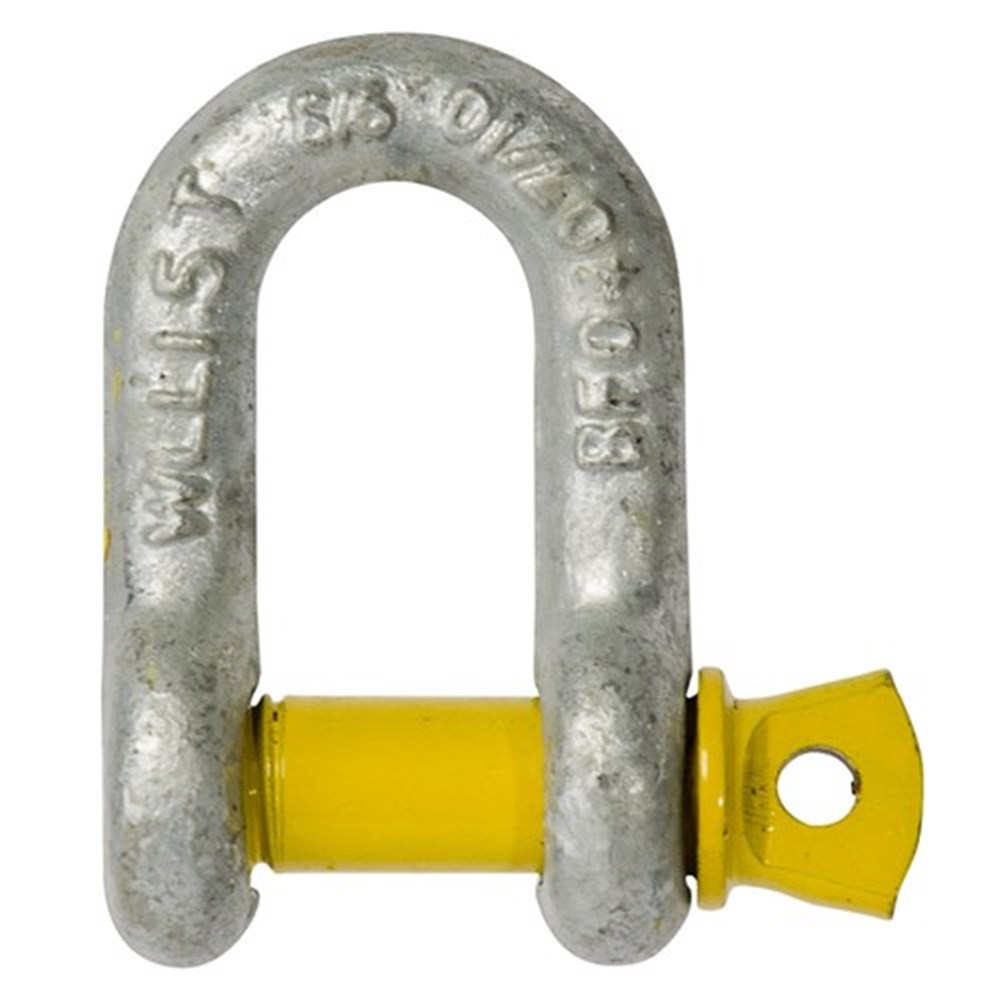

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 2t
241313per Each
$5.74 inc GSTTrade $5.17, save $0.57Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| Size | 13mm x 16mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 13mm |
| Closing Method | Screw |
| Inside Width (W) | 21mm |
| Pin Diameter (D) | 16mm |
| Diameter Boss (e) | 33mm |
| Inside Length (L) | 41mm |
| Working Load Limit | 2t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 2t is a 13mm body shackle for straight in line lifting, towing and general rigging work. At 2t working load limit it sits in the mid range of the size run, handy for smaller chain and wire rope assemblies where a bigger shackle would be overkill. The 16mm screw pin threads in by hand, so you can pin up and break down a hitch without tools.
Dimensions are 13mm x 16mm, with 21mm inside width, 41mm inside length and a 33mm diameter boss, so check your eye or thimble will seat before you order. Grade S gives you good strength for the size and weight. Hot dip galvanised body with the yellow painted pin makes it easy to pick out in a gear box or on the ground. Complies to AS 2741.
Common questions
- what is the WLL of a 13mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 2t. The body is 13mm with a 16mm pin.
- beaver yellow pin dee shackle 2t dimensions
- Inside width is 21mm, inside length is 41mm, pin diameter is 16mm and the diameter boss is 33mm.
- dee shackle or bow shackle for lifting
- A dee shackle like this one suits straight in line loading. If you need to take multiple sling legs or side loading, a bow shackle is the better pick.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
