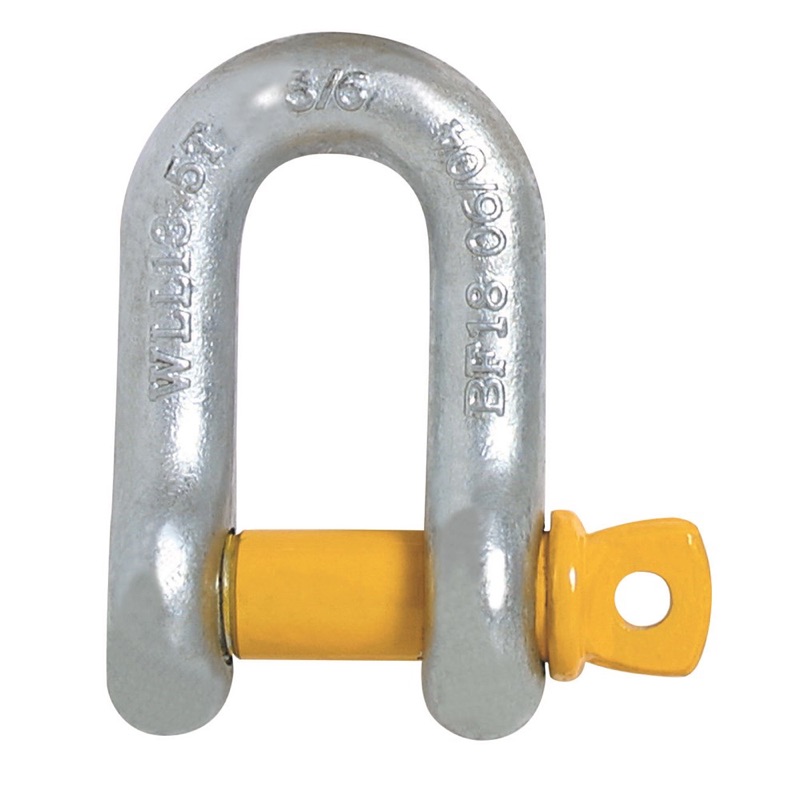

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 0.75t
241308per Each
$2.74 inc GSTTrade $2.47, save $0.27Trade accounts save 10%. Apply with your ABN
| WLL | 0.75t |
| Size | 8mm x 10mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 8mm |
| Closing Method | Screw |
| Inside Width (W) | 13mm |
| Pin Diameter (D) | 10mm |
| Diameter Boss (e) | 21mm |
| Inside Length (L) | 26mm |
| Working Load Limit | 0.75t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 0.75t is a small straight-sided shackle for connecting slings, chain and fittings on light lifts. At 0.75t working load limit it is the size you reach for on smaller loads, toolboxes, light recovery work and general site rigging where a bigger body would just get in the way. The 8mm body takes a 10mm screw pin, with 13mm inside width and 26mm inside length.
Grade S gives you high strength for the size, which is why these turn up on mine sites, construction jobs, towing and 4WD work. The body is hot dipped galvanised and the pin is painted yellow, so it stays easy to pick out of a kit and handles outdoor exposure. Boss diameter is 21mm. Complies to AS 2741. Hand tight the pin before every lift and check the body and pin for wear or bending.
Common questions
- what is the WLL of a 0.75t dee shackle
- This one is rated to a 0.75 tonne working load limit as a Grade S shackle. It is the rating stamped for the 8mm x 10mm size.
- beaver yellow pin shackle 8mm dimensions
- The body is 8mm diameter with a 10mm pin, 13mm inside width, 26mm inside length and a 21mm diameter boss.
- screw pin or safety pin shackle for lifting
- A screw pin like this one suits jobs where the shackle is fitted and removed regularly. Check the pin is hand tight before each lift, since nothing else locks it in place.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
