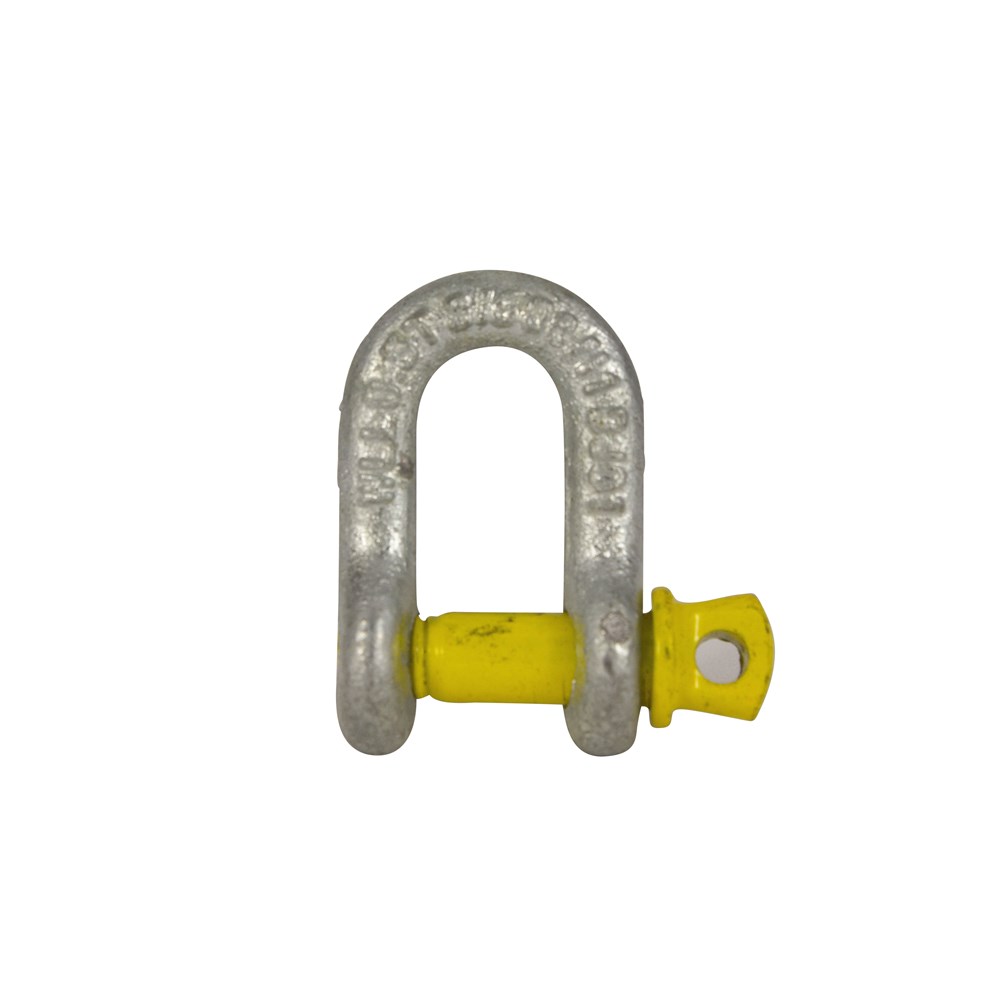

Beaver Yellow Pin Grade S Screw Pin Dee Shackle 0.5t
241306per Each
$2.48 inc GSTTrade $2.23, save $0.25Trade accounts save 10%. Apply with your ABN
| WLL | 0.5t |
| Size | 6mm x 8mm |
| Type | Grade S |
| Shape | Dee |
| Diameter | 6mm |
| Closing Method | Screw |
| Inside Width (W) | 12mm |
| Pin Diameter (D) | 8mm |
| Diameter Boss (e) | 17mm |
| Inside Length (L) | 22mm |
| Working Load Limit | 0.5t |
About this product
The Beaver Yellow Pin Grade S Screw Pin Dee Shackle 0.5t is the smallest end of the range, built for light lifting and connection work where a full size shackle is overkill. It runs a 6mm body with an 8mm screw pin, 12mm inside width and 22mm inside length, so it suits thin slings, small chain and light rigging hardware. The 17mm diameter boss gives the pin solid bearing.
Grade S steel gives a high strength to size ratio at a 0.5t working load limit, and the body is hot dipped galvanised with the familiar yellow painted pin for quick identification on site. It complies to AS 2741. Common enough on mining and construction jobs, plus towing and 4WD recovery. Check the pin threads freely and the body is free of gouges or bends before every lift.
Common questions
- what is the WLL of a 6mm dee shackle
- This Beaver Grade S dee shackle has a working load limit of 0.5t, with a 6mm body diameter and 8mm pin.
- beaver yellow pin shackle AS 2741
- Yes, the Beaver Yellow Pin Grade S Screw Pin Dee Shackle complies to AS 2741.
- is a galvanised shackle ok for mine sites
- The body is hot dipped galvanised with a yellow painted pin, and Beaver Grade S shackles are used across mining and construction lifting work.
Full specifications
| Product Code | Size | WLL | Type | Shape | Closing Method |
|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 0.5t | Grade S | Dee | Screw |
| 241308 | 8mm x 10mm | 0.75t | Grade S | Dee | Screw |
| 241310 | 10mm x 11mm | 1t | Grade S | Dee | Screw |
| 241311 | 11mm x 13mm | 1.5t | Grade S | Dee | Screw |
| 241313 | 13mm x 16mm | 2t | Grade S | Dee | Screw |
| 241316 | 16mm x 19mm | 3.2t | Grade S | Dee | Screw |
| 241319 | 19mm x 22mm | 4.7t | Grade S | Dee | Screw |
| 241322 | 22mm x 25mm | 6.5t | Grade S | Dee | Screw |
| 241325 | 25mm x 29mm | 8.5t | Grade S | Dee | Screw |
| 241329 | 29mm x 32mm | 9.5t | Grade S | Dee | Screw |
| 241332 | 32mm x 35mm | 12t | Grade S | Dee | Screw |
| 241335 | 35mm x 38mm | 13.5t | Grade S | Dee | Screw |
| 241338 | 38mm x 41mm | 17t | Grade S | Dee | Screw |
| 241344 | 44mm x 51mm | 25t | Grade S | Dee | Screw |
| 241351 | 51mm x 57mm | 35t | Grade S | Dee | Screw |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) |
|---|---|---|---|---|---|---|
| 241306 | 6mm x 8mm | 6mm | 8mm | 12mm | 22mm | 17mm |
| 241308 | 8mm x 10mm | 8mm | 10mm | 13mm | 26mm | 21mm |
| 241310 | 10mm x 11mm | 10mm | 11mm | 17mm | 32mm | 25mm |
| 241311 | 11mm x 13mm | 11mm | 13mm | 18mm | 37mm | 27mm |
| 241313 | 13mm x 16mm | 13mm | 16mm | 21mm | 41mm | 33mm |
| 241316 | 16mm x 19mm | 16mm | 19mm | 27mm | 51mm | 40mm |
| 241319 | 19mm x 22mm | 19mm | 22mm | 32mm | 60mm | 48mm |
| 241322 | 22mm x 25mm | 22mm | 25mm | 37mm | 71mm | 54mm |
| 241325 | 25mm x 29mm | 25mm | 29mm | 43mm | 81mm | 60mm |
| 241329 | 29mm x 32mm | 29mm | 32mm | 46mm | 90mm | 67mm |
| 241332 | 32mm x 35mm | 32mm | 35mm | 52mm | 100mm | 76mm |
| 241335 | 35mm x 38mm | 35mm | 38mm | 57mm | 113mm | 84mm |
| 241338 | 38mm x 41mm | 38mm | 41mm | 60mm | 124mm | 92mm |
| 241344 | 44mm x 51mm | 44mm | 51mm | 73mm | 146mm | 110mm |
| 241351 | 51mm x 57mm | 51mm | 57mm | 83mm | 171mm | 127mm |
