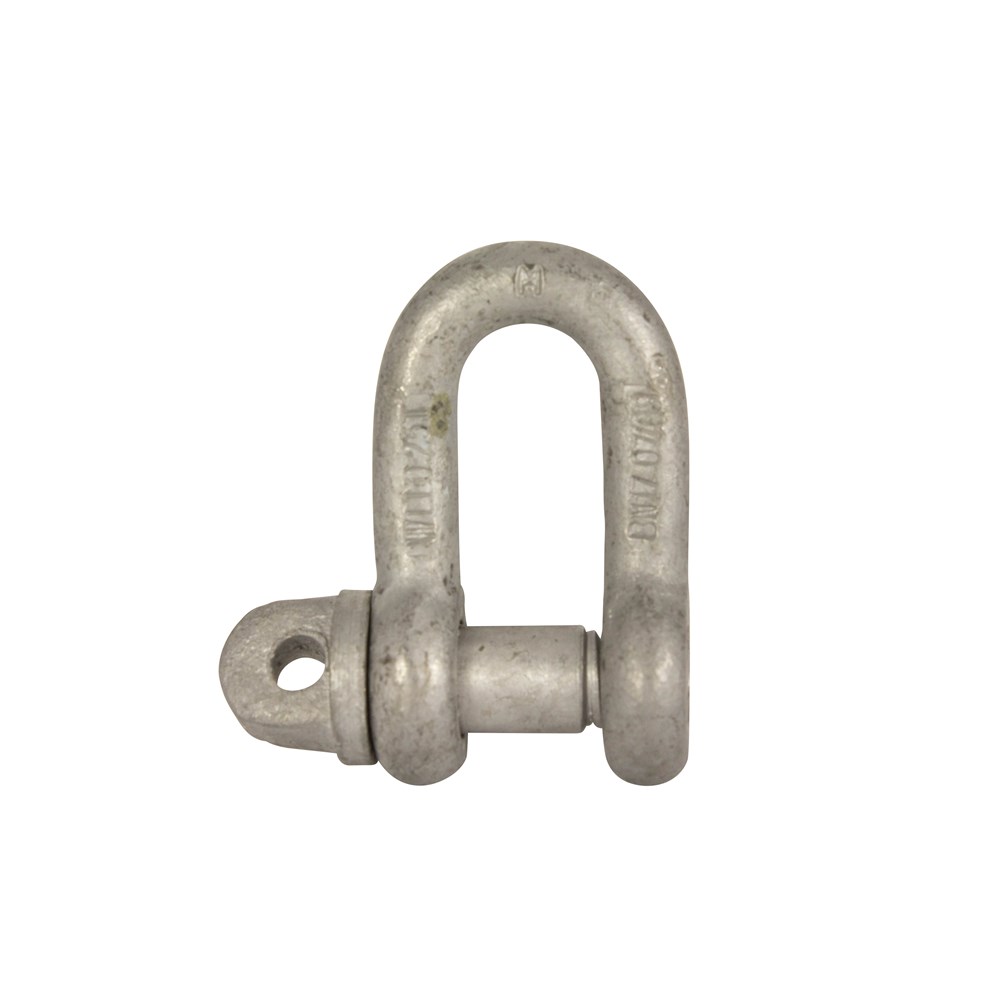

Beaver Grade M Dee Shackle - Galvanised 7t
230335per Each
$51.73 inc GSTTrade $46.56, save $5.17Trade accounts save 10%. Apply with your ABN
| WLL | 7t |
| Size | 35mm x 38mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 4.61kg |
| Diameter | 35mm |
| Closing Method | Screw |
| Inside Width (W) | 67mm |
| Pin Diameter (D) | 38mm |
| Diameter Boss (F) | 76mm |
| Inside Length (L) | 127mm |
| Working Load Limit | 7t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 7t is a rated screw pin shackle for straight in-line lifting and rigging connections. At 7t working load limit it sits in the heavier end of the range, with a 35mm body and a 38mm pin, so it takes bigger hooks, thimbles and chain terminations than the smaller sizes. Inside width is 67mm and inside length 127mm, and the whole thing weighs 4.61kg.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, it holds up in marine work and commercial fishing as well as general site lifting. The screw collar pin makes it quick to pin up and break out by hand. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability. Complies to AS 2741.
Common questions
- what is the WLL of a 35mm Beaver dee shackle
- This size is rated at a 7t working load limit. The body is 35mm with a 38mm pin diameter.
- are galvanised dee shackles ok for marine use
- Yes, the galvanised finish gives better corrosion resistance and these shackles are commonly used in commercial fishing and marine applications.
- what standard does the Beaver Grade M dee shackle comply with
- It complies to AS 2741. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
