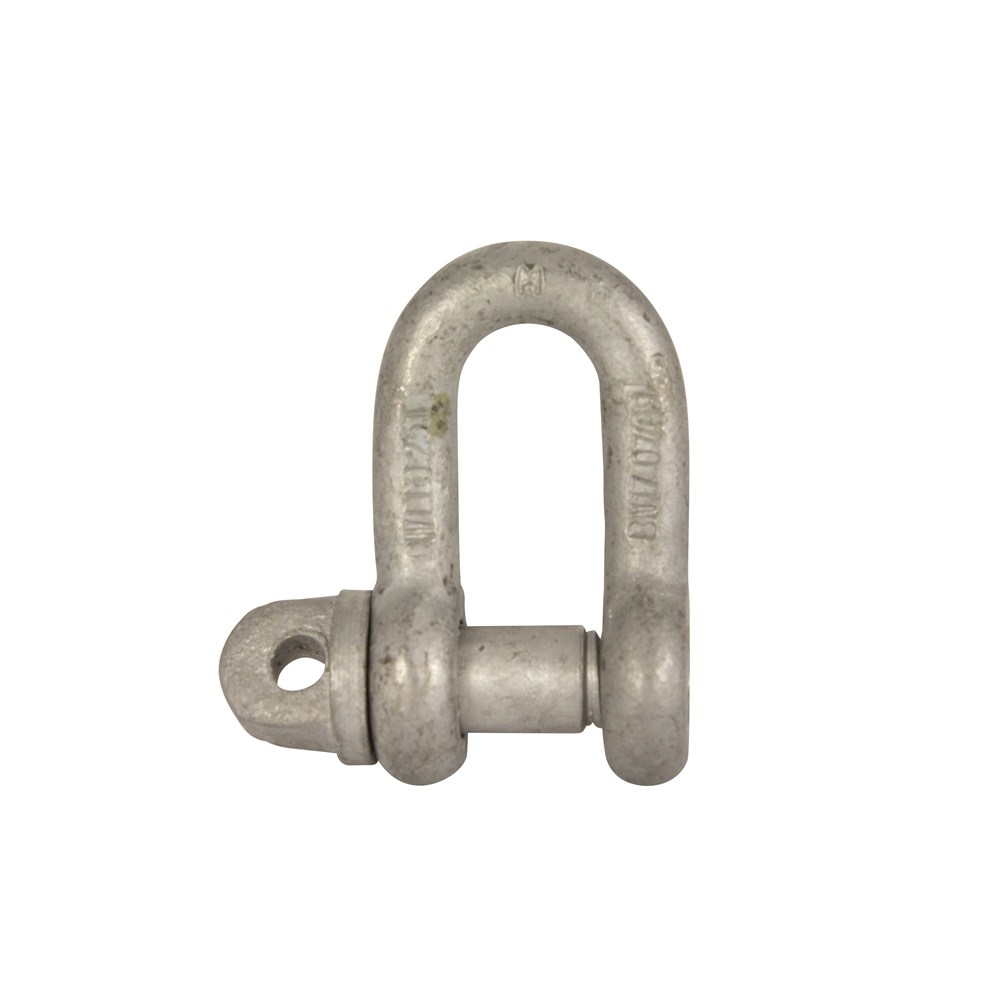

Beaver Grade M Dee Shackle - Galvanised 5t
230328per Each
$27.74 inc GSTTrade $24.97, save $2.77Trade accounts save 10%. Apply with your ABN
| WLL | 5t |
| Size | 29mm x 32mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 2.98kg |
| Diameter | 29mm |
| Closing Method | Screw |
| Inside Width (W) | 54mm |
| Pin Diameter (D) | 32mm |
| Diameter Boss (F) | 63mm |
| Inside Length (L) | 105mm |
| Working Load Limit | 5t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 5t is a rated screw pin shackle for straight in line lifting and rigging connections. At 29mm x 32mm with a 5t working load limit, this is the mid size in the range, a common pick where a 3.25t body is getting worked too hard but a bigger shackle will not sit right in the eye. Inside width is 54mm and inside length 105mm, with a 32mm pin and 63mm diameter boss.
Body is Grade 40 alloy steel with a galvanised finish for better corrosion resistance, so it holds up in commercial fishing and marine work as well as general site lifting. The screw collar pin makes it quick to pull apart and reuse. Grade, WLL, manufacture date and body ID are stamped into each shackle for traceability, and it complies to AS 2741. Shackle weight is 2.98kg.
Common questions
- what is the WLL of a 29mm dee shackle
- This Beaver Grade M dee shackle is rated to a 5t working load limit, with a 29mm body and 32mm pin.
- are galvanised dee shackles ok for marine use
- Yes, the galvanised finish gives greater corrosion resistance and these shackles are commonly used in commercial fishing and marine applications.
- what standard does the beaver grade m shackle comply with
- It complies to AS 2741, and each shackle is stamped with grade, WLL, manufacture date and body ID for traceability.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
