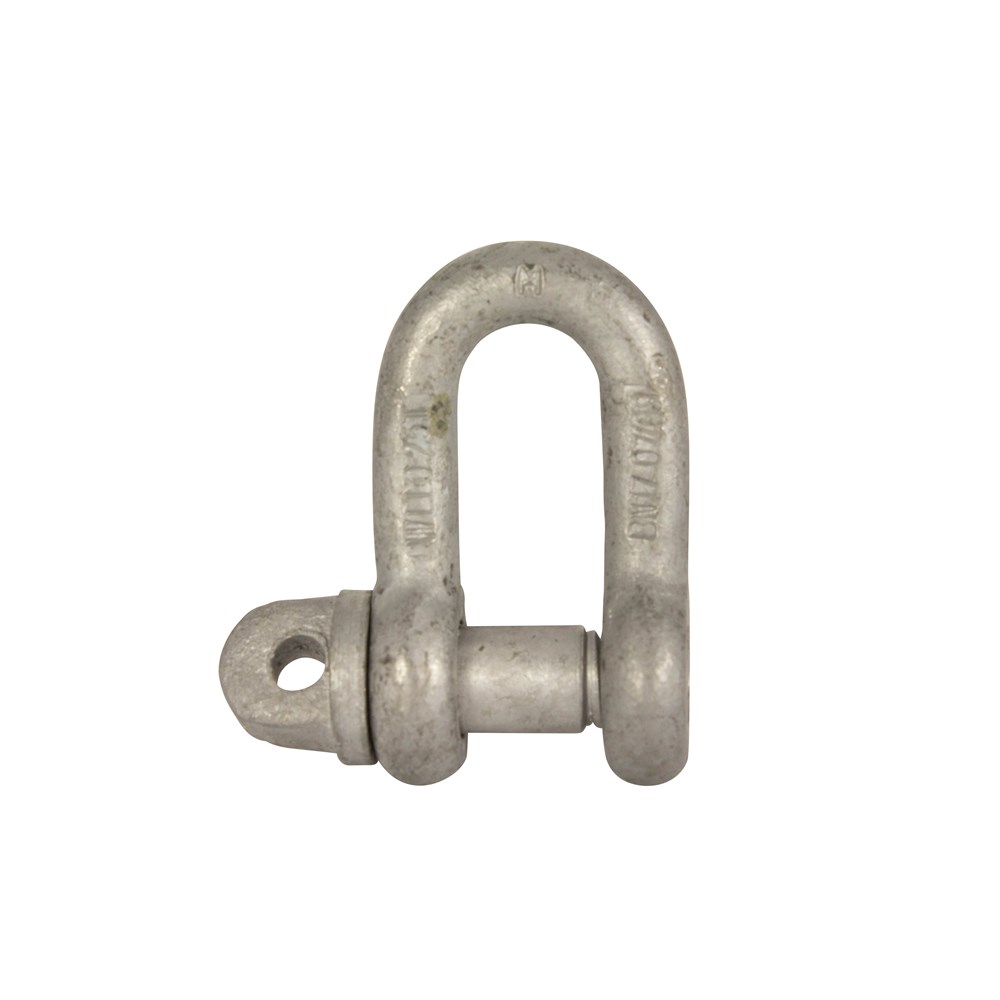

Beaver Grade M Dee Shackle - Galvanised 3.8t
230325per Each
$20.24 inc GSTTrade $18.22, save $2.02Trade accounts save 10%. Apply with your ABN
| WLL | 3.8t |
| Size | 25mm x 29mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 2.14kg |
| Diameter | 25mm |
| Closing Method | Screw |
| Inside Width (W) | 51mm |
| Pin Diameter (D) | 29mm |
| Diameter Boss (F) | 57mm |
| Inside Length (L) | 95mm |
| Working Load Limit | 3.8t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 3.8t is a rated screw pin shackle for connecting slings, chain and hardware on straight in line pulls. This size runs a 25mm body with a 29mm pin, giving a 3.8t working load limit at 2.14kg. Inside width is 51mm and inside length 95mm, with a 57mm diameter boss, so it takes a decent eye or hook without crowding the pin.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, which is why these turn up on fishing boats and marine work as often as they do on site. The screw collar pin makes it quick to pin up and pull apart. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability. Complies to AS 2741.
Common questions
- what is the WLL of a 25mm dee shackle
- This Beaver Grade M Dee Shackle has a working load limit of 3.8t, with a 25mm body diameter and a 29mm pin.
- are galvanised dee shackles ok for marine use
- The galvanised finish gives better corrosion resistance, and these Beaver Grade M shackles are commonly used in commercial fishing and marine applications.
- dee shackle vs bow shackle which one do i need
- A dee shackle like this one suits straight in line loading. If you need to take loads from more than one direction, look at a bow shackle instead.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
