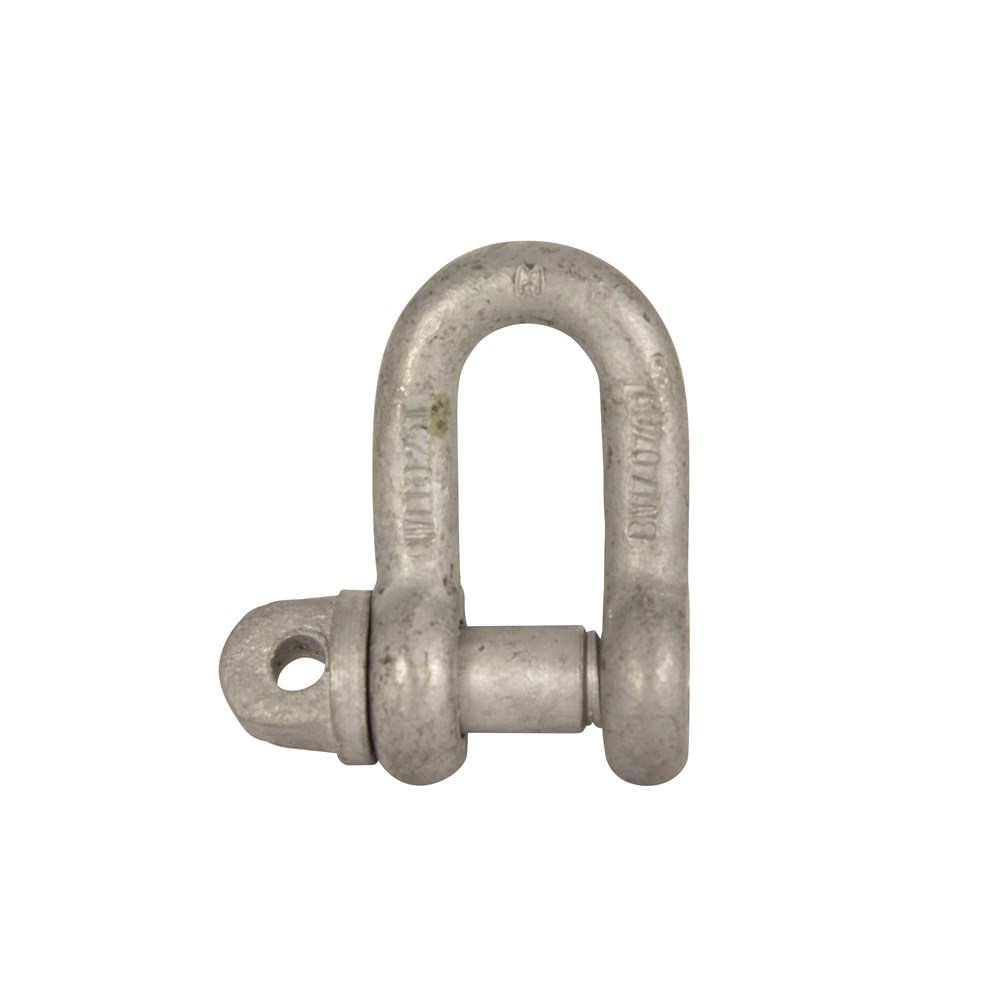

Beaver Grade M Dee Shackle - Galvanised 3t
230323per Each
$17.46 inc GSTTrade $15.71, save $1.75Trade accounts save 10%. Apply with your ABN
| WLL | 3t |
| Size | 22mm x 25mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 1.5kg |
| Diameter | 22mm |
| Closing Method | Screw |
| Inside Width (W) | 44mm |
| Pin Diameter (D) | 25mm |
| Diameter Boss (F) | 51mm |
| Inside Length (L) | 83mm |
| Working Load Limit | 3t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 3t is a rated screw pin shackle for straight-line lifting and rigging connections. The 3t working load limit sits in the middle of the range, which makes it a common pick for general lifting, marine work and commercial fishing gear. Body diameter is 22mm with a 25mm pin, giving a 44mm inside width and 83mm inside length for the bow.
Made from Grade 40 alloy steel with a galvanised finish for better corrosion resistance, and it complies to AS 2741. The screw collar pin lets you pull it apart on the job without tools. Each shackle carries the grade, WLL, manufacture date and body ID stamped into it, so traceability checks are straightforward. Boss diameter is 51mm and the shackle weighs 1.5kg.
Common questions
- what is the WLL of a 22mm dee shackle
- This Beaver Grade M dee shackle has a working load limit of 3t, with a 22mm body diameter and a 25mm pin.
- are galvanised dee shackles ok for marine use
- Yes, the galvanised finish gives better corrosion resistance, and these are commonly used in commercial fishing and marine applications.
- what standard does the beaver grade m dee shackle comply with
- It complies to AS 2741. The grade, WLL, manufacture date and body ID are stamped on each shackle for traceability.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
