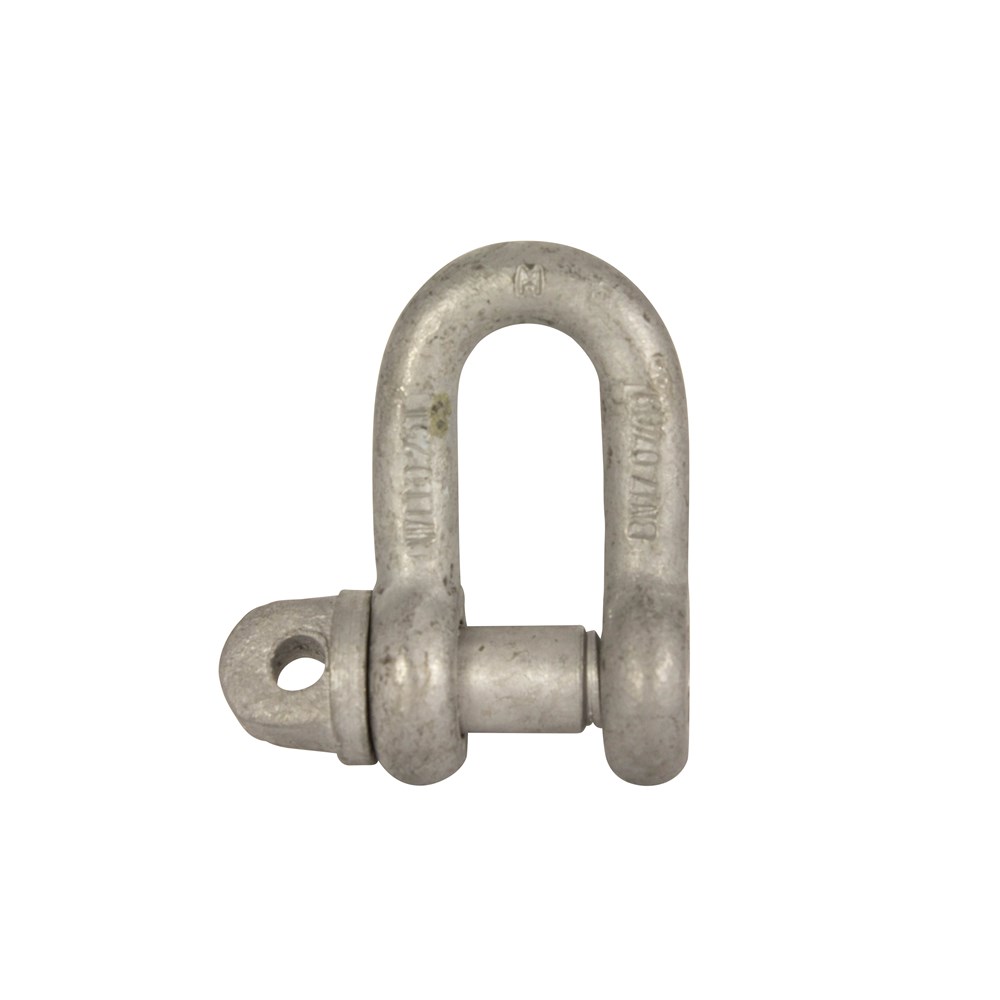

Beaver Grade M Dee Shackle - Galvanised 2t
230320per Each
$12.33 inc GSTTrade $11.10, save $1.23Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| Size | 19mm x 22mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 1.1kg |
| Diameter | 19mm |
| Closing Method | Screw |
| Inside Width (W) | 38mm |
| Pin Diameter (D) | 22mm |
| Diameter Boss (F) | 44mm |
| Inside Length (L) | 73mm |
| Working Load Limit | 2t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 2t is a rated screw pin shackle for straight-line lifting and rigging connections. This size runs a 19mm body with a 22mm pin, giving a 2t working load limit at a handy 1.1kg. Inside width is 38mm and inside length 73mm, so it takes eye fittings and chain ends without crowding the pin. Diameter across the boss is 44mm.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, it holds up in marine and commercial fishing work as well as general site rigging. The screw collar pin threads down by hand, no tools needed to make or break the connection. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability. Complies to AS 2741.
Common questions
- what is the WLL of a 19mm dee shackle
- This Beaver Grade M dee shackle has a working load limit of 2t, with a 19mm body diameter and 22mm pin.
- is a galvanised dee shackle ok for marine use
- Yes, the galvanised finish gives it better corrosion resistance, and these shackles are commonly used in commercial fishing and marine applications.
- dee shackle vs bow shackle which one do i need
- A dee shape like this one suits straight-line pulls where the load stays in one plane. Bow shackles handle side loading and multiple leg connections better.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
