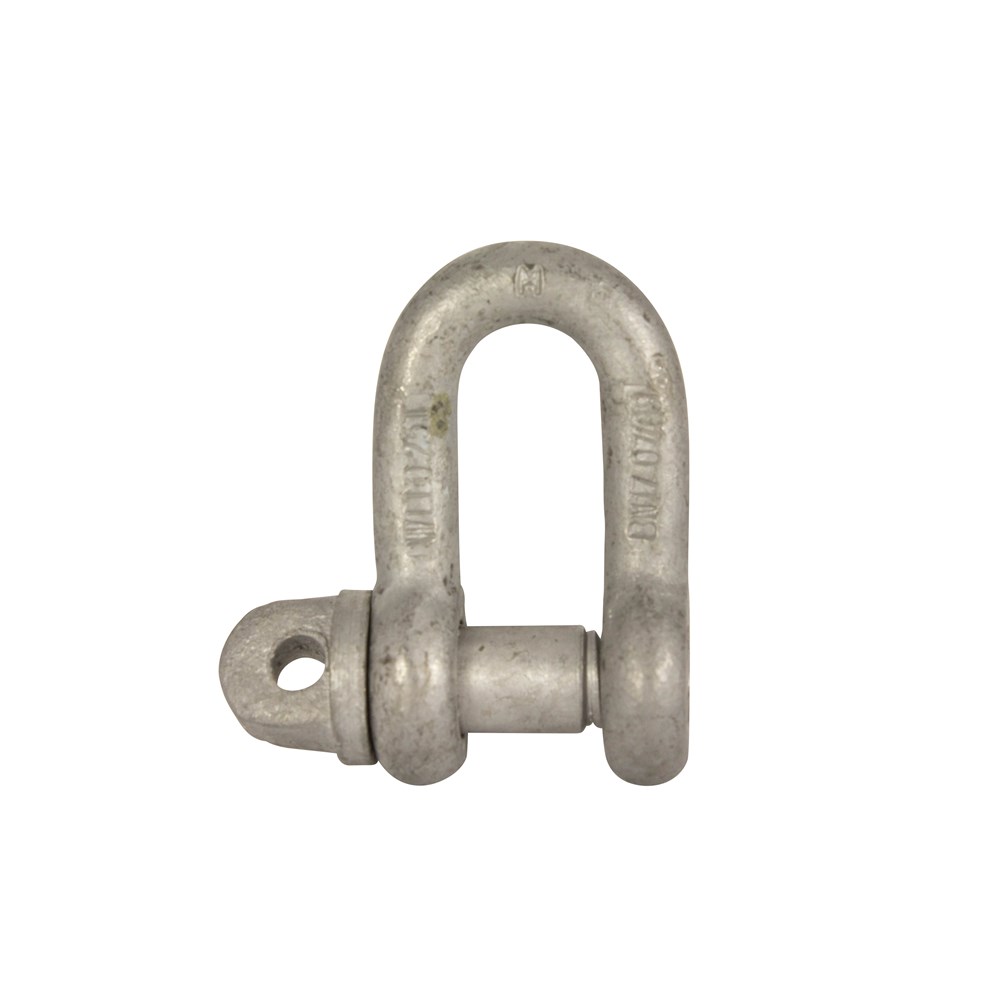

Beaver Grade M Dee Shackle - Galvanised 1.5t
230316per Each
$7.33 inc GSTTrade $6.60, save $0.73Trade accounts save 10%. Apply with your ABN
| WLL | 1.5t |
| Size | 16mm x 19mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 0.61kg |
| Diameter | 16mm |
| Closing Method | Screw |
| Inside Width (W) | 32mm |
| Pin Diameter (D) | 19mm |
| Diameter Boss (F) | 38mm |
| Inside Length (L) | 63mm |
| Working Load Limit | 1.5t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 1.5t is a rated screw pin shackle for straight in-line lifting and rigging connections. This is the 16mm x 19mm size in the range, carrying a 1.5t working load limit with a 19mm pin and a 38mm diameter boss. Inside width is 32mm and inside length 63mm, so it takes a modest eye or a smaller sling fitting without slop. At 0.61kg it is easy to handle all day.
Engineered from Grade 40 alloy steel and galvanised for better corrosion resistance, it holds up in commercial fishing and marine work as well as general lifting. The screw collar pin lets you make up and break down connections by hand. Each shackle is stamped with grade, WLL, manufacture date and body ID for traceability, and complies to AS 2741. The dee shape is made for loading along its length, not for multi-leg side pulls.
Common questions
- what is the WLL of a 16mm Beaver dee shackle
- This 16mm x 19mm Beaver Grade M Dee Shackle is rated to a 1.5t working load limit. The grade and WLL are stamped on the shackle body.
- are galvanised dee shackles ok for marine use
- Yes, the galvanised finish gives greater corrosion resistance and these shackles are commonly used in commercial fishing and marine applications.
- dee shackle vs bow shackle for slings
- A dee shackle like this one is shaped for loading along its length, so it suits single straight pulls. A bow shackle has more room in the body for angled or multi-leg connections.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
