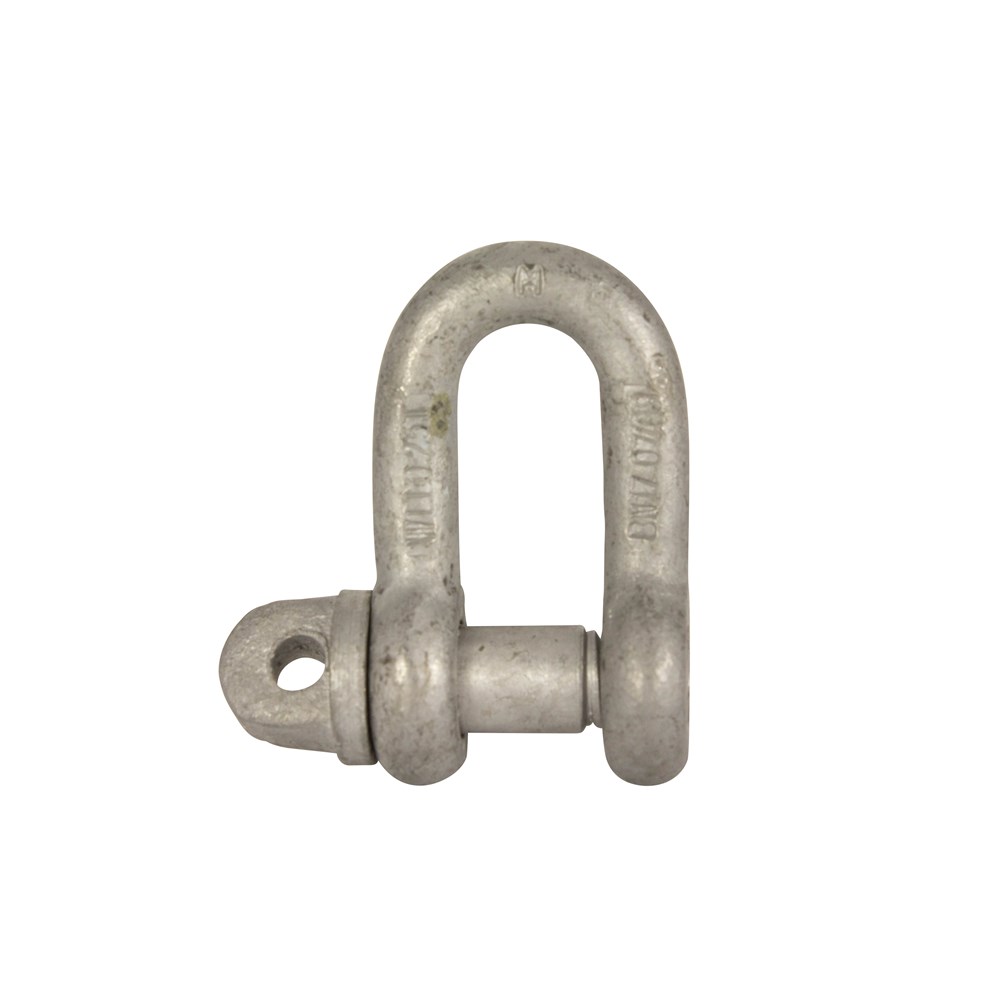

Beaver Grade M Dee Shackle - Galvanised 0.75t
230313per Each
$5.05 inc GSTTrade $4.55, save $0.50Trade accounts save 10%. Apply with your ABN
| WLL | 0.75t |
| Size | 13mm x 16mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 0.35kg |
| Diameter | 13mm |
| Closing Method | Screw |
| Inside Width (W) | 28mm |
| Pin Diameter (D) | 16mm |
| Diameter Boss (F) | 32mm |
| Inside Length (L) | 54mm |
| Working Load Limit | 0.75t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 0.75t is a rated screw pin shackle for connecting slings, chain and fittings on lighter lifts. It is the 13mm x 16mm size in the range, with a 0.75t working load limit and a 16mm screw collar pin. Inside width is 28mm and inside length 54mm, so it suits smaller soft slings and hardware without crowding the pin. At 0.35kg it is easy to handle up a ladder or over the side of a boat.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, which is why these turn up on commercial fishing boats and around marine work as much as on site. Each shackle is stamped with the grade, WLL, manufacture date and body ID for traceability. Complies to AS 2741. The dee shape keeps the load in line, so keep side loading off it.
Common questions
- what is the WLL of a 13mm dee shackle
- This Beaver Grade M Dee Shackle is rated at 0.75t working load limit, with a 13mm body and 16mm pin.
- are galvanised dee shackles ok for marine use
- The galvanised finish gives better corrosion resistance, which is why these are commonly used in commercial fishing and marine applications.
- dee shackle vs bow shackle which one do i need
- A dee shackle like this one is narrower and made for in line loading, so use it where the pull stays straight through the body rather than at an angle.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
