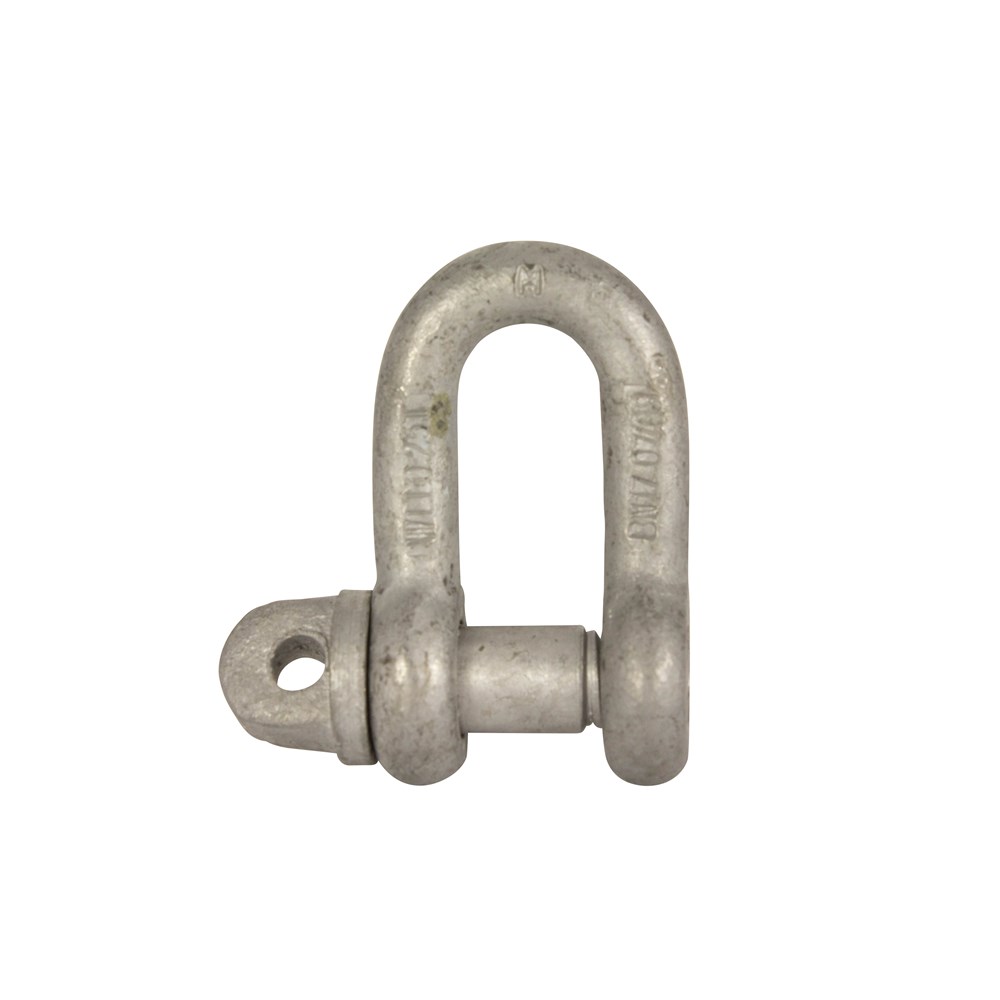

Beaver Grade M Dee Shackle - Galvanised 0.5t
230310per Each
$2.71 inc GSTTrade $2.44, save $0.27Trade accounts save 10%. Apply with your ABN
| WLL | 0.5t |
| Size | 10mm x 13mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 0.16kg |
| Diameter | 10mm |
| Closing Method | Screw |
| Inside Width (W) | 19mm |
| Pin Diameter (D) | 13mm |
| Diameter Boss (F) | 25mm |
| Inside Length (L) | 38mm |
| Working Load Limit | 0.5t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 0.5t is the smallest rated dee in the range, built for light lifting and marine work where a bigger shackle is just dead weight. Body diameter is 10mm with a 13mm screw collar pin, giving a 19mm inside width and 38mm inside length. At 0.16kg it sits easily in a tool belt or a deck locker.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, so it holds up around salt water and weather. The diameter boss measures 25mm. Grade, working load limit, manufacture date and body ID are stamped into each shackle, so you can trace it and check it at inspection time. Complies to AS 2741. Common jobs include commercial fishing, rigging on boats and small lifting tasks where the load stays within the 0.5t WLL.
Common questions
- what is the WLL of a 10mm beaver dee shackle
- This size is rated at a 0.5t working load limit. The WLL is stamped on the shackle body along with the grade and manufacture date.
- are galvanised dee shackles ok for marine use
- Yes, the galvanised finish gives better corrosion resistance and these shackles are commonly used in commercial fishing and marine applications.
- what size pin does the 0.5t beaver dee shackle have
- The screw collar pin is 13mm in diameter, with a 10mm body, 19mm inside width and 38mm inside length.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
