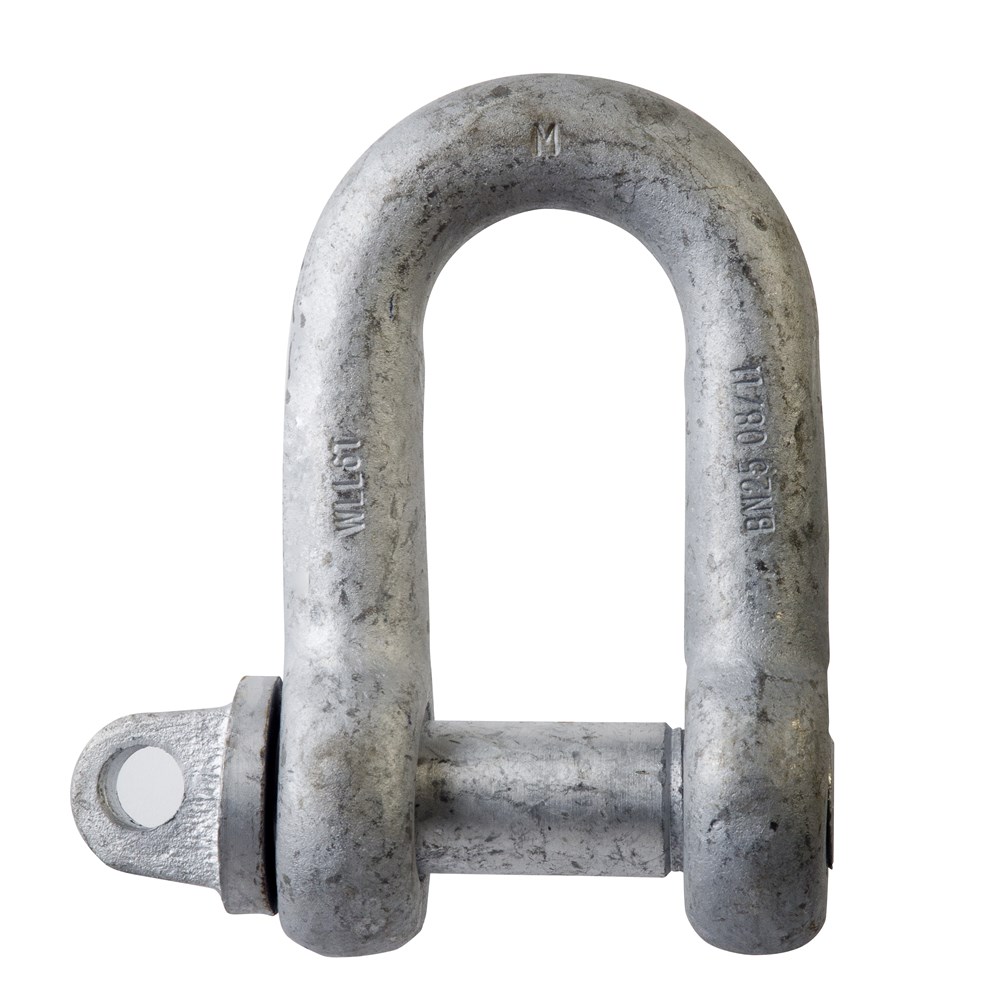

Beaver Grade M Dee Shackle - Galvanised 0.25t
230306per Each
$1.92 inc GSTTrade $1.73, save $0.19Trade accounts save 10%. Apply with your ABN
| WLL | 0.25t |
| Size | 6mm x 10mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Galvanised |
| Weight | 0.061kg |
| Diameter | 6mm |
| Closing Method | Screw |
| Inside Width (W) | 13mm |
| Pin Diameter (D) | 10mm |
| Diameter Boss (F) | 19mm |
| Inside Length (L) | 25mm |
| Working Load Limit | 0.25t |
About this product
The Beaver Grade M Dee Shackle - Galvanised 0.25t is a rated screw pin shackle for light lifting and marine connection work. At 6mm x 10mm it is the smallest end of the range, with a 0.25t working load limit, a 13mm inside width and 25mm inside length. The 10mm screw collar pin and 19mm boss give you a solid connection on small slings, chain and fittings. Weighing 0.061kg, it is easy to carry a handful of them in a toolbag.
Made from Grade 40 alloy steel and galvanised for better corrosion resistance, so it holds up in commercial fishing and other marine jobs. Each shackle is stamped with grade, WLL, manufacture date and body ID, which makes traceability and inspection straightforward. Complies to AS 2741. Use the dee shape for straight in-line loading where side pull is not a factor.
Common questions
- what is the WLL of a 6mm Beaver dee shackle
- This size carries a working load limit of 0.25t. It is the 6mm x 10mm shackle in the Beaver Grade M galvanised range.
- is the Beaver Grade M dee shackle rated for lifting
- Yes, it is a rated shackle suitable for lifting applications and complies to AS 2741.
- what are dee shackles made of and what finish do they have
- They are engineered from Grade 40 alloy steel and galvanised for greater corrosion resistance, which suits marine and fishing work.
- how do I check the shackle before use
- Each shackle is stamped with the grade, WLL, manufacture date and body ID, so you can confirm the rating and trace the item before it goes into service.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 0.25t | Grade M | Galvanised | Dee | Screw | 0.061kg |
| 230310 | 10mm x 13mm | 0.5t | Grade M | Galvanised | Dee | Screw | 0.16kg |
| 230313 | 13mm x 16mm | 0.75t | Grade M | Galvanised | Dee | Screw | 0.35kg |
| 230316 | 16mm x 19mm | 1.5t | Grade M | Galvanised | Dee | Screw | 0.61kg |
| 230320 | 19mm x 22mm | 2t | Grade M | Galvanised | Dee | Screw | 1.1kg |
| 230323 | 22mm x 25mm | 3t | Grade M | Galvanised | Dee | Screw | 1.5kg |
| 230325 | 25mm x 29mm | 3.8t | Grade M | Galvanised | Dee | Screw | 2.14kg |
| 230328 | 29mm x 32mm | 5t | Grade M | Galvanised | Dee | Screw | 2.98kg |
| 230332 | 32mm x 35mm | 6t | Grade M | Galvanised | Dee | Screw | 3.1kg |
| 230335 | 35mm x 38mm | 7t | Grade M | Galvanised | Dee | Screw | 4.61kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230306 | 6mm x 10mm | 6mm | 10mm | 13mm | 25mm | 19mm |
| 230310 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230313 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230316 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230320 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230323 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230325 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230328 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230332 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230335 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
