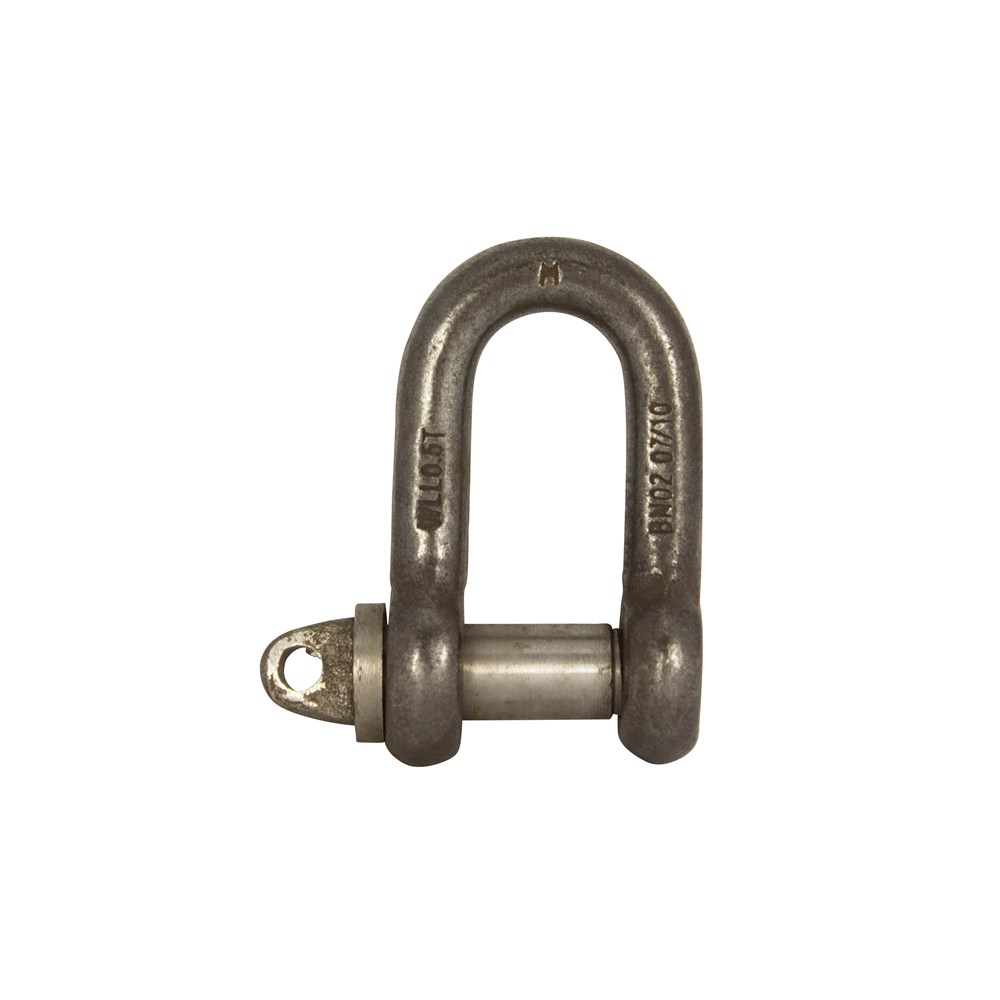

Beaver Grade M Dee Shackle Self Colour 11t
230042per Each
$241.81 inc GSTTrade $217.63, save $24.18Trade accounts save 10%. Apply with your ABN
| WLL | 11t |
| Size | 41mm x 48mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 10.48kg |
| Diameter | 41mm |
| Closing Method | Screw |
| Inside Width (W) | 76mm |
| Pin Diameter (D) | 48mm |
| Diameter Boss (F) | 95mm |
| Inside Length (L) | 146mm |
| Working Load Limit | 11t |
About this product
The Beaver Grade M Dee Shackle Self Colour 11t is a rated screw pin shackle for straight-line lifting and rigging connections, and it sits at the heavy end of this range. The 41mm body carries a working load limit of 11t, with a 48mm screw collar pin, 76mm inside width and 146mm inside length. At 10.48kg it is a two-hand lift, so plan your connection points before you start.
Made from Grade 40 alloy steel with a self colour finish, it holds its shape under load and is commonly used in commercial fishing and marine work as well as general lifting. Each shackle is stamped with grade, WLL, manufacture date and body ID for traceability. It complies to AS 2741. The 95mm diameter boss gives the pin plenty of bearing, and a Dee shape keeps the load in line rather than spread across the bow.
Common questions
- what is the WLL of a 41mm dee shackle
- This Beaver Grade M Dee Shackle has a working load limit of 11t, with a 41mm body diameter and a 48mm pin.
- is a self colour shackle ok for marine use
- Self colour shackles like this one are commonly used in commercial fishing and marine applications. There is no galvanised coating, so keep an eye on it and maintain it as you would any bare steel gear.
- dee shackle vs bow shackle for lifting
- A Dee shackle suits in-line loading where the pull stays along the axis of the body. A bow shackle gives you more room for multi-leg or angled connections.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
