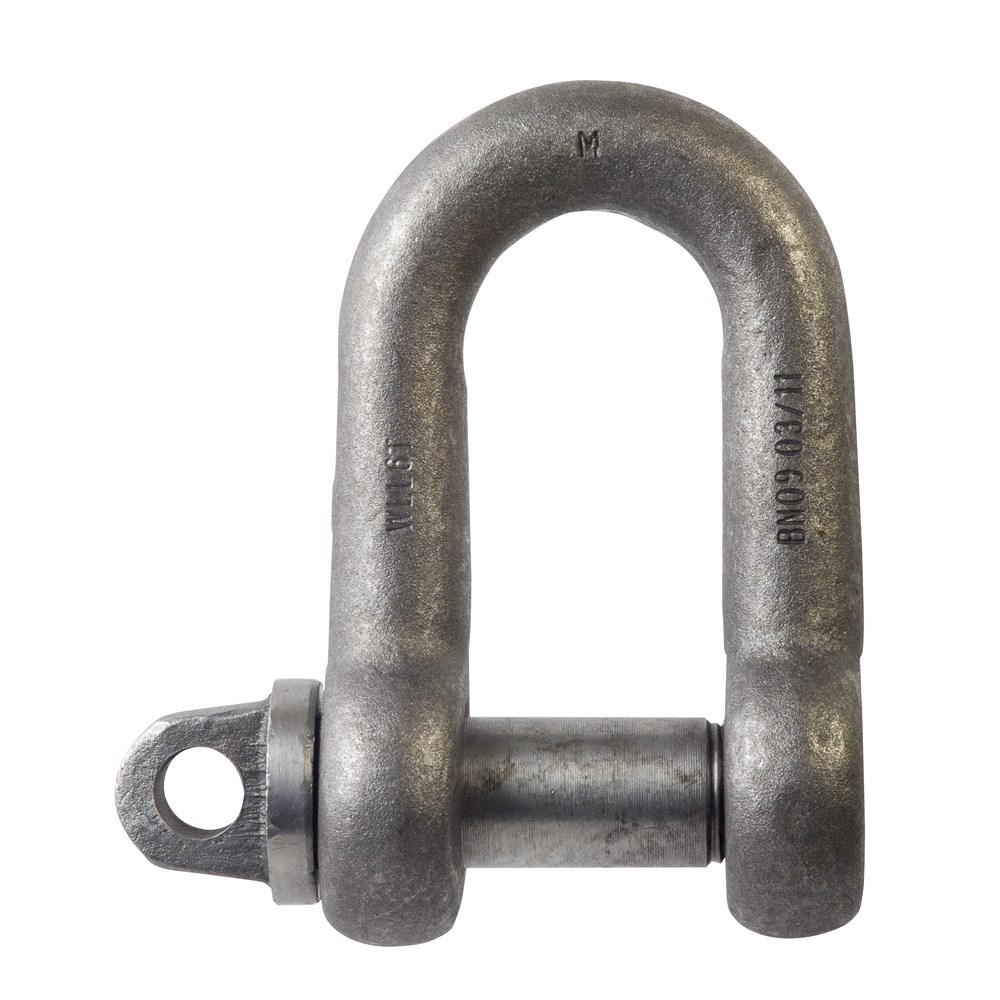

Beaver Grade M Dee Shackle Self Colour 5t
230028per Each
$32.32 inc GSTTrade $29.09, save $3.23Trade accounts save 10%. Apply with your ABN
| WLL | 5t |
| Size | 29mm x 32mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 2.98kg |
| Diameter | 29mm |
| Closing Method | Screw |
| Inside Width (W) | 54mm |
| Pin Diameter (D) | 32mm |
| Diameter Boss (F) | 63mm |
| Inside Length (L) | 105mm |
| Working Load Limit | 5t |
About this product
The Beaver Grade M Dee Shackle Self Colour 5t is a rated screw pin shackle for straight-line lifting and rigging connections. At 5t working load limit, this is the mid to upper end of the range, sized 29mm x 32mm with a 32mm pin and a 63mm boss. Inside width is 54mm and inside length is 105mm, so it takes chain, eye fittings and thicker slings without crowding the pin. Weight is 2.98kg.
Made from Grade 40 alloy steel with a screw collar pin and left in self colour finish. The dee shape keeps the load in line, which suits it to marine work, commercial fishing and general site rigging. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability. Complies to AS 2741.
Common questions
- What is the WLL of the Beaver 29mm dee shackle?
- The working load limit is 5t. Grade, WLL, manufacture date and body ID are stamped on the shackle.
- What size pin does the 5t Beaver dee shackle take?
- The pin diameter is 32mm, with a 29mm body and a 63mm boss diameter.
- Is a self colour shackle alright for marine use?
- Self colour has no protective coating, so keep an eye on it around salt water. These Grade M dee shackles are commonly used in commercial fishing and marine applications.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
