Beaver Grade M Dee Shackle Self Colour 3.8t
230025per Each
$24.13 inc GSTTrade $21.72, save $2.41Trade accounts save 10%. Apply with your ABN
| WLL | 3.8t |
| Size | 25mm x 29mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 2.14kg |
| Diameter | 25mm |
| Closing Method | Screw |
| Inside Width (W) | 51mm |
| Pin Diameter (D) | 29mm |
| Diameter Boss (F) | 57mm |
| Inside Length (L) | 95mm |
| Working Load Limit | 3.8t |
About this product

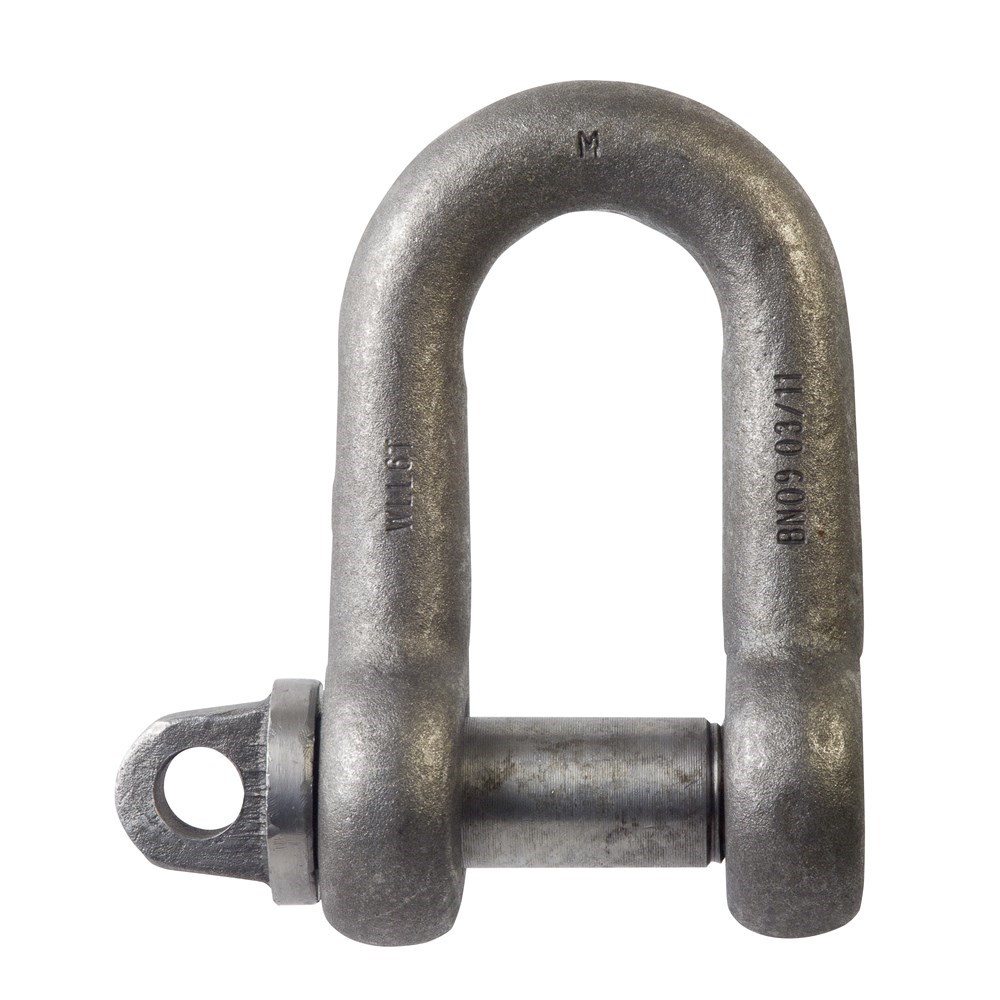

The Beaver Grade M Dee Shackle Self Colour 3.8t is a rated screw pin shackle for straight in-line lifting and rigging connections. At 3.8t working load limit it sits in the middle of the range, with a 25mm body and a 29mm pin, so it handles solid loads without the bulk of the bigger sizes. Inside width is 51mm and inside length 95mm, which gives you room for slings, eyes and chain ends. Weight is 2.14kg.
Made from Grade 40 alloy steel with a self colour finish, and the screw collar pin makes it quick to pin up and break out on site. Grade, WLL, manufacture date and body ID are stamped into each shackle, so traceability is easy to check at inspection. Complies to AS 2741. Common in commercial fishing and marine work as well as general lifting.
Common questions
- what is the WLL of a 25mm dee shackle
- This Beaver Grade M dee shackle has a working load limit of 3.8t with a 25mm body diameter and a 29mm pin diameter.
- what steel are beaver grade m shackles made from
- They are engineered from Grade 40 alloy steel with a self colour finish.
- what size sling will fit in a 3.8t dee shackle
- Inside width is 51mm and inside length is 95mm, so measure your sling eye or fitting against those figures before you pin up.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
