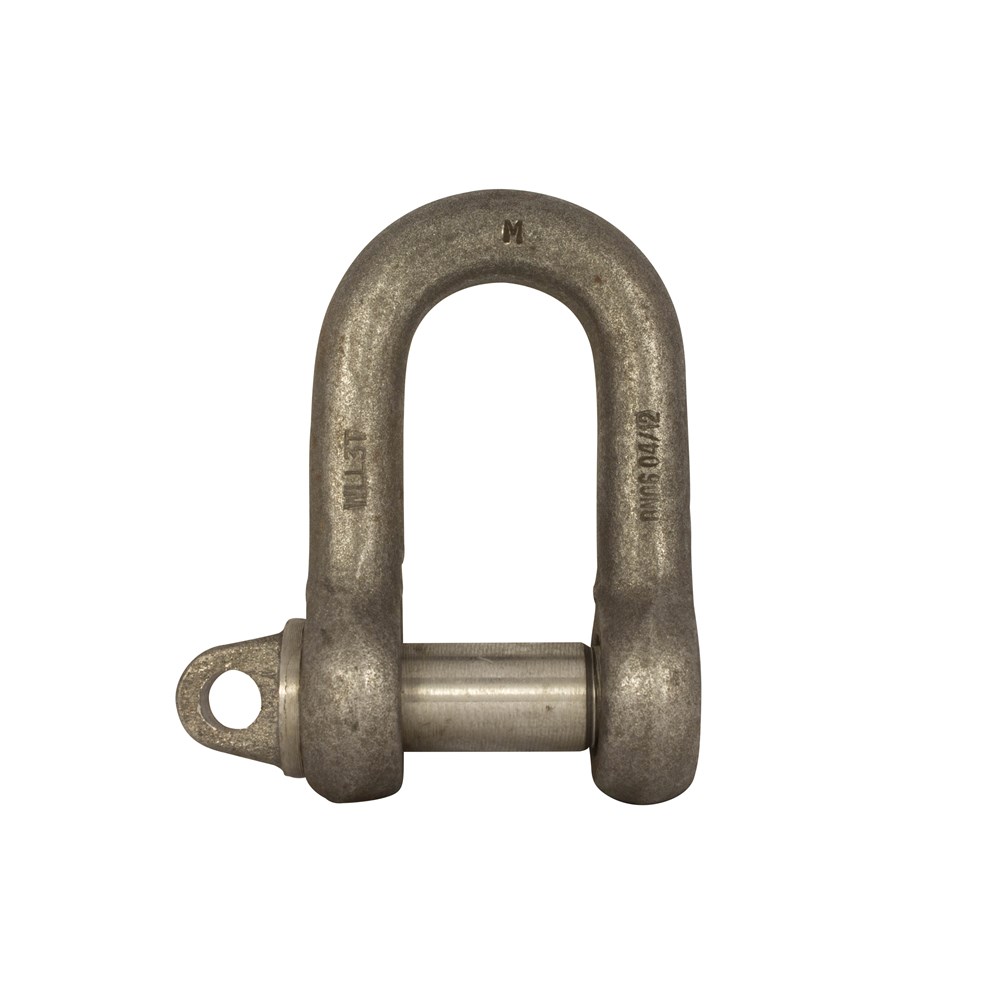

Beaver Grade M Dee Shackle Self Colour 3t
230023per Each
$15.82 inc GSTTrade $14.24, save $1.58Trade accounts save 10%. Apply with your ABN
| WLL | 3t |
| Size | 22mm x 25mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 1.5kg |
| Diameter | 22mm |
| Closing Method | Screw |
| Inside Width (W) | 44mm |
| Pin Diameter (D) | 25mm |
| Diameter Boss (F) | 51mm |
| Inside Length (L) | 83mm |
| Working Load Limit | 3t |
About this product
The Beaver Grade M Dee Shackle in self colour is a rated 3t lifting shackle for straight in-line pulls where you don't want the load shifting sideways. This size runs a 22mm body with a 25mm screw collar pin, giving 44mm inside width and 83mm inside length, so it takes a decent eye or thimble without crowding. Body weight is 1.5kg, and the boss diameter measures 51mm.
Made from Grade 40 alloy steel and left in self colour finish, it is a common pick in commercial fishing and marine work as well as general lifting. Each shackle is stamped with grade, WLL, manufacture date and body ID, so traceability is easy to check before a lift. Complies to AS 2741. Step up or down through the range if 3t isn't the rating you need.
Common questions
- what is the WLL of a 22mm beaver dee shackle
- This one is rated at 3t working load limit, with a 22mm body diameter and a 25mm pin.
- dee shackle vs bow shackle which one do i need
- A dee shape suits straight in-line loading, while a bow shackle handles wider angles and multi-leg connections. Use the dee where the pull stays in line with the body.
- does the beaver grade m dee shackle have markings for traceability
- Yes. Grade, WLL, manufacture date and body ID are stamped on each shackle, and it complies to AS 2741.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
