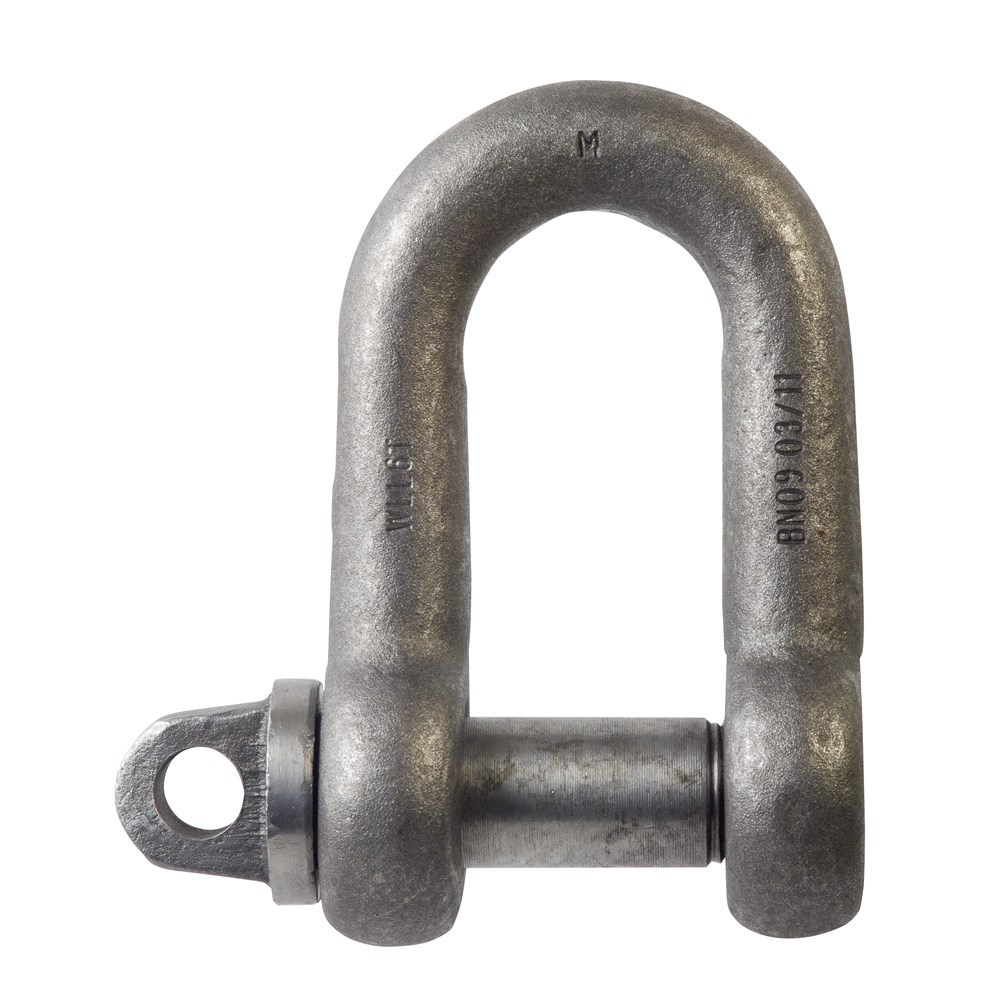

Beaver Grade M Dee Shackle Self Colour 2t
230020per Each
$9.99 inc GSTTrade $8.99, save $1.00Trade accounts save 10%. Apply with your ABN
| WLL | 2t |
| Size | 19mm x 22mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 1.1kg |
| Diameter | 19mm |
| Closing Method | Screw |
| Inside Width (W) | 38mm |
| Pin Diameter (D) | 22mm |
| Diameter Boss (F) | 44mm |
| Inside Length (L) | 73mm |
| Working Load Limit | 2t |
About this product
The Beaver Grade M Dee Shackle Self Colour 2t is a rated screw pin shackle for straight in-line lifting and rigging connections. This size runs a 19mm body with a 22mm pin, giving a 2t working load limit through a 38mm inside width and 73mm inside length. The dee shape keeps the load in line, so it suits single-leg pulls rather than spread slings. At 1.1kg it is easy to handle up a ladder or off a work boat.
Made from Grade 40 alloy steel with a self colour finish, it is a common pick for commercial fishing and marine work as well as general lifting. The 44mm diameter boss and screw collar pin make for quick connection and disconnection on site. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability during inspection. Complies to AS 2741.
Common questions
- what is the WLL of a 19mm dee shackle
- This Beaver Grade M Dee Shackle has a working load limit of 2t, with a 19mm body diameter and a 22mm pin.
- dee shackle vs bow shackle which one do i need
- A dee shackle like this one is shaped for in-line loading on a single leg. If you need to take a sling on an angle or connect more than one leg, go for a bow shackle.
- does a self colour shackle rust
- Self colour has no protective coating, so keep an eye on it in wet or marine conditions. The grade, WLL, manufacture date and body ID stamps on the body let you check identification at inspection.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
