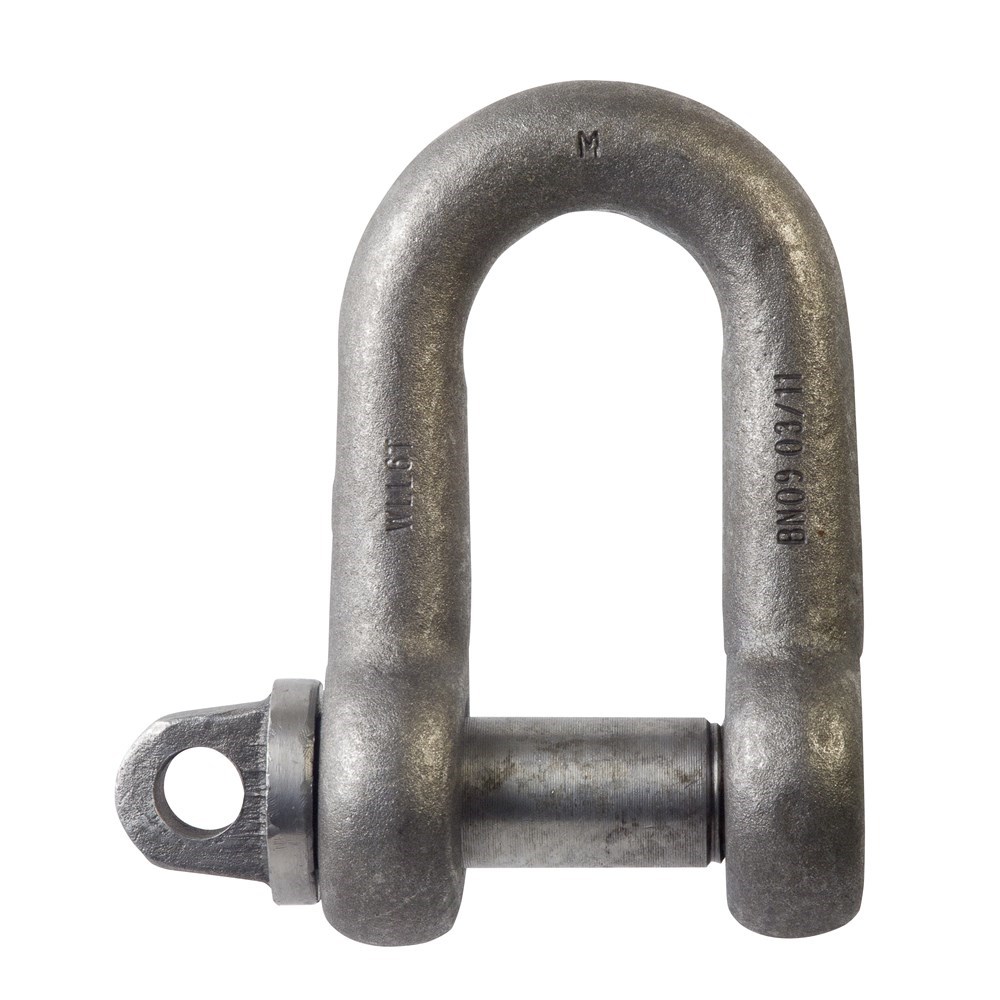

Beaver Grade M Dee Shackle Self Colour 1.5t
230016per Each
$6.63 inc GSTTrade $5.97, save $0.66Trade accounts save 10%. Apply with your ABN
| WLL | 1.5t |
| Size | 16mm x 19mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 0.61kg |
| Diameter | 16mm |
| Closing Method | Screw |
| Inside Width (W) | 32mm |
| Pin Diameter (D) | 19mm |
| Diameter Boss (F) | 38mm |
| Inside Length (L) | 63mm |
| Working Load Limit | 1.5t |
About this product
The Beaver Grade M Dee Shackle Self Colour 1.5t is a rated screw pin shackle for straight in line lifting and rigging connections. At 1.5t working load limit it sits in the mid range of the eight sizes, built on a 16mm body with a 19mm pin, so it handles a decent load without the bulk of the bigger bows. Inside width is 32mm and inside length 63mm, which gives you room for most slings, hooks and eyes in that class. All up it weighs 0.61kg.
Made from Grade 40 alloy steel with a self colour finish, it complies to AS 2741. The screw collar pin makes it quick to fit and pull apart between jobs. Each shackle is stamped with the grade, WLL, manufacture date and body ID, so traceability is easy when the gear gets inspected. Common on commercial fishing boats and marine work as well as general site lifting.
Common questions
- what is the WLL of a 16mm dee shackle
- This Beaver Grade M Dee Shackle has a working load limit of 1.5t on a 16mm body with a 19mm pin diameter.
- what steel are beaver grade m shackles made from
- They are made from Grade 40 alloy steel with a self colour finish, and comply to AS 2741.
- dee shackle or bow shackle for lifting
- A dee shackle like this one suits straight in line loading. If you need to take slings from more than one direction, a bow shape gives you the extra width.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
