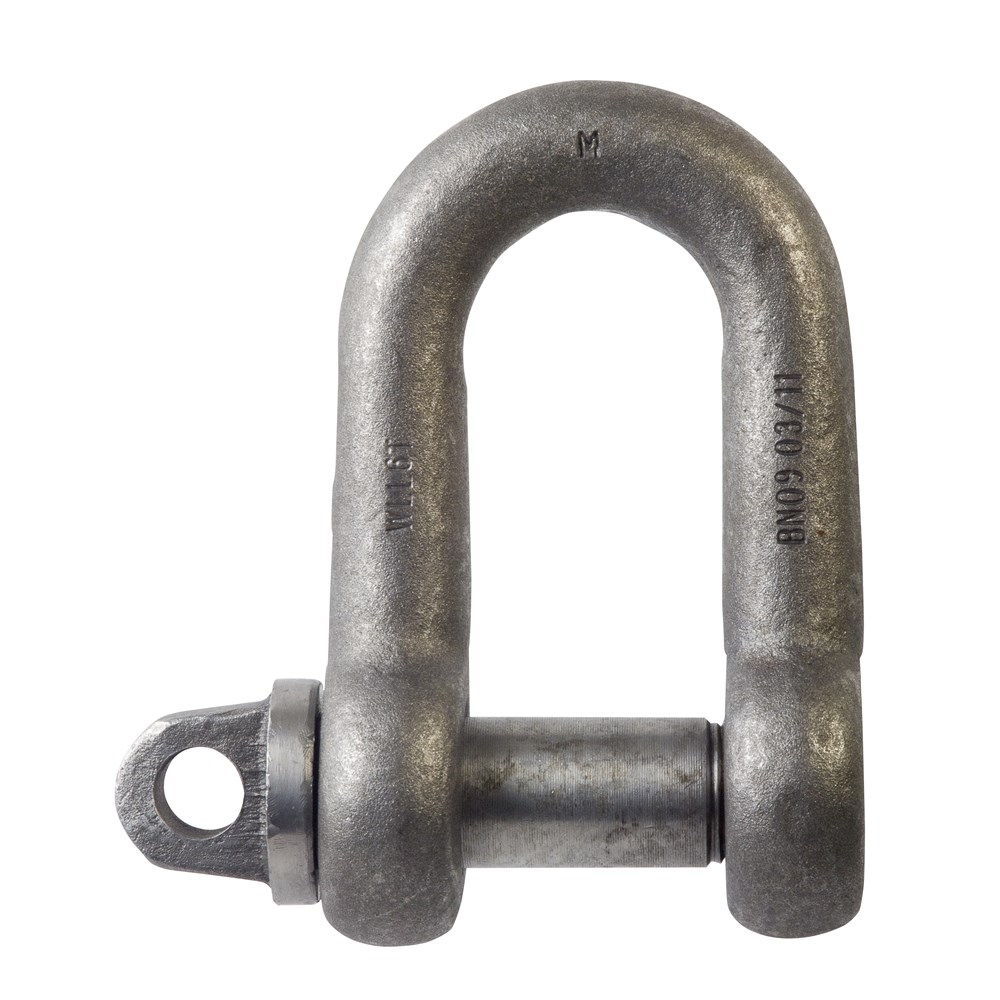

Beaver Grade M Dee Shackle Self Colour 0.5t
230010per Each
$2.10 inc GSTTrade $1.89, save $0.21Trade accounts save 10%. Apply with your ABN
| WLL | 0.5t |
| Size | 10mm x 13mm |
| Type | Grade M |
| Shape | Dee |
| Finish | Self Colour |
| Weight | 0.16kg |
| Diameter | 10mm |
| Closing Method | Screw |
| Inside Width (W) | 19mm |
| Pin Diameter (D) | 13mm |
| Diameter Boss (F) | 25mm |
| Inside Length (L) | 38mm |
| Working Load Limit | 0.5t |
About this product
The Beaver Grade M Dee Shackle Self Colour 0.5t is a rated screw pin shackle for light lifting work, and it is the smallest size in the range. The 10mm x 13mm body carries a 0.5t working load limit, with a 19mm inside width and 38mm inside length, so it suits smaller slings, chain and hardware where the bigger sizes are more shackle than the job needs. At 0.16kg it is easy to handle and quick to fit.
Made from Grade 40 alloy steel with a screw collar pin and a self colour finish, it is commonly used in commercial fishing and marine work as well as general lifting. The 13mm pin diameter and 25mm boss give the body its shape under load. Grade, WLL, manufacture date and body ID are stamped on each shackle for traceability. Complies to AS 2741.
Common questions
- what is the WLL of a 10mm dee shackle
- This Beaver Grade M Dee Shackle has a working load limit of 0.5t, with a 10mm body and 13mm pin.
- is a self colour shackle ok for marine use
- Beaver Grade M self colour dee shackles are commonly used in commercial fishing and marine applications, along with general lifting.
- what's the difference between a dee shackle and a bow shackle
- A dee shackle has a narrower body made for in line loading, so this 0.5t size with its 19mm inside width and 38mm inside length is best where the load pulls straight through.
Full specifications
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
|---|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
|---|---|---|---|---|---|---|
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
