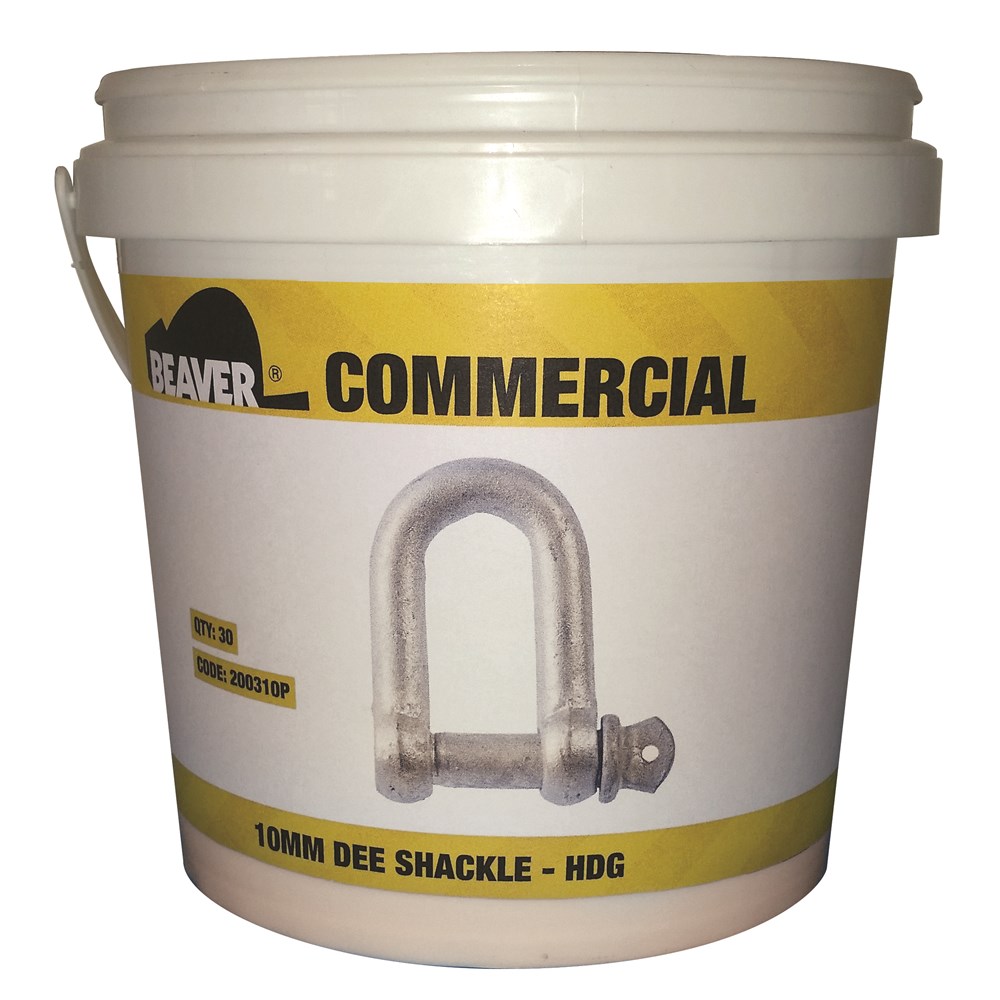

Beaver Hot Dipped Galvanised Commercial Dee Shackles (Pail) 10mm
200310Pper Each
$1.82 inc GSTTrade $1.64, save $0.18Trade accounts save 10%. Apply with your ABN
| D | 11mm |
| F | 19mm |
| L | 38mm |
| W | 19mm |
| d | 9.8mm |
| Size | 10mm |
| Shape | Dee |
| Finish | Galvanised |
| Bucket Weight | 3.36kg |
| Closing Method | Screw |
| QTY per Bucket | 30 |
| Bucket Capacity | 2L |
| Shackle Diameter | 10mm |
About this product
The Beaver Hot Dipped Galvanised Commercial Dee Shackle in 10mm is a screw pin shackle for general anchoring and connecting jobs, not lifting. This size runs a 9.8mm pin, 11mm body diameter, 19mm inside width and 38mm inside length, which makes it a handy mid range option for tying off, securing gear and joining fittings around the yard or site.
It is made from mild steel with a hot dipped galvanised finish, so it holds up better than plain steel when it is left out in the weather. The screw pin means you can pull it apart by hand without tools. Keep in mind these are commercial grade shackles with no rated working load limit, so never put them anywhere a load is being lifted or supported. Dimensions on commercial product can vary by plus or minus 10 per cent.
Common questions
- can you use commercial dee shackles for lifting
- No. These shackles must not be used for any lifting or load bearing applications, they are for general anchoring or connecting objects only.
- what size is a 10mm dee shackle
- The 10mm size has an 11mm body diameter, a 9.8mm pin, 19mm inside width and 38mm inside length. Commercial dimensions may vary by plus or minus 10 per cent.
- what are beaver galvanised dee shackles made of
- Mild steel with a hot dipped galvanised finish, which gives better corrosion resistance for outdoor use.
Full specifications
| Product Code | Size | Finish | Shape | Closing Method | QTY per Bucket | Bucket Capacity | Bucket Weight |
|---|---|---|---|---|---|---|---|
| 200305P | 5mm | Galvanised | Dee | Screw | 50 | 0.75L | 0.68kg |
| 200306P | 6mm | Galvanised | Dee | Screw | 50 | 0.75L | 1.24kg |
| 200308P | 8mm | Galvanised | Dee | Screw | 40 | 1L | 2.2kg |
| 200310P | 10mm | Galvanised | Dee | Screw | 30 | 2L | 3.36kg |
| 200313P | 13mm | Galvanised | Dee | Screw | 30 | 4L | 7kg |
| 200316P | 16mm | Galvanised | Dee | Screw | 20 | 4L | 9.18kg |
| 200320P | 20mm | Galvanised | Dee | Screw | 6 | 2L | 5.8kg |
| 200323P | 23mm | Galvanised | Dee | Screw | 6 | 4L | 5.8kg |
| 200325P | 25mm | Galvanised | Dee | Screw | 6 | 4L | 10.2kg |
| Product Code | Size | W | L | D | d | F |
|---|---|---|---|---|---|---|
| 200305P | 5mm | 11mm | 19mm | 7mm | 4.5mm | 10mm |
| 200306P | 6mm | 13mm | 26mm | 7mm | 5.5mm | 11mm |
| 200308P | 8mm | 18mm | 32mm | 9mm | 7.8mm | 16mm |
| 200310P | 10mm | 19mm | 38mm | 11mm | 9.8mm | 19mm |
| 200313P | 13mm | 29mm | 55mm | 15mm | 13mm | 26mm |
| 200316P | 16mm | 33mm | 60mm | 18mm | 15.5mm | 30mm |
| 200320P | 20mm | 39mm | 75mm | 22mm | 19mm | 33mm |
| 200323P | 23mm | 45mm | 80mm | 25mm | 22mm | 38mm |
| 200325P | 25mm | 45mm | 80mm | 25mm | 22mm | 38mm |
