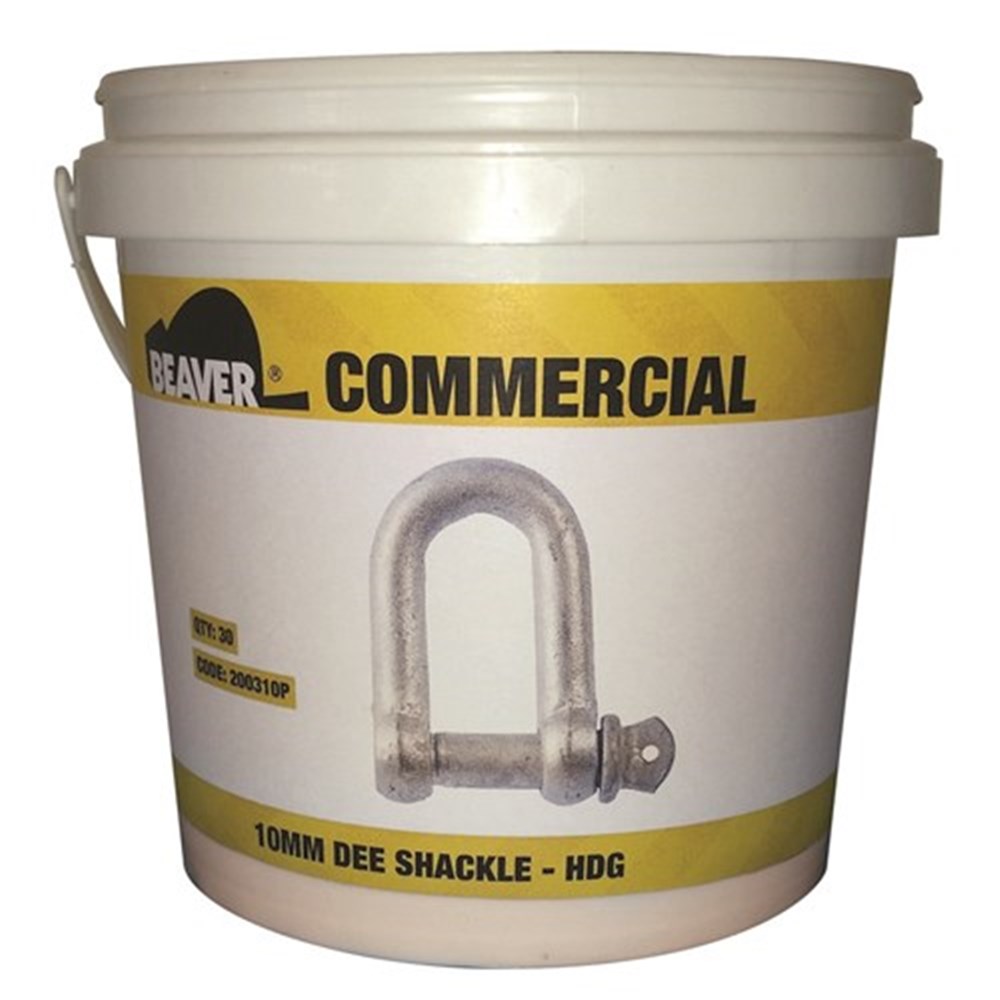

Beaver Hot Dipped Galvanised Commercial Dee Shackles (Pail) 5mm
200305Pper Each
$0.75 inc GSTTrade $0.68, save $0.07Trade accounts save 10%. Apply with your ABN
| D | 7mm |
| F | 10mm |
| L | 19mm |
| W | 11mm |
| d | 4.5mm |
| Size | 5mm |
| Shape | Dee |
| Finish | Galvanised |
| Bucket Weight | 0.68kg |
| Closing Method | Screw |
| QTY per Bucket | 50 |
| Bucket Capacity | 0.75L |
| Shackle Diameter | 5mm |
About this product
The Beaver Hot Dipped Galvanised Commercial Dee Shackle in 5mm is the smallest size in the range, suited to light general anchoring and connecting work where a bigger shackle would just be overkill. The body measures 19mm long and 11mm wide, with a 4.5mm pin diameter, 7mm D dimension and 10mm across F. Screw pin closing method, so you can pull it apart by hand and reuse it on the next job.
Made from mild steel with a hot dipped galvanised finish for better corrosion resistance outdoors. Commercial dimensions can vary by plus or minus 10 percent on the figures listed. Important: this is a commercial shackle, not a rated one. It must not be used for lifting or any load bearing application. Handy for tie downs, gates, signage, tarps and general fit out work around the yard or site.
Common questions
- can you use 5mm commercial dee shackles for lifting
- No. These commercial shackles must not be used for any lifting or load bearing application, so use a rated lifting shackle for that work.
- what is a beaver commercial dee shackle made of
- Mild steel with a hot dipped galvanised finish, which gives it better corrosion resistance for outdoor use.
- what size is the 5mm beaver dee shackle
- It has a 5mm shackle diameter with a 4.5mm pin, 19mm length and 11mm width. Commercial dimensions can vary by plus or minus 10 percent.
Full specifications
| Product Code | Size | Finish | Shape | Closing Method | QTY per Bucket | Bucket Capacity | Bucket Weight |
|---|---|---|---|---|---|---|---|
| 200305P | 5mm | Galvanised | Dee | Screw | 50 | 0.75L | 0.68kg |
| 200306P | 6mm | Galvanised | Dee | Screw | 50 | 0.75L | 1.24kg |
| 200308P | 8mm | Galvanised | Dee | Screw | 40 | 1L | 2.2kg |
| 200310P | 10mm | Galvanised | Dee | Screw | 30 | 2L | 3.36kg |
| 200313P | 13mm | Galvanised | Dee | Screw | 30 | 4L | 7kg |
| 200316P | 16mm | Galvanised | Dee | Screw | 20 | 4L | 9.18kg |
| 200320P | 20mm | Galvanised | Dee | Screw | 6 | 2L | 5.8kg |
| 200323P | 23mm | Galvanised | Dee | Screw | 6 | 4L | 5.8kg |
| 200325P | 25mm | Galvanised | Dee | Screw | 6 | 4L | 10.2kg |
| Product Code | Size | W | L | D | d | F |
|---|---|---|---|---|---|---|
| 200305P | 5mm | 11mm | 19mm | 7mm | 4.5mm | 10mm |
| 200306P | 6mm | 13mm | 26mm | 7mm | 5.5mm | 11mm |
| 200308P | 8mm | 18mm | 32mm | 9mm | 7.8mm | 16mm |
| 200310P | 10mm | 19mm | 38mm | 11mm | 9.8mm | 19mm |
| 200313P | 13mm | 29mm | 55mm | 15mm | 13mm | 26mm |
| 200316P | 16mm | 33mm | 60mm | 18mm | 15.5mm | 30mm |
| 200320P | 20mm | 39mm | 75mm | 22mm | 19mm | 33mm |
| 200323P | 23mm | 45mm | 80mm | 25mm | 22mm | 38mm |
| 200325P | 25mm | 45mm | 80mm | 25mm | 22mm | 38mm |
