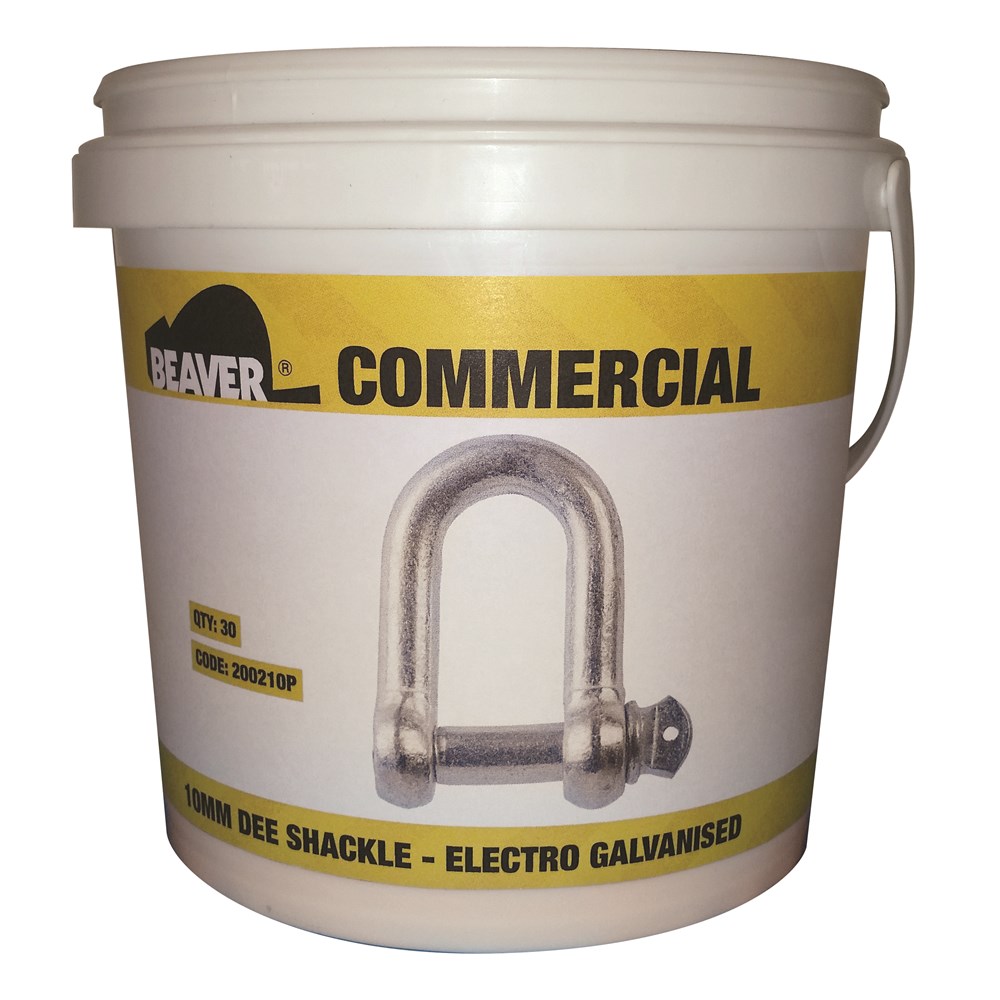

Beaver Electro Galvanised Commercial Dee Shackles (Pail) 10mm
200210Pper Each
$1.36 inc GSTTrade $1.22, save $0.14Trade accounts save 10%. Apply with your ABN
| Size | 10mm |
| Shape | Dee |
| Finish | Electro Galvanised |
| Bucket Weight | 3.24kg |
| Closing Method | Screw |
| QTY per Bucket | 30 |
| Bucket Capacity | 2L |
| Shackle Diameter | 10mm |
About this product
The Beaver Electro Galvanised Commercial Dee Shackle in 10mm is a screw pin shackle for general anchoring and connecting jobs around the yard, ute or site. At 10mm shackle diameter it sits in the middle of the range, big enough to handle heavier tie-down and securing work than the smaller pins while still being easy to thread by hand.
Made from mild steel with an electro galvanised finish for everyday corrosion resistance. The dee shape keeps the load in line with the pin, and the screw pin means you can open it up and reconnect as often as the job needs. Being a commercial product, it must not be used for lifting or load bearing work, and actual dimensions may vary by plus or minus 10 percent.
Common questions
- can you use commercial dee shackles for lifting
- No. These are commercial shackles for general anchoring or connecting only, and must not be used for any lifting or load bearing applications.
- what is a 10mm dee shackle made of
- Mild steel with an electro galvanised finish, which gives it reasonable corrosion resistance for general outdoor use.
- what size is the pin on a 10mm beaver dee shackle
- The shackle diameter is 10mm and it uses a screw pin closing method. Keep in mind commercial specs can vary by plus or minus 10 percent on actual dimensions.
Full specifications
| Product Code | Size | Finish | Shape | Closing Method | QTY per Bucket | Bucket Capacity | Bucket Weight |
|---|---|---|---|---|---|---|---|
| 200205P | 5mm | Electro Galvanised | Dee | Screw | 50 | 0.75L | 0.7kg |
| 200206P | 6mm | Electro Galvanised | Dee | Screw | 50 | 0.75L | 1.24kg |
| 200208P | 8mm | Electro Galvanised | Dee | Screw | 40 | 1L | 2.2kg |
| 200210P | 10mm | Electro Galvanised | Dee | Screw | 30 | 2L | 3.24kg |
| 200213P | 13mm | Electro Galvanised | Dee | Screw | 30 | 4L | 6.88kg |
| 200216P | 16mm | Electro Galvanised | Dee | Screw | 20 | 4L | 8.89kg |
| 200220P | 20mm | Electro Galvanised | Dee | Screw | 6 | 2L | 4.88kg |
| 200225P | 25mm | Electro Galvanised | Dee | Screw | 6 | 4L | 9.86kg |
| Size | W | L | D | d | F |
|---|---|---|---|---|---|
| 5mm | 11mm | 19mm | 7mm | 4.5mm | 10mm |
| 6mm | 13mm | 26mm | 7mm | 5.5mm | 11mm |
| 8mm | 18mm | 32mm | 9mm | 7.8mm | 16mm |
| 10mm | 19mm | 38mm | 11mm | 9.8mm | 19mm |
| 13mm | 29mm | 55mm | 15mm | 13mm | 26mm |
| 16mm | 33mm | 60mm | 18mm | 15.5mm | 30mm |
| 20mm | 39mm | 75mm | 22mm | 19mm | 33mm |
| 25mm | 50mm | 90mm | 27mm | 24mm | 45mm |
Questions about this equipment? Send us a message and we’ll check it against the job.
