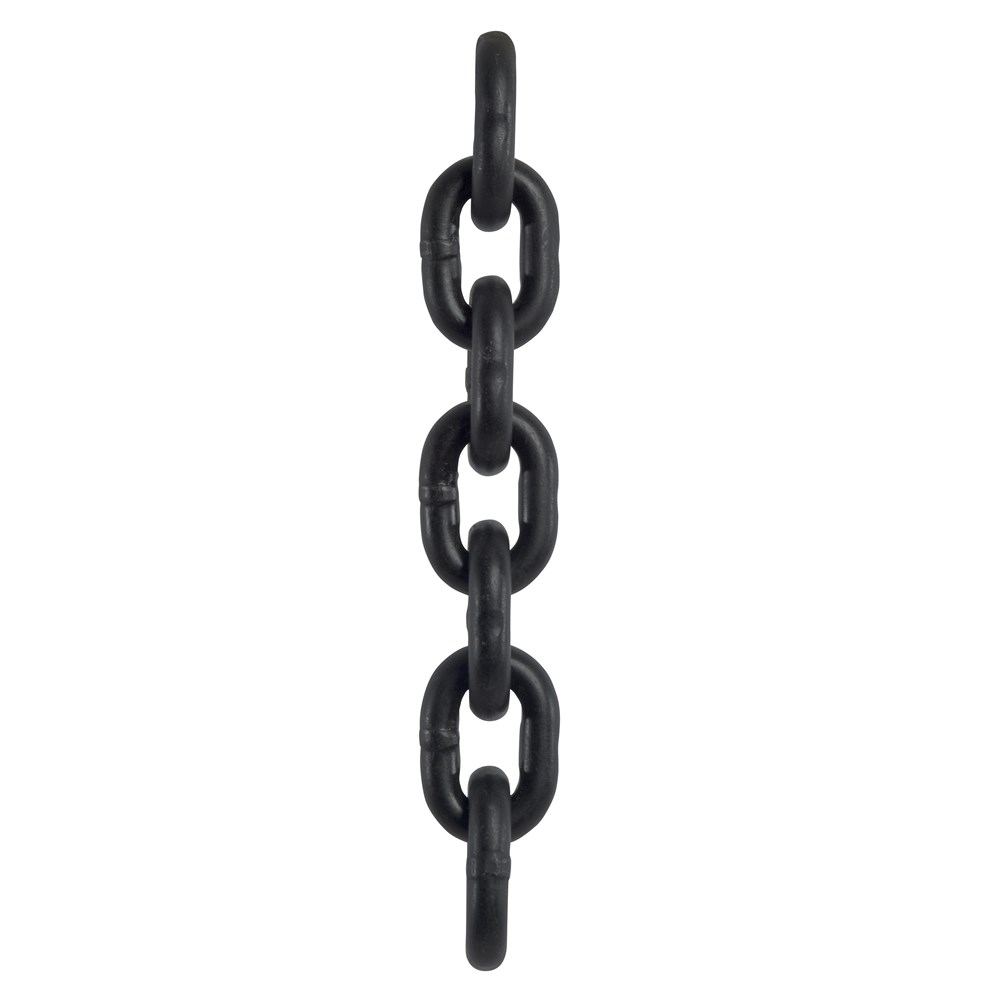

Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain 16mm
148016per Each
$68.60 inc GSTTrade $61.74, save $6.86Trade accounts save 10%. Apply with your ABN
| F | 59.2mm |
| R | 48mm |
| S | 16mm |
| WLL | 8t |
| Finish | Self Colour |
| m/100kg | 18m/100kg |
| Nominal Size | 16mm |
About this product
Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain in 16mm is heavy lift chain for slings and crane work where an 8t working load limit is needed. It is the larger end of the Beaver Grade 80 range, made from heat treated alloy steel and left in a self colour finish. Pitch is 48mm, with an outside width of 59.2mm across the link. At 18m per 100kg, it carries serious capacity for its weight.
Chain is stamped every 50cm along its length, so identification and inspection are straightforward once it is in service. Markings follow Australian standards and the chain complies to AS 2321, with quality testing carried out through manufacture. Suited to mine site, construction and workshop lifting where loads are large and the gear cops regular use. Keep an eye on link wear and stretch at the pitch, and pull it from service if anything looks off.
Common questions
- what is the WLL of 16mm grade 80 chain
- This 16mm Beaver Grade 80 (T) chain has a working load limit of 8t. It complies to AS 2321.
- is beaver grade 80 chain made from alloy steel
- Yes, it is manufactured from heat treated alloy steel, which is what gives Grade 80 its strength for the size.
- what does self colour finish mean on lifting chain
- Self colour means the chain is supplied without a coating or plating over the steel. It suits general heavy lifting where a plated finish is not required.
- how do I identify grade 80 lifting chain on site
- Beaver Grade 80 (T) chain is stamped at 50cm intervals along its entire length, with markings in accordance with Australian standards.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 148006 | 6mm | 1.1t | 6mm | 18mm | 22.2mm | Self Colour | 125m/100kg |
| 148007 | 7mm | 1.5t | 7mm | 21mm | 25.9mm | Self Colour | 92m/100kg |
| 148008 | 8mm | 2t | 8mm | 24mm | 29.6mm | Self Colour | 70m/100kg |
| 148010 | 10mm | 3.2t | 10mm | 30mm | 37mm | Self Colour | 45m/100kg |
| 148013 | 13mm | 5.3t | 13mm | 39mm | 48.1mm | Self Colour | 26m/100kg |
| 148016 | 16mm | 8t | 16mm | 48mm | 59.2mm | Self Colour | 18m/100kg |
| 148020 | 20mm | 12.5t | 20mm | 60mm | 74mm | Self Colour | 11m/100kg |
| 148022 | 22mm | 15t | 22mm | 66mm | 81.4mm | Self Colour | 9m/100kg |
| 148026 | 26mm | 21.2t | 26mm | 78mm | 96.2mm | Self Colour | 7m/100kg |
| 148032 | 32mm | 31.5t | 32mm | 96mm | 118mm | Self Colour | 4m/100kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
