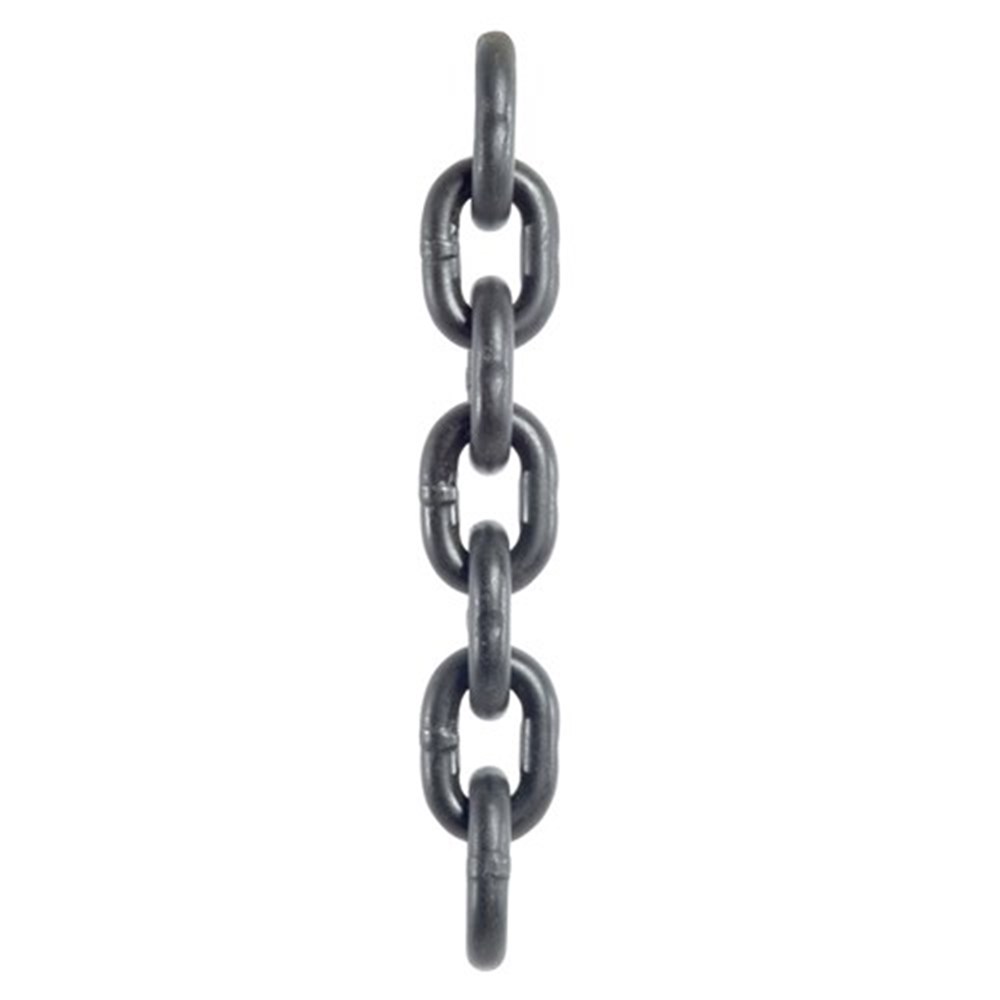

Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain 10mm
148010per Each
$23.59 inc GSTTrade $21.23, save $2.36Trade accounts save 10%. Apply with your ABN
| F | 37mm |
| R | 30mm |
| S | 10mm |
| WLL | 3.2t |
| Finish | Self Colour |
| m/100kg | 45m/100kg |
| Nominal Size | 10mm |
About this product
Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain in 10mm is heat treated alloy chain for building slings and heavy lifting jobs, rated to a 3.2t working load limit. The 10mm size sits in the middle of the range, so it handles decent loads without the weight of the bigger sections. Pitch is 30mm with an outside width of 37mm, and it runs about 45m per 100kg.
The self colour finish leaves the steel bare, so wear, stretch and nicks are easy to pick up on inspection. Grade 80 markings are stamped every 50cm along the full length, which makes identification straightforward once the chain is in service. Complies to AS 2321. Suits fabricated chain slings, crane work and general rigging on site or underground.
Common questions
- what is the WLL of 10mm grade 80 chain
- This 10mm Beaver Grade 80 (T) chain has a working load limit of 3.2t. Sling configuration and angle will change the rated capacity of the finished assembly.
- what standard does beaver grade 80 chain comply with
- It complies to AS 2321, and carries Grade 80 markings stamped at 50cm intervals along the length for identification.
- what does self colour finish mean on lifting chain
- Self colour means the alloy steel is left bare with no coating or plating. It makes wear, gouges and elongation easy to spot during inspection.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 148006 | 6mm | 1.1t | 6mm | 18mm | 22.2mm | Self Colour | 125m/100kg |
| 148007 | 7mm | 1.5t | 7mm | 21mm | 25.9mm | Self Colour | 92m/100kg |
| 148008 | 8mm | 2t | 8mm | 24mm | 29.6mm | Self Colour | 70m/100kg |
| 148010 | 10mm | 3.2t | 10mm | 30mm | 37mm | Self Colour | 45m/100kg |
| 148013 | 13mm | 5.3t | 13mm | 39mm | 48.1mm | Self Colour | 26m/100kg |
| 148016 | 16mm | 8t | 16mm | 48mm | 59.2mm | Self Colour | 18m/100kg |
| 148020 | 20mm | 12.5t | 20mm | 60mm | 74mm | Self Colour | 11m/100kg |
| 148022 | 22mm | 15t | 22mm | 66mm | 81.4mm | Self Colour | 9m/100kg |
| 148026 | 26mm | 21.2t | 26mm | 78mm | 96.2mm | Self Colour | 7m/100kg |
| 148032 | 32mm | 31.5t | 32mm | 96mm | 118mm | Self Colour | 4m/100kg |
