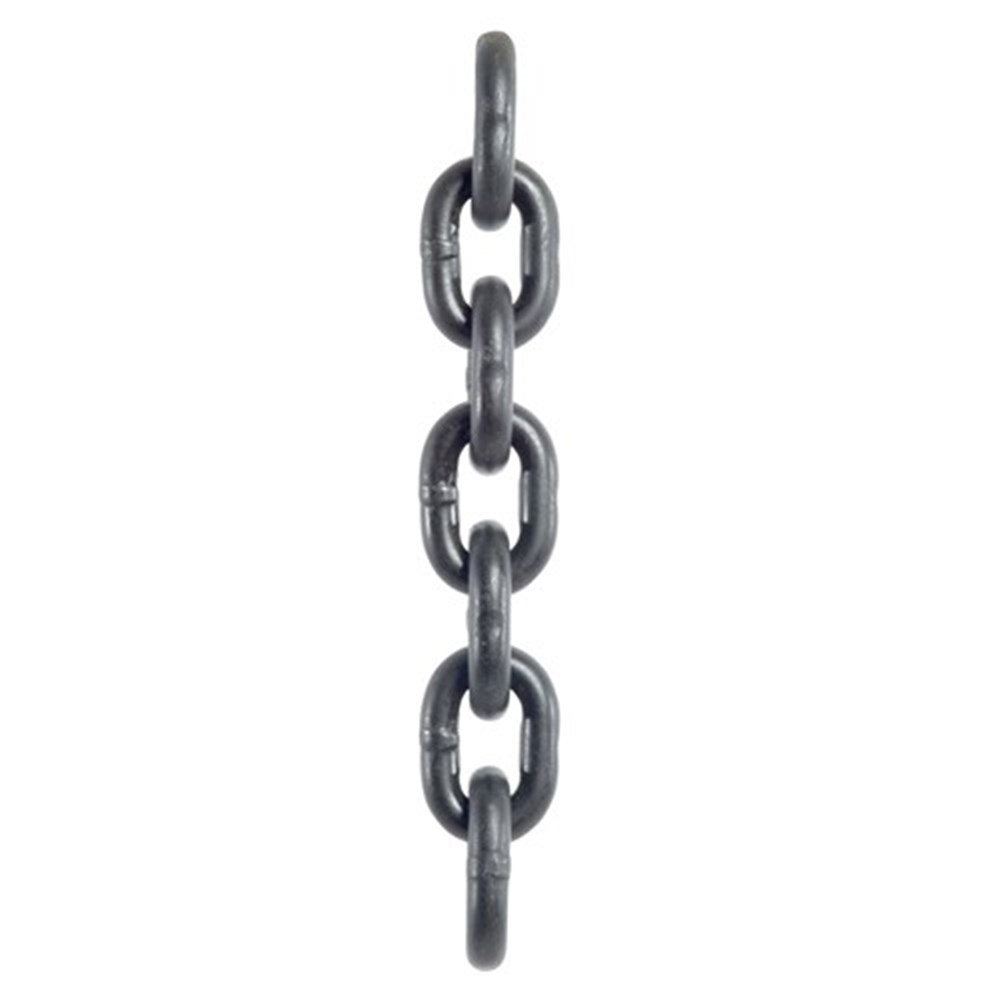

Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain 7mm
148007per Each
$10.14 inc GSTTrade $9.13, save $1.01Trade accounts save 10%. Apply with your ABN
| F | 25.9mm |
| R | 21mm |
| S | 7mm |
| WLL | 1.5t |
| Finish | Self Colour |
| m/100kg | 92m/100kg |
| Nominal Size | 7mm |
About this product
Beaver Grade 80 (T) Self Coloured B-Alloy Lifting Chain in 7mm is the light end of the range, rated to a 1.5t working load limit for chain slings and general lifting work. The 7mm chain runs 92m/100kg, so it is easy to handle overhead and quick to rig without wearing out the crew. Inside pitch measures 21mm with an outside width of 25.9mm, which suits the smaller Grade 80 hooks and fittings.
Made from heat treated alloy steel and left in a self colour finish, it complies to AS 2321 and carries markings in line with Australian standards. Stamping every 50cm along the full length makes identification straightforward during inspection. Step up a size if you need more than 1.5t, or stay with the 7mm where weight and handling matter most.
Common questions
- what is the WLL of 7mm grade 80 chain
- This 7mm Beaver Grade 80 chain has a working load limit of 1.5t. Grade 80 ratings depend on the sling configuration, so check your sling design before use.
- is beaver grade 80 chain AS 2321 compliant
- Yes, the Beaver Grade 80 (T) chain complies to AS 2321 and carries markings in accordance with Australian standards.
- how heavy is 7mm grade 80 lifting chain
- The 7mm size works out at 92m per 100kg, which makes it one of the lighter options in the Beaver Grade 80 range to handle and rig.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 148006 | 6mm | 1.1t | 6mm | 18mm | 22.2mm | Self Colour | 125m/100kg |
| 148007 | 7mm | 1.5t | 7mm | 21mm | 25.9mm | Self Colour | 92m/100kg |
| 148008 | 8mm | 2t | 8mm | 24mm | 29.6mm | Self Colour | 70m/100kg |
| 148010 | 10mm | 3.2t | 10mm | 30mm | 37mm | Self Colour | 45m/100kg |
| 148013 | 13mm | 5.3t | 13mm | 39mm | 48.1mm | Self Colour | 26m/100kg |
| 148016 | 16mm | 8t | 16mm | 48mm | 59.2mm | Self Colour | 18m/100kg |
| 148020 | 20mm | 12.5t | 20mm | 60mm | 74mm | Self Colour | 11m/100kg |
| 148022 | 22mm | 15t | 22mm | 66mm | 81.4mm | Self Colour | 9m/100kg |
| 148026 | 26mm | 21.2t | 26mm | 78mm | 96.2mm | Self Colour | 7m/100kg |
| 148032 | 32mm | 31.5t | 32mm | 96mm | 118mm | Self Colour | 4m/100kg |
