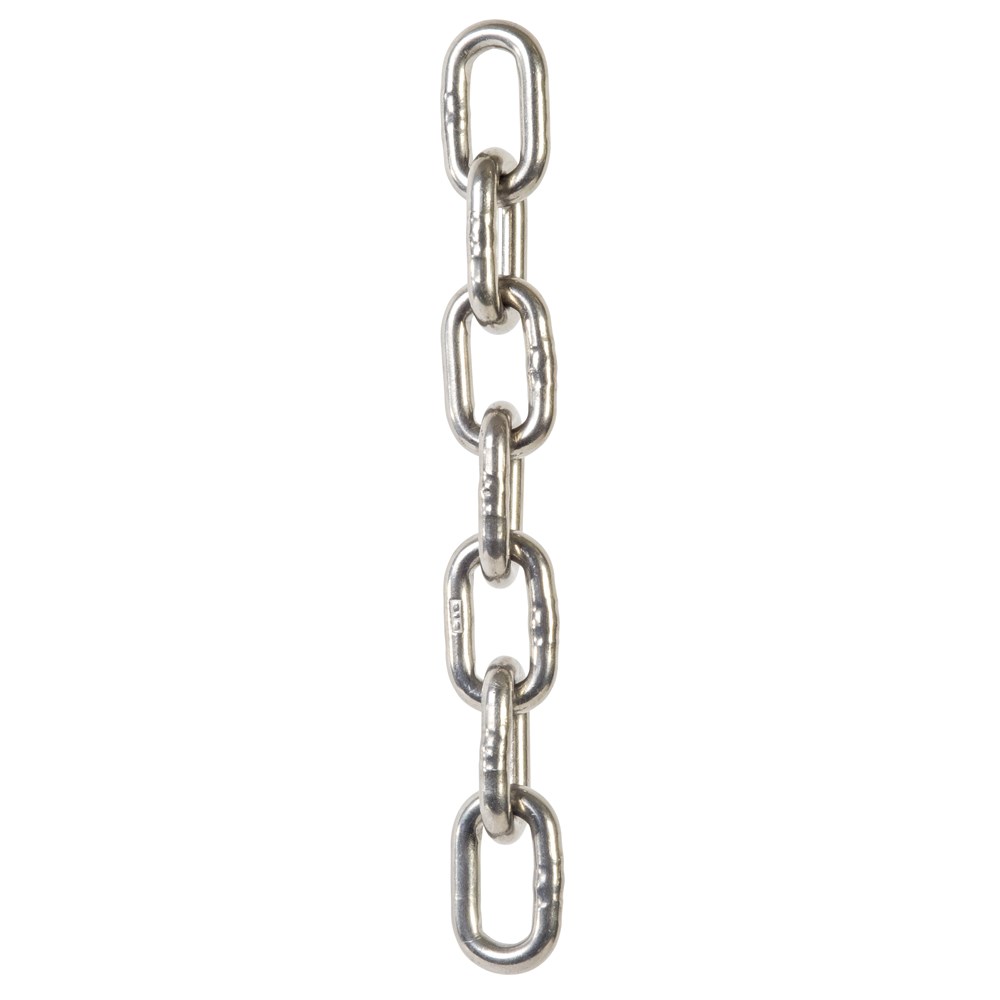

Beaver G316 Stainless Steel Chain - Regular Link 13mm
146113per Each
$115.64 inc GSTTrade $104.08, save $11.56Trade accounts save 10%. Apply with your ABN
| F | 46.1mm |
| R | 49.1mm |
| S | 13mm |
| Finish | Stainless Steel |
| m/100kg | 28.7m/100kg |
| Nominal Size | 13mm |
About this product
The Beaver G316 Stainless Steel Chain - Regular Link 13mm is a general purpose chain for marine and other non lifting work where rust is the main enemy. At 13mm material size it is the heavier end of the range, with a 46.1mm inside link length and 49.1mm outside width. It runs at 28.7m per 100kg, so it carries real weight compared to the lighter sizes.
Made from 316 grade stainless steel, it holds up well against salt water, spray and damp air. That makes it a sensible pick for jetties, boats, barriers and gear that lives outdoors. Worth being clear on one point, this chain is not rated for lifting, so keep it to restraint, guarding and similar duties. If you need the same corrosion resistance in a lighter link, the smaller sizes in the range cover it.
Common questions
- is beaver g316 13mm stainless chain rated for lifting
- No. This chain is for marine and other non lifting applications only, so use rated lifting chain where loads are being suspended.
- what grade stainless is beaver g316 chain made from
- It is manufactured from 316 grade stainless steel, which gives it high resistance to corrosion.
- what are the link dimensions of 13mm regular link chain
- The 13mm size has a material size of 13mm, an F dimension of 46.1mm and an R dimension of 49.1mm.
Full specifications
| Product code | Nominal Size | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|
| 146102 | 2mm | 2mm | 14.8mm | 8.25mm | Stainless Steel | 1666.6m/100kg |
| 146104 | 4mm | 4mm | 18.6mm | 16mm | Stainless Steel | 384.6m/100kg |
| 146106 | 6mm | 6mm | 26mm | 23.5mm | Stainless Steel | 137.3m/100kg |
| 146108 | 8mm | 8mm | 32.2mm | 29.5mm | Stainless Steel | 80m/100kg |
| 146110 | 10mm | 10mm | 39mm | 36.2mm | Stainless Steel | 49.6m/100kg |
| 146113 | 13mm | 13mm | 49.1mm | 46.1mm | Stainless Steel | 28.7m/100kg |
