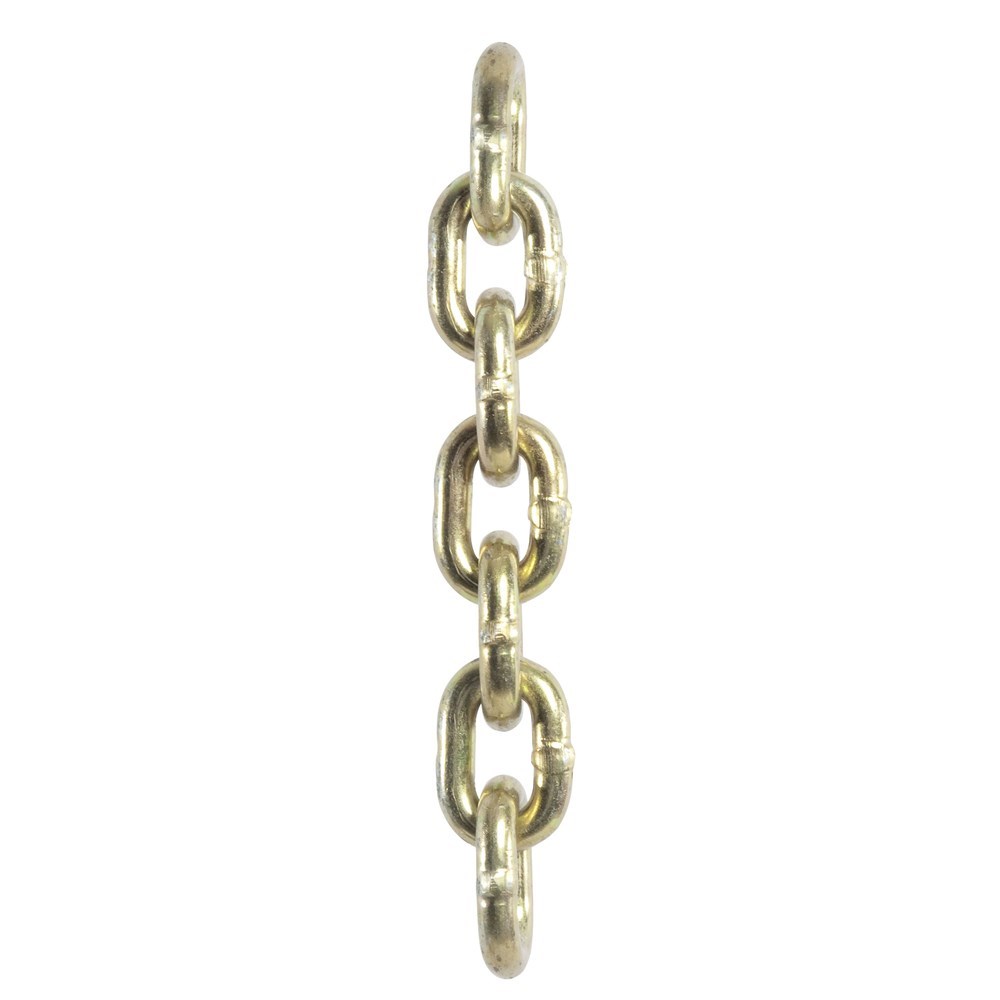

Beaver G70 Zinc Dichromate Transport Chain (Gold) 10mm
145010per Each
$18.14 inc GSTTrade $16.33, save $1.81Trade accounts save 10%. Apply with your ABN
| F | 35mm |
| R | 30mm |
| S | 10mm |
| Finish | Zinc Dichromate |
| m/100kg | 45m/100kg |
| Chain Size | 10mm |
| Nominal Size | 10mm |
| Lashing Capacity | 6t |
About this product
The Beaver G70 Zinc Dichromate Transport Chain (Gold) in 10mm is a load restraint chain for tying down loads on trucks, trailers and floats. With a 6t lashing capacity, this is the heavier end of the range, suited to plant, steel and other loads that need more holding power than the smaller sizes. Link dimensions are 35mm F and 30mm R on 10mm material, and it runs at roughly 45m per 100kg.
The zinc dichromate gold plating makes Grade 70 chain easy to pick out on a deck from a distance, which helps when crews are checking restraint before a run. Every length is marked Grade 70 along with the size and lashing capacity. High tensile to AS/NZS 4344. This is transport chain only, so keep it off lifting jobs and use rated lifting gear instead.
Common questions
- what is the lashing capacity of 10mm g70 transport chain
- This 10mm Beaver G70 chain has a lashing capacity of 6t. It is marked with the grade, size and lashing capacity so crews can check it on site.
- can you use g70 transport chain for lifting
- No. Grade 70 transport chain is for lashing and tie-down work only, not lifting. Use purpose-rated lifting chain and fittings for any lift.
- why is g70 transport chain gold
- The gold colour comes from the zinc dichromate plating, which makes Grade 70 chain easy to identify from a distance when checking load restraint.
Full specifications
| Product code | Nominal Size | Lashing Capacity | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 145006 | 6mm | 2.3t | 6mm | 18.5mm | 20mm | Zinc Dichromate | 125m/100kg |
| 145008 | 8mm | 3.8t | 8mm | 24mm | 28mm | Zinc Dichromate | 70m/100kg |
| 145010 | 10mm | 6t | 10mm | 30mm | 35mm | Zinc Dichromate | 45m/100kg |
| 145013 | 13mm | 9t | 13mm | 39mm | 45.5mm | Zinc Dichromate | 26.8m/100kg |
