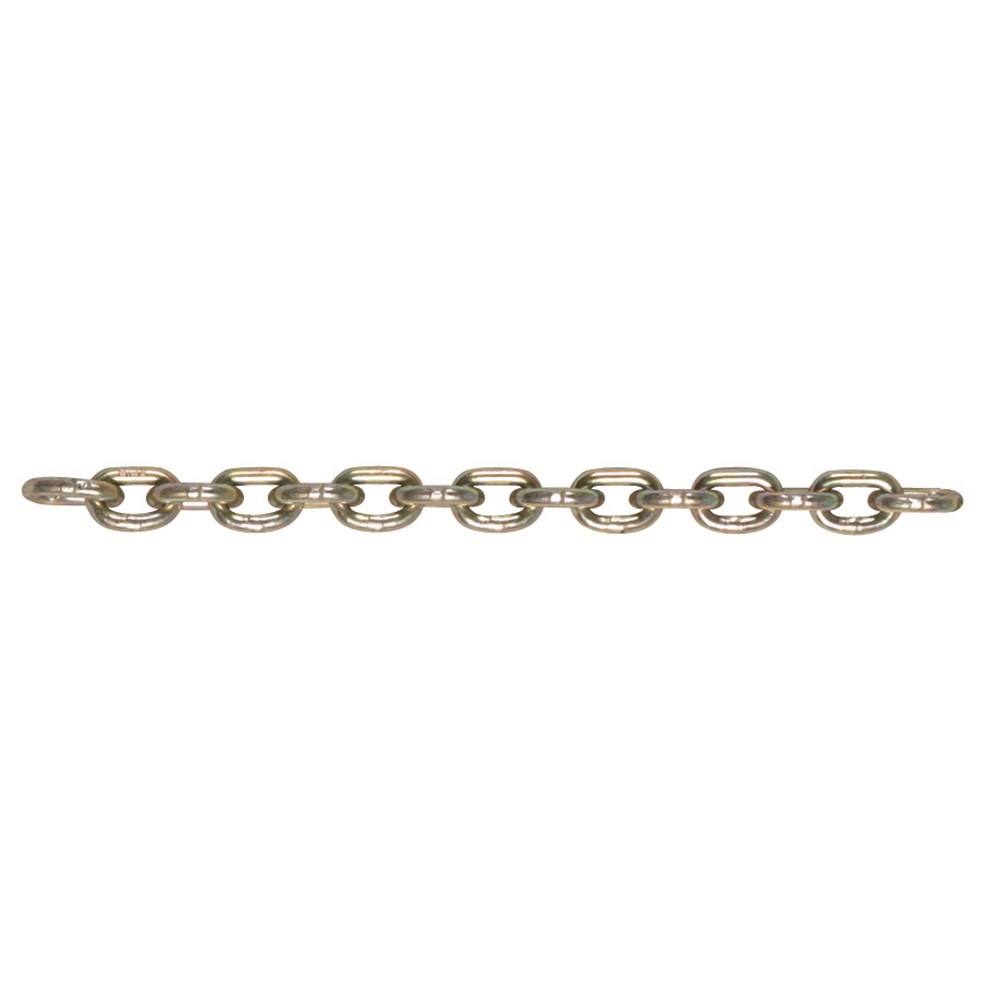

Beaver G70 Zinc Dichromate Transport Chain (Gold) 8mm
145008per Each
$11.73 inc GSTTrade $10.56, save $1.17Trade accounts save 10%. Apply with your ABN
| F | 28mm |
| R | 24mm |
| S | 8mm |
| Finish | Zinc Dichromate |
| m/100kg | 70m/100kg |
| Chain Size | 8mm |
| Nominal Size | 8mm |
| Lashing Capacity | 3.8t |
About this product
The Beaver G70 Zinc Dichromate Transport Chain (Gold) in 8mm is a tie-down chain for strapping loads onto trucks, trailers and floats. It carries a lashing capacity of 3.8t, which makes 8mm the middle-weight pick for general freight, plant and steel work where 6mm runs out of capacity. Link geometry is 28mm pitch and 24mm width, and the chain is high tensile to AS/NZS 4344.
The gold zinc dichromate plating is the giveaway. You can pick Grade 70 out of a bin of chain from across the yard, and each length is marked with the grade, size and lashing capacity so a load inspection is quick. At roughly 70m per 100kg, the 8mm sits at a weight a driver can still throw over a load by hand. Restraint only. Never use G70 transport chain for lifting.
Common questions
- what is the lashing capacity of 8mm g70 transport chain
- This 8mm Beaver G70 chain has a lashing capacity of 3.8t. It is marked with the grade, chain size and lashing capacity for easy checking.
- can you use g70 transport chain for lifting
- No. G70 transport chain is made for lashing and tying down loads on transport equipment, not for lifting.
- why is g70 transport chain gold
- The yellow chromate, or gold, zinc dichromate plating makes Grade 70 chain easy to identify at a distance so it does not get mixed up with lifting chain.
Full specifications
| Product code | Nominal Size | Lashing Capacity | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 145006 | 6mm | 2.3t | 6mm | 18.5mm | 20mm | Zinc Dichromate | 125m/100kg |
| 145008 | 8mm | 3.8t | 8mm | 24mm | 28mm | Zinc Dichromate | 70m/100kg |
| 145010 | 10mm | 6t | 10mm | 30mm | 35mm | Zinc Dichromate | 45m/100kg |
| 145013 | 13mm | 9t | 13mm | 39mm | 45.5mm | Zinc Dichromate | 26.8m/100kg |
