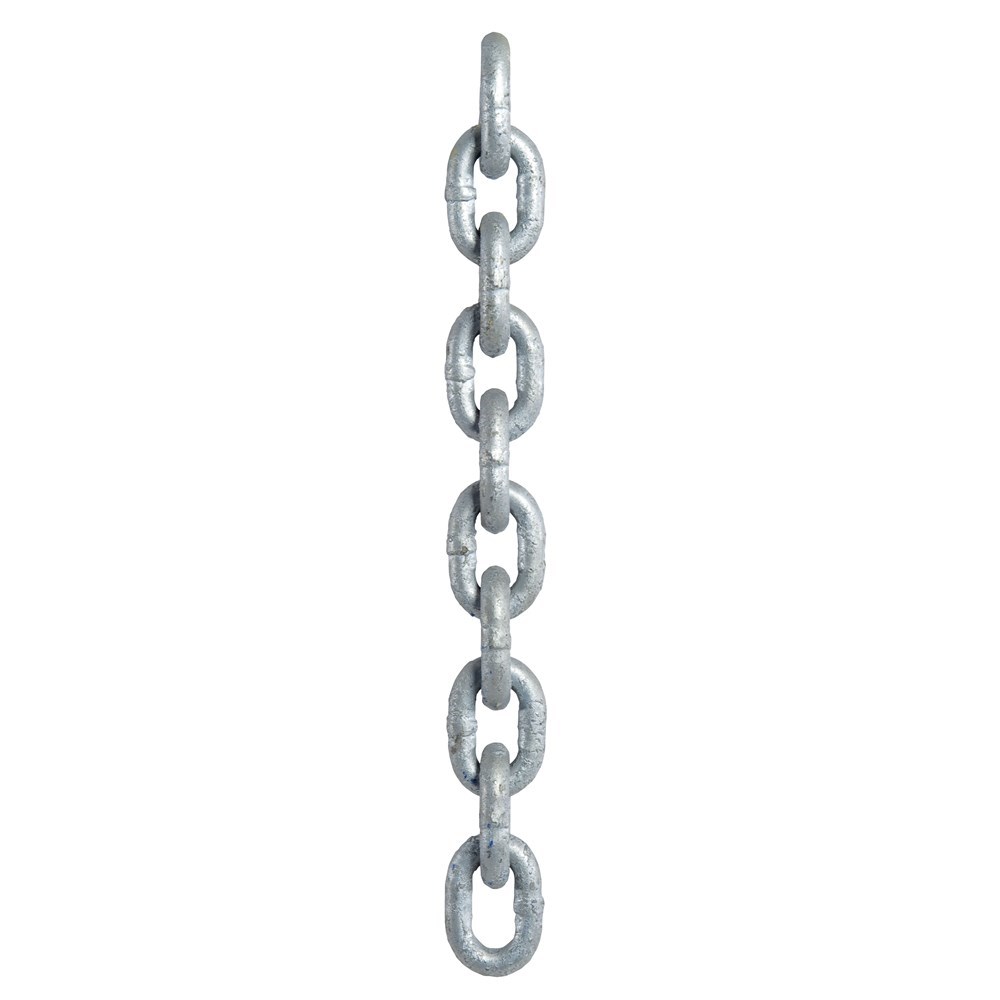

Beaver Grade L Galvanised Short Link Chain 20mm
143320per Each
$70.78 inc GSTTrade $63.70, save $7.08Trade accounts save 10%. Apply with your ABN
| F | 68.5mm |
| R | 59.2mm |
| S | 20mm |
| WLL | 4.03t |
| Finish | Galvanised |
| m/100kg | 11.1m/100kg |
| Nominal Size | 20mm |
About this product
The Beaver Grade L Galvanised Short Link Chain 20mm is a tested commercial chain for moorings, anchor chain and general marine restraint work. It is the heaviest pull in this range, with a 20mm nominal size and a working load limit of 4.03t, so it suits jobs where the smaller sizes are working too close to their limit. Link geometry runs 68.5mm outside length and 59.2mm inside, on 20mm material.
Made from Grade 30 low carbon steel and complies with the requirements of AS 2321. The galvanised finish is there to slow down rust in wet and salty conditions, which is where this chain spends most of its life. At 11.1m/100kg it is a solid, heavy chain to handle. Note it is not recommended for lifting, so keep it off the hook and use a rated lifting chain for overhead work.
Common questions
- what is the WLL of 20mm grade L chain
- This 20mm Beaver Grade L chain has a working load limit of 4.03t. That rating is for restraint and mooring type work, not lifting.
- can you use grade L chain for lifting
- No. Grade L chain is not recommended for lifting, so use a chain rated for overhead lifting instead.
- what is beaver grade L chain made from
- Grade 30 low carbon steel with a galvanised finish, and it complies with the requirements of AS 2321.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 143306 | 6mm | 0.4t | 6.3mm | 18.8mm | 21.6mm | Galvanised | 110m/100kg |
| 143308 | 8mm | 0.64t | 8mm | 23.8mm | 27mm | Galvanised | 69.9m/100kg |
| 143310 | 10mm | 1t | 10mm | 29.8mm | 34.3mm | Galvanised | 43.9m/100kg |
| 143313 | 13mm | 1.7t | 13mm | 38.8mm | 44.6mm | Galvanised | 26.3m/100kg |
| 143316 | 16mm | 2.58t | 16mm | 47.8mm | 54.8mm | Galvanised | 17.5m/100kg |
| 143320 | 20mm | 4.03t | 20mm | 59.2mm | 68.5mm | Galvanised | 11.1m/100kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
