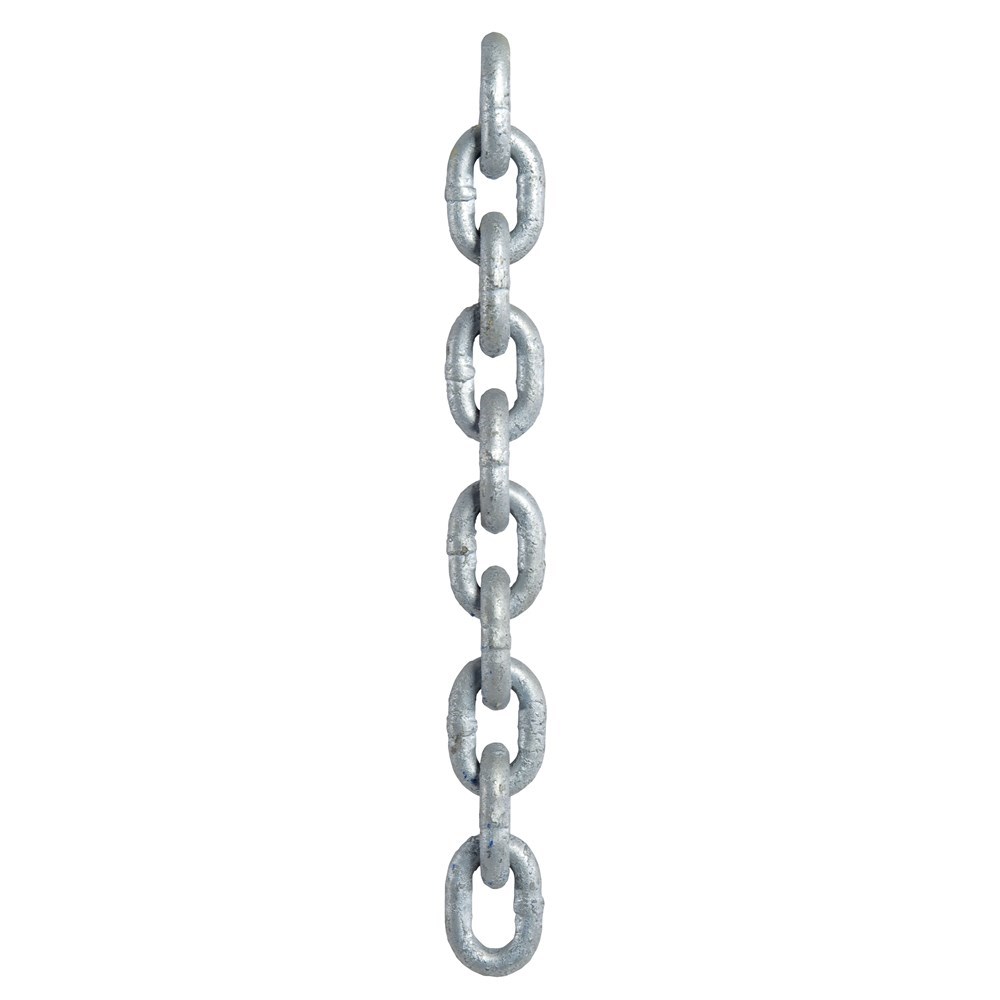

Beaver Grade L Galvanised Short Link Chain 16mm
143316per Each
$48.49 inc GSTTrade $43.64, save $4.85Trade accounts save 10%. Apply with your ABN
| F | 54.8mm |
| R | 47.8mm |
| S | 16mm |
| WLL | 2.58t |
| Finish | Galvanised |
| m/100kg | 17.5m/100kg |
| Nominal Size | 16mm |
About this product
The Beaver Grade L Galvanised Short Link Chain 16mm is a tested commercial chain for mooring and anchor work, not for lifting. At 16mm it is the heaviest end of the range, carrying a working load limit of 2.58t with a 54.8mm outside length and 47.8mm inside width across the link. It is made from Grade 30 low carbon steel and complies with the requirements of AS 2321.
The galvanised finish handles saltwater exposure and general outdoor knock-about, which is why this chain turns up on boat moorings and anchor rodes. Short link means the pitch is tight, so it feeds through gypsies and sits compactly when stowed. Weight works out to 17.5m per 100kg, handy when you are planning a run. If the job involves lifting, step up to a rated lifting grade chain instead.
Common questions
- what is the WLL of 16mm Grade L chain
- The 16mm Beaver Grade L chain has a working load limit of 2.58t. That rating is for mooring and general commercial use, not for lifting.
- can you lift with Grade L chain
- No. Grade L is not recommended for lifting. Use a chain rated for lifting duties instead.
- what is Beaver Grade L chain made from
- It is manufactured from Grade 30 low carbon steel with a galvanised finish, and complies with the requirements of AS 2321.
- how much does 16mm Grade L chain weigh
- It runs at 17.5m per 100kg, so you can work out the weight of the length you need before it lands on site.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 143306 | 6mm | 0.4t | 6.3mm | 18.8mm | 21.6mm | Galvanised | 110m/100kg |
| 143308 | 8mm | 0.64t | 8mm | 23.8mm | 27mm | Galvanised | 69.9m/100kg |
| 143310 | 10mm | 1t | 10mm | 29.8mm | 34.3mm | Galvanised | 43.9m/100kg |
| 143313 | 13mm | 1.7t | 13mm | 38.8mm | 44.6mm | Galvanised | 26.3m/100kg |
| 143316 | 16mm | 2.58t | 16mm | 47.8mm | 54.8mm | Galvanised | 17.5m/100kg |
| 143320 | 20mm | 4.03t | 20mm | 59.2mm | 68.5mm | Galvanised | 11.1m/100kg |
