Beaver Grade L Self Colour Short Link Chain 6mm
143106per Each
$4.54 inc GSTTrade $4.09, save $0.45Trade accounts save 10%. Apply with your ABN
| F | 21.6mm |
| R | 18.8mm |
| S | 6.3mm |
| WLL | 0.40t |
| Finish | Self Colour |
| m/100kg | 116.3m/100kg |
| Nominal Size | 6mm |
About this product

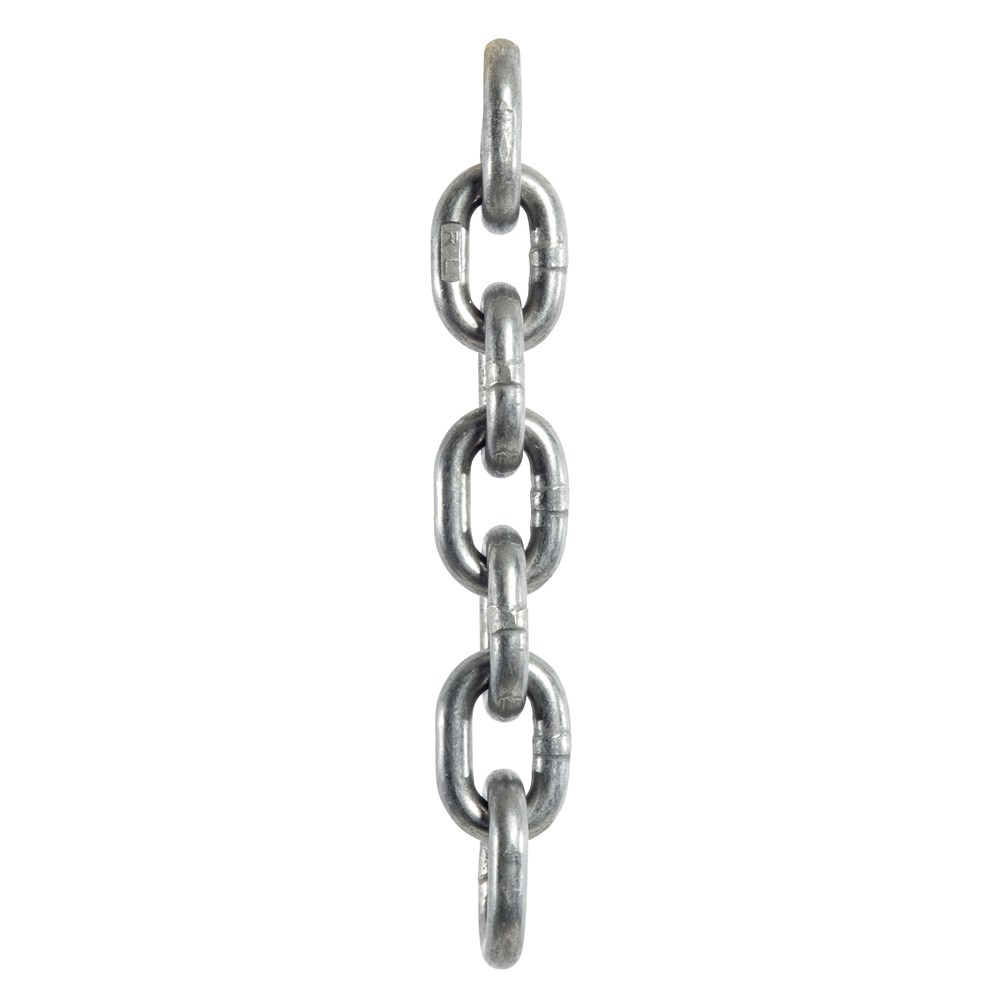

The Beaver Grade L Self Colour Short Link Chain 6mm is a tested commercial chain for mooring, anchor and general marine restraint work. It is not recommended for lifting. This 6mm size is the lighter option in the range, with a working load limit of 0.40t, or 400kg, and roughly 116.3m per 100kg, so it stays easy to handle on smaller boats and fixed moorings.
Made from Grade 30 low carbon steel in a self colour finish, it complies with the requirements of AS 2321. Link dimensions run 6.3mm material thickness with a 21.6mm pitch and 18.8mm inside width, keeping the links tight and less prone to fouling as they run through a roller or fairlead. Check for wear and elongation at the link welds before each season.
Common questions
- what is the WLL of 6mm grade L chain
- The 6mm Beaver Grade L chain has a working load limit of 0.40t, or 400kg. That rating is for restraint and mooring use, not lifting.
- can you use grade L chain for lifting
- No. Grade L chain is not recommended for lifting, it is intended for moorings, anchor chain and other marine applications.
- what steel is beaver grade L chain made from
- Grade 30 low carbon steel with a self colour finish, and it complies with the requirements of AS 2321.
Full specifications
| Product code | Nominal Size | WLL | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 143106 | 6mm | 0.40t | 6.3mm | 18.8mm | 21.6mm | Self Colour | 116.3m/100kg |
| 143110 | 10mm | 1t | 10mm | 29.8mm | 34.3mm | Self Colour | 45m/100kg |
