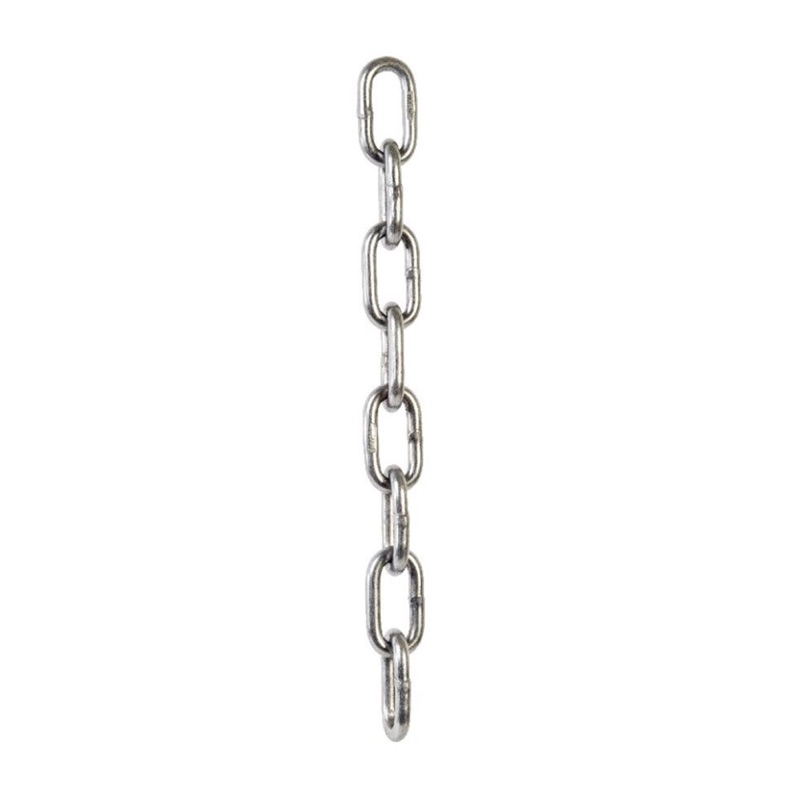

Beaver Trailer Safety Chain 13mm x Self Colour
142013per Each
$19.29 inc GSTTrade $17.36, save $1.93Trade accounts save 10%. Apply with your ABN
| F | 44.5mm |
| R | 51.7mm |
| S | 12mm |
| Finish | Self Colour |
| m/100kg | 29.3m/100kg |
| Designated | 3.5t |
| Nominal Size | 13mm |
About this product
The Beaver Trailer Safety Chain 13mm x Self Colour is the towing chain that keeps a trailer tethered to the tow vehicle if the coupling lets go. It is the heaviest pull in the range, designated 3.5t, so it suits plant trailers, tandem box trailers and site floats running at the top of the light trailer bracket. Designed in accordance with AS/NZS 4177.4.
Nominal size is 13mm with 12mm material, a 44.5mm inside length and 51.7mm outside width, and it runs at 29.3m/100kg. The self colour finish leaves the steel bare, so give it a wipe of oil and keep an eye on surface rust if the trailer lives outdoors. This is a safety chain only. Do not use it for lifting or as a sling.
Common questions
- what size trailer is a 13mm beaver safety chain rated for
- It is designated 3.5t, so it covers trailers up to that mass. It is a safety chain for coupling towed devices, not a lifting chain.
- what standard does beaver trailer safety chain meet
- It is designed in accordance with AS/NZS 4177.4.
- is self colour chain ok for an outdoor trailer
- Self colour is bare steel with no protective coating, so it will surface rust if left out in the weather. A light oil and a regular check will keep it in good order.
Full specifications
| Product code | Nominal Size | Designated | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 142008 | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Self Colour | 93.4m/100kg |
| 142008G | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Galvanised | 91.1m/100kg |
| 142010 | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Self Colour | 61.2m/100kg |
| 142010G | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Galvanised | 59.7m/100kg |
| 142013 | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Self Colour | 29.3m/100kg |
| 142013G | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Galvanised | 34.6m/100kg |
