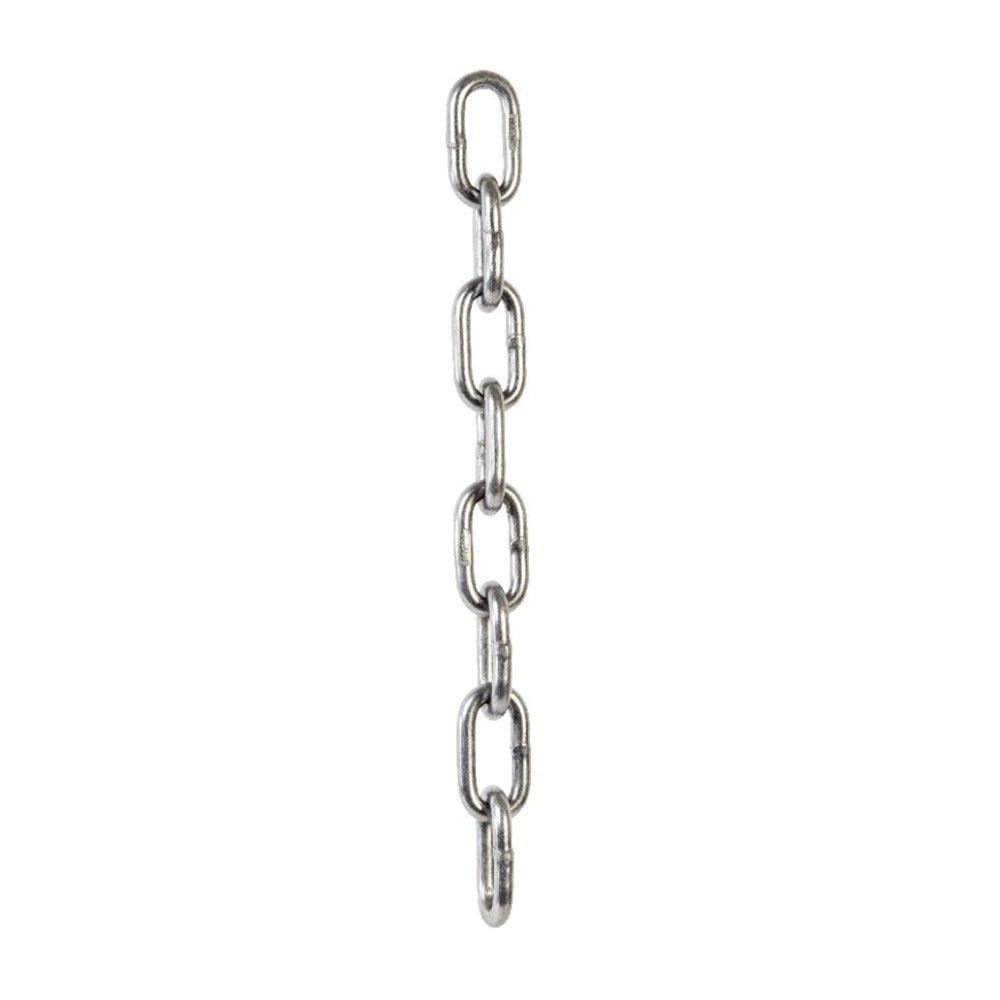

Beaver Trailer Safety Chain 10mm x Self Colour
142010per Each
$12.19 inc GSTTrade $10.97, save $1.22Trade accounts save 10%. Apply with your ABN
| F | 39mm |
| R | 53.1mm |
| S | 9.5mm |
| Finish | Self Colour |
| m/100kg | 61.2m/100kg |
| Designated | 2.5t |
| Nominal Size | 10mm |
About this product
The Beaver Trailer Safety Chain 10mm x Self Colour is the safety chain that links a towed trailer back to the tow vehicle if the coupling lets go. It carries a 2.5t designation and is made in accordance with AS/NZS 4177.4, suited to trailers up to 3.5t. This is the 10mm nominal size, built from 9.5mm material, making it the heavier option in the range for plant trailers and bigger tandem setups.
Link dimensions run 39mm on the F measurement and 53.1mm on the R, and the chain works out at 61.2m/100kg, so you can size a run and know roughly what it will weigh. The self colour finish leaves the steel bare, so keep an eye on it if the trailer lives outdoors. Not to be used for lifting.
Common questions
- what size trailer is a 10mm safety chain rated for
- This chain is designated 2.5t and is intended for trailers up to 3.5t. It is not to be used for lifting.
- does beaver trailer safety chain meet australian standards
- Yes, it is designed in accordance with AS/NZS 4177.4 for coupling towed devices such as trailers.
- what does self colour finish mean on trailer chain
- Self colour means the chain is left as bare steel with no protective coating, so it can surface rust if it stays wet or sits outside.
Full specifications
| Product code | Nominal Size | Designated | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 142008 | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Self Colour | 93.4m/100kg |
| 142008G | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Galvanised | 91.1m/100kg |
| 142010 | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Self Colour | 61.2m/100kg |
| 142010G | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Galvanised | 59.7m/100kg |
| 142013 | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Self Colour | 29.3m/100kg |
| 142013G | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Galvanised | 34.6m/100kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
