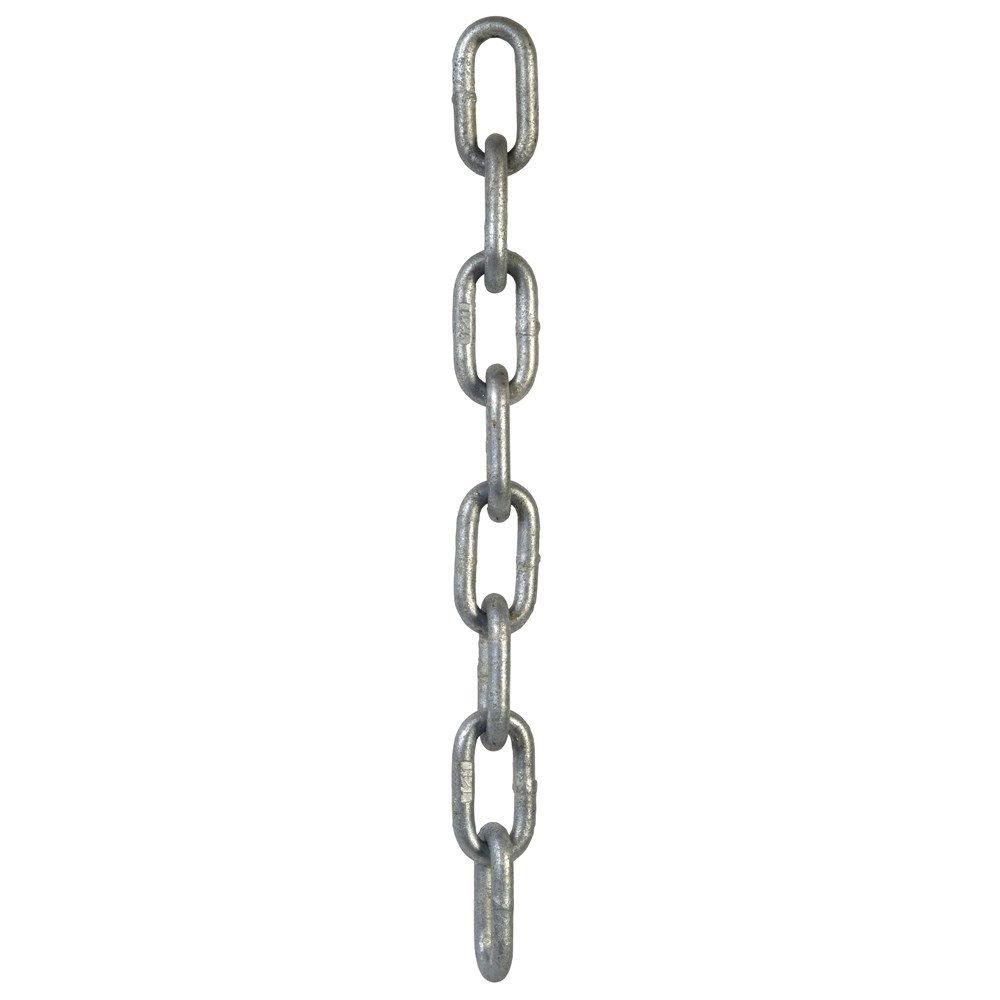

Beaver Trailer Safety Chain 8mm x Galvanised
142008Gper Each
$8.90 inc GSTTrade $8.01, save $0.89Trade accounts save 10%. Apply with your ABN
| F | 31mm |
| R | 43.5mm |
| S | 7.6mm |
| Finish | Galvanised |
| m/100kg | 91.1m/100kg |
| Designated | 1.6t |
| Nominal Size | 8mm |
About this product
The Beaver Trailer Safety Chain 8mm x Galvanised is the safety chain that keeps a towed trailer attached to the tow vehicle if the coupling lets go. This 8mm size carries a designated rating of 1.6t and suits trailers up to 3.5t, which covers most plant trailers, box trailers and site floats running around Perth. It is designed in accordance with AS/NZS 4177.4.
Link dimensions are 31mm pitch, 43.5mm width and 7.6mm material, and it runs out at 91.1m/100kg, so it is a manageable weight to handle on the drawbar. The galvanised finish holds up to weather and road spray better than bare steel, which matters on a chain that lives outside. This is transport chain only. Do not use it for lifting or slinging work.
Common questions
- what size trailer is 8mm safety chain rated for
- This 8mm chain has a designated rating of 1.6t and is intended for trailers up to 3.5t. Anything heavier needs a larger size in the range.
- can trailer safety chain be used for lifting
- No. Beaver Trailer Safety Chain is made for coupling towed devices and is not to be used for lifting.
- is 8mm trailer chain galvanised
- Yes, this variant has a galvanised finish, which helps it cope with weather and road spray better than an uncoated chain.
Full specifications
| Product code | Nominal Size | Designated | S | R | F | Finish | m/100kg |
|---|---|---|---|---|---|---|---|
| 142008 | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Self Colour | 93.4m/100kg |
| 142008G | 8mm | 1.6t | 7.6mm | 43.5mm | 31mm | Galvanised | 91.1m/100kg |
| 142010 | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Self Colour | 61.2m/100kg |
| 142010G | 10mm | 2.5t | 9.5mm | 53.1mm | 39mm | Galvanised | 59.7m/100kg |
| 142013 | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Self Colour | 29.3m/100kg |
| 142013G | 13mm | 3.5t | 12mm | 51.7mm | 44.5mm | Galvanised | 34.6m/100kg |
Questions about this equipment? Send us a message and we’ll check it against the job.
